Osmani Zhila, Islam Muhammad Amirul, Wang Feng, Meira Sabrina Rodrigues, Kulka Marianna
Faculty of Medicine, University of Alberta, Edmonton, Alberta, Canada.
Quantum and Nanotechnologies Research Centre, National Research Council Canada, University of Alberta, 11421 Saskatchewan Drive, Edmonton, Alberta, T6G 2M9, Canada.
Plant Methods. 2024 Oct 30;20(1):165. doi: 10.1186/s13007-024-01289-x.

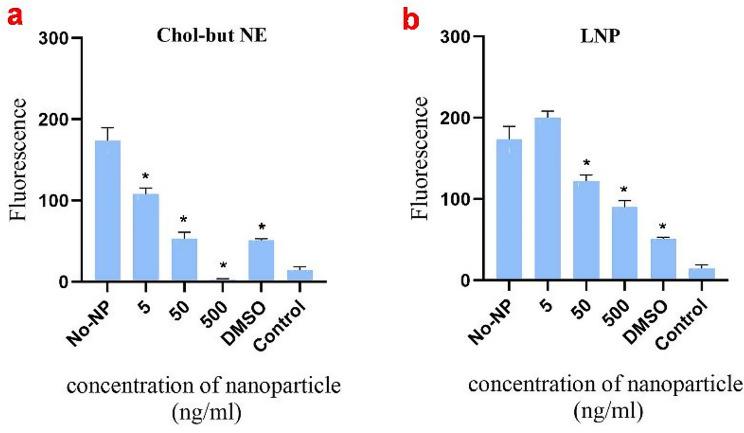

Nanomaterial-mediated plant genetic engineering holds promise for developing new crop cultivars but can be hindered by nanomaterial toxicity to protoplasts. We present a fast, high-throughput method for assessing protoplast viability using resazurin, a non-toxic dye converted to highly fluorescent resorufin during respiration. Protoplasts isolated from hypocotyl canola (Brassica napus L.) were evaluated at varying temperatures (4, 10, 20, 30 ˚C) and time intervals (1-24 h). Optimal conditions for detecting protoplast viability were identified as 20,000 cells incubated with 40 µM resazurin at room temperature for 3 h. The assay was applied to evaluate the cytotoxicity of silver nanospheres, silica nanospheres, cholesteryl-butyrate nanoemulsion, and lipid nanoparticles. The cholesteryl-butyrate nanoemulsion and lipid nanoparticles exhibited toxicity across all tested concentrations (5-500 ng/ml), except at 5 ng/ml. Silver nanospheres were toxic across all tested concentrations (5-500 ng/ml) and sizes (20-100 nm), except for the larger size (100 nm) at 5 ng/ml. Silica nanospheres showed no toxicity at 5 ng/ml across all tested sizes (12-230 nm). Our results highlight that nanoparticle size and concentration significantly impact protoplast toxicity. Overall, the results showed that the resazurin assay is a precise, rapid, and scalable tool for screening nanomaterial cytotoxicity, enabling more accurate evaluations before using nanomaterials in genetic engineering.
纳米材料介导的植物基因工程有望培育出新的作物品种,但可能会受到纳米材料对原生质体毒性的阻碍。我们提出了一种快速、高通量的方法,使用刃天青来评估原生质体的活力,刃天青是一种无毒染料,在呼吸过程中会转化为高荧光的试卤灵。从下胚轴油菜(Brassica napus L.)中分离出的原生质体在不同温度(4、10、20、30˚C)和时间间隔(1 - 24小时)下进行评估。检测原生质体活力的最佳条件确定为20000个细胞在室温下与40µM刃天青孵育3小时。该测定法用于评估银纳米球、二氧化硅纳米球、胆固醇丁酸酯纳米乳液和脂质纳米颗粒的细胞毒性。胆固醇丁酸酯纳米乳液和脂质纳米颗粒在所有测试浓度(5 - 500 ng/ml)下均表现出毒性,但5 ng/ml除外。银纳米球在所有测试浓度(5 - 500 ng/ml)和尺寸(20 - 100 nm)下均有毒性,但5 ng/ml时较大尺寸(100 nm)除外。二氧化硅纳米球在所有测试尺寸(12 - 230 nm)下5 ng/ml时均无毒性。我们的结果突出表明,纳米颗粒的尺寸和浓度对原生质体毒性有显著影响。总体而言,结果表明刃天青测定法是一种精确、快速且可扩展的筛选纳米材料细胞毒性的工具,能够在基因工程中使用纳米材料之前进行更准确的评估。
