通过光交联诱导的单层双面聚酰亚胺制备的荧光稳健光致动器

Fluorescent robust photoactuator via photo-crosslinking induced single-layered janus polyimide.

作者信息

Xue Shuyu, Shi Zhipanxin, Wang Zaiyu, Tan Haozhe, Gao Feng, Zhang Zicong, Ye Ziyue, Nian Shifeng, Han Ting, Zhang Jianbo, Zhao Zheng, Tang Ben Zhong, Zhang Qiuyu

机构信息

School of Chemistry and Chemical Engineering, Key Laboratory of Special Functional and Smart Polymer Materials of Ministry of Industry and Information Technology, Northwestern Polytechnical University, Xi'an, Shaanxi, China.

School of Chemistry and Chemical Engineering, Key Laboratory of Material Physics and Chemistry under Extraordinary Conditions of Ministry of Education, Northwestern Polytechnical University, Xi'an, Shaanxi, China.

出版信息

Nat Commun. 2024 Nov 21;15(1):10084. doi: 10.1038/s41467-024-54386-9.

Abstract

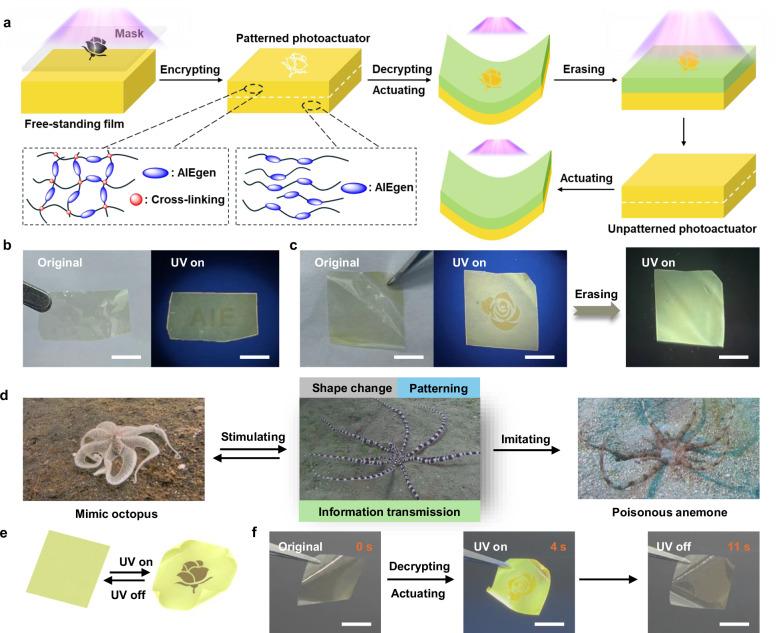

Advanced smart polymer materials with the ability of reversible deformation under external stimuli hold great potential in robotics, soft machines, and flexible electronics. However, the complexity and low efficiency for fabricating actuators along with their limited functionality hinder further progress. Here an efficient and mild catalyst-free thiol-yne click polymerization was developed to fabricate photosensitive polyimide (PI) films. Then the fluorescent robust photoactuators with single-layered janus structure were directly obtained via UV assisted photo-crosslinking of the films, exhibiting reversible response driven by a pronounced mismatch in expansion between the front and back sides of the films. Achieving selective, non-uniform spatial distribution within the PI films, rapid and reversible complex morphing of the actuators, along with the capabilities for encrypting, reading, and erasing fluorescent information-all through the use of a single UV light source-becomes straightforward. The robust mechanical property and driving ability of these actuators enable the conversion of light energy into obvious motion even under heavy loads and the leaping through the storage and release of energy, ensuring their potential for practical applications that require durability and reliability.

摘要

具有在外部刺激下可逆变形能力的先进智能聚合物材料在机器人技术、软机器和柔性电子领域具有巨大潜力。然而,制造致动器的复杂性和低效率以及其有限的功能阻碍了进一步的发展。在此,开发了一种高效且温和的无催化剂硫醇-炔点击聚合反应来制备光敏聚酰亚胺(PI)薄膜。然后,通过薄膜的紫外光辅助光交联直接获得具有单层双面结构的荧光坚固光致动器,其表现出由薄膜前后侧膨胀的明显不匹配驱动的可逆响应。通过使用单个紫外光源,在PI薄膜内实现选择性、非均匀的空间分布、致动器快速且可逆的复杂变形,以及加密、读取和擦除荧光信息的能力变得轻而易举。这些致动器强大的机械性能和驱动能力使得即使在重负载下也能将光能转化为明显的运动,并通过能量的存储和释放实现跳跃,确保了它们在需要耐用性和可靠性的实际应用中的潜力。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/fca1/11582805/a3fa99145879/41467_2024_54386_Fig1_HTML.jpg
