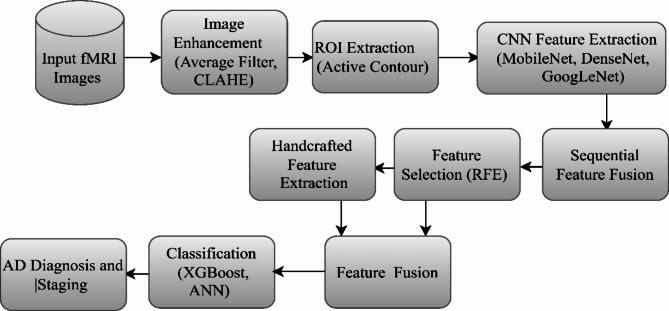

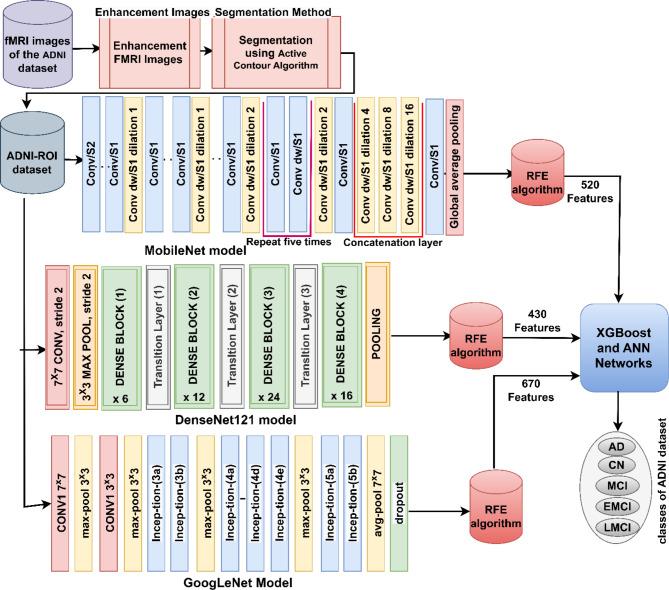

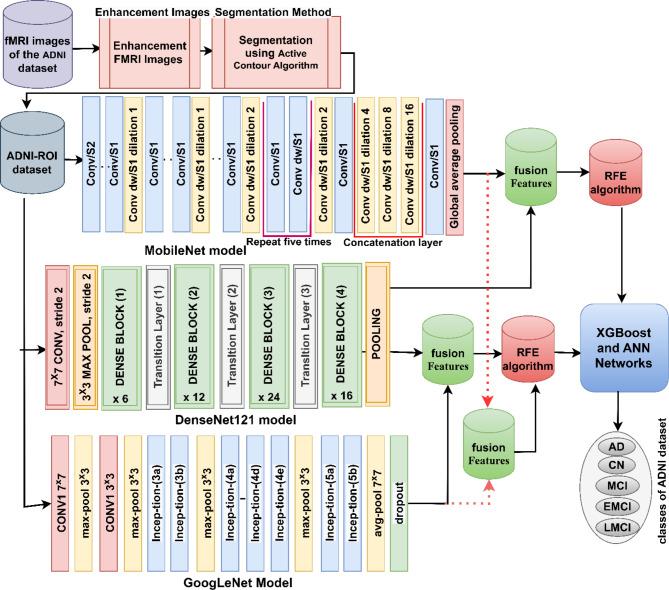

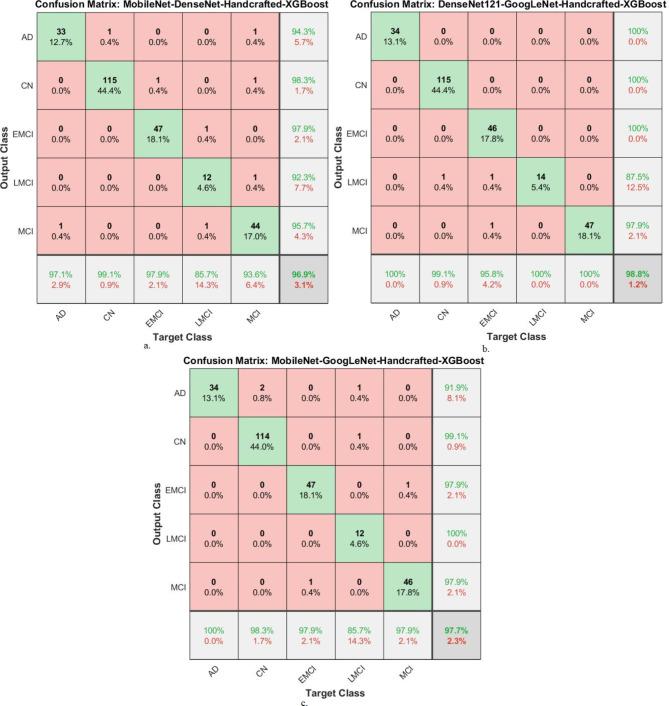

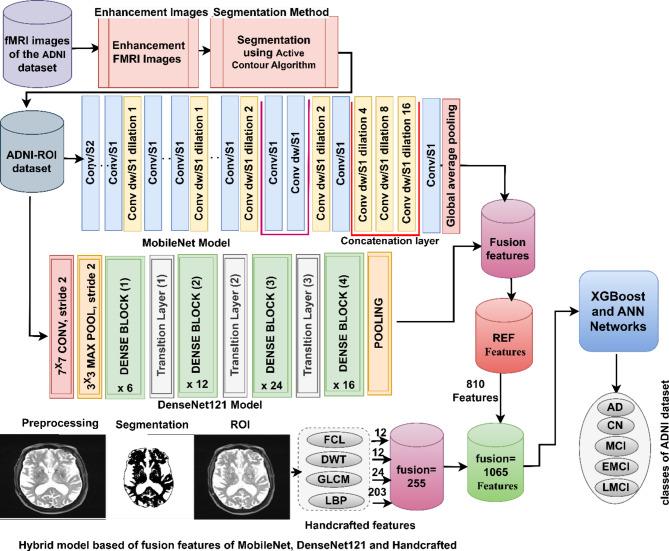

Alzheimer's disease (AD) is a brain disorder that causes memory loss and behavioral and thinking problems. The symptoms of Alzheimer's are similar throughout its development stages, which makes it difficult to diagnose manually. Therefore, artificial intelligence (AI) techniques address the limitations of manual diagnosis. In this study, the images were enhanced and the active contour algorithm (ACA) was used to extract regions of interest (ROI) such as soft tissue and white matter. Strategies have been developed to diagnose AD and differentiate its stages. The first strategy is using XGBoost and ANN networks with the features of MobileNet, DenseNet, and GoogLeNet models. The second strategy is by XGBoost and ANN networks with combined features of MobileNet-DenseNet121, DenseNet121-GoogLeNet and MobileNet-GoogLeNet. The third strategy combines XGBoost and ANN networks with combined features of MobileNet-DenseNet121-Handcrafted, DenseNet121-GoogLeNet-Handcrafted, and MobileNet-GoogLeNet-Handcrafted leading to improved accuracy of the strategies and improved efficiency. XGBoost with hybrid features of DenseNet-GoogLeNet-Handcrafted achieved an AUC of 98.82%, accuracy of 98.8%, sensitivity of 98.9%, accuracy of 97.08%, and specificity of 99.5%.
