Development of Inductive Current Transformer 400/5/1 of Class 0.2S for Frequency Range 50 Hz-5 kHz.

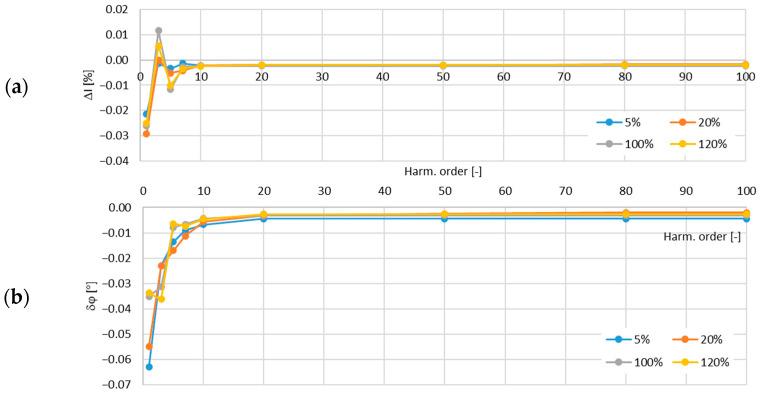

This paper is devoted to the development of a window-type inductive current transformer (iCT) with a rated primary current equal to 400 A and two secondary windings with rated currents of 5 A and 1 A. Its novelty concerns the presentation of this process in the case of an iCT with a 0.2S accuracy class ensured not only for a sinusoidal current of a frequency of 50 Hz but also for the transformation of distorted current in the harmonic frequency range from 50 Hz to 5 kHz. The maximum permissible values of the current error and phase displacement are equal to ±0.2% and ±0.2°, respectively, and are the same as the limiting values for a 50 Hz sinusoidal current of a rated RMS value. In the design process, three materials were considered for the construction of the developed iCT 400/5/1: electrical steel, permalloy and nanocrystalline (Nano). Their wideband properties were analyzed and the choice of the Nano magnetic core was justified with the already-available data in the literature on the basis of elaborated design assumptions. In order to specify its particular type, four magnetic cores with different initial magnetic permeabilities were tested. It was demonstrated that, as far as more favorable magnetic properties also involved increased active power losses in the magnetic core, it was not an appropriate choice for the construction of the iCT, especially for the transformation of the current with a main frequency equal to 50 Hz or 60 Hz.
