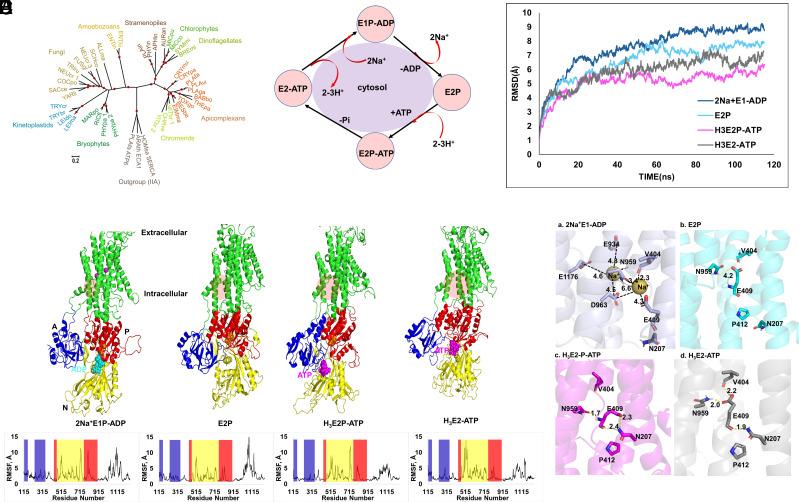

Among new antimalarials discovered over the past decade are multiple chemical scaffolds that target P-type ATPase (ATP4). This essential protein is a Na pump responsible for the maintenance of Na homeostasis. ATP4 belongs to the type two-dimensional (2D) subfamily of P-type ATPases, for which no structures have been determined. To gain better insight into the structure/function relationship of this validated drug target, we generated a homology model of ATP4 based on sarco/endoplasmic reticulum Ca ATPase, a P2A-type ATPase, and refined the model using molecular dynamics in its explicit membrane environment. This model predicted several residues in ATP4 critical for its function, as well as those that impart resistance to various ATP4 inhibitors. To validate our model, we developed a genetic system involving merodiploid states of ATP4 in which the endogenous gene was conditionally expressed, and the second allele was mutated to assess its effect on the parasite. Our model predicted residues involved in Na coordination as well as the phosphorylation cycle of ATP4. Phenotypic characterization of these mutants involved assessment of parasite growth, localization of mutated ATP4, response to treatment with known ATP4 inhibitors, and evaluation of the downstream consequences of Na influx. Our results were consistent with modeled predictions of the essentiality of the critical residues. Additionally, our approach confirmed the phenotypic consequences of resistance-associated mutations as well as a potential structural basis for the fitness cost associated with some mutations. Taken together, our approach provides a means to explore the structure/function relationship of essential genes in haploid organisms.
