Data-Efficient Bone Segmentation Using Feature Pyramid- Based SegFormer.

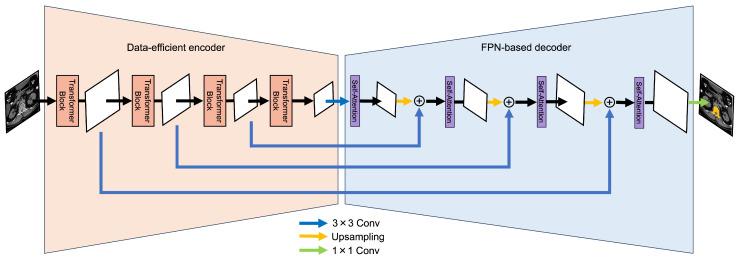

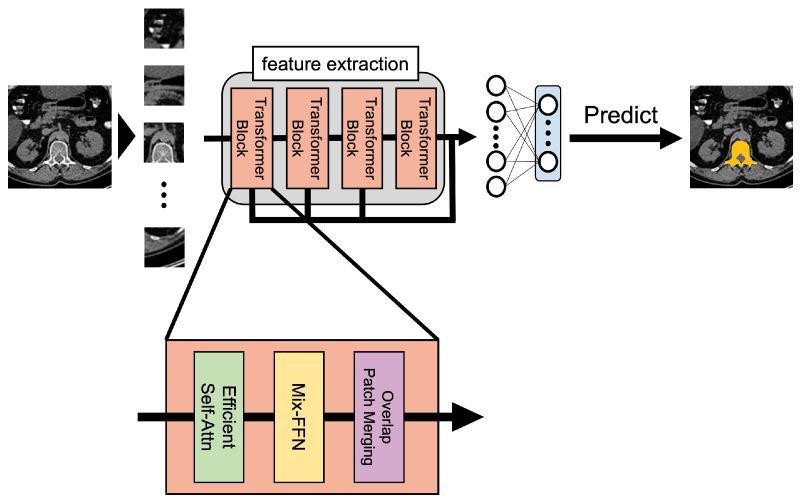

The semantic segmentation of bone structures demands pixel-level classification accuracy to create reliable bone models for diagnosis. While Convolutional Neural Networks (CNNs) are commonly used for segmentation, they often struggle with complex shapes due to their focus on texture features and limited ability to incorporate positional information. As orthopedic surgery increasingly requires precise automatic diagnosis, we explored SegFormer, an enhanced Vision Transformer model that better handles spatial awareness in segmentation tasks. However, SegFormer's effectiveness is typically limited by its need for extensive training data, which is particularly challenging in medical imaging, where obtaining labeled ground truths (GTs) is a costly and resource-intensive process. In this paper, we propose two models and their combination to enable accurate feature extraction from smaller datasets by improving SegFormer. Specifically, these include the data-efficient model, which deepens the hierarchical encoder by adding convolution layers to transformer blocks and increases feature map resolution within transformer blocks, and the FPN-based model, which enhances the decoder through a Feature Pyramid Network (FPN) and attention mechanisms. Testing our model on spine images from the Cancer Imaging Archive and our own hand and wrist dataset, ablation studies confirmed that our modifications outperform the original SegFormer, U-Net, and Mask2Former. These enhancements enable better image feature extraction and more precise object contour detection, which is particularly beneficial for medical imaging applications with limited training data.
