Jaskólski Włodzimierz
Institute of Physics, Faculty of Physics, Astronomy and Informatics, Nicolaus Copernicus University in Toruń, Grudziądzka 5, 87-100 Toruń, Poland.
Materials (Basel). 2025 Mar 28;18(7):1521. doi: 10.3390/ma18071521.

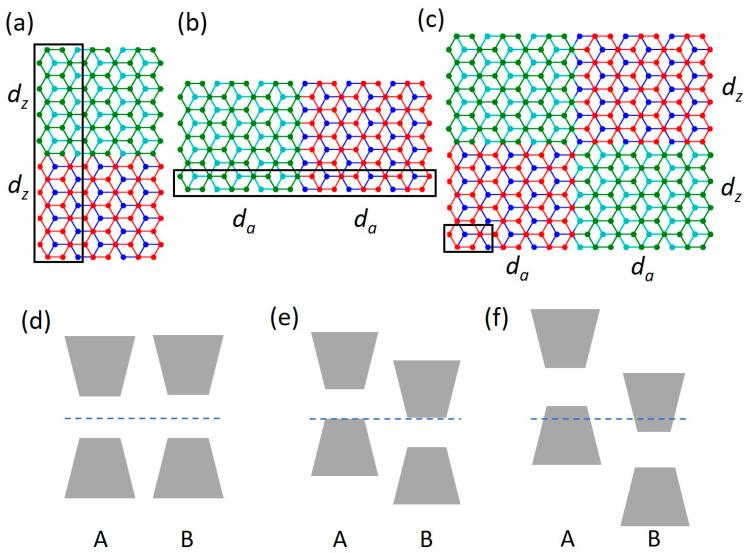

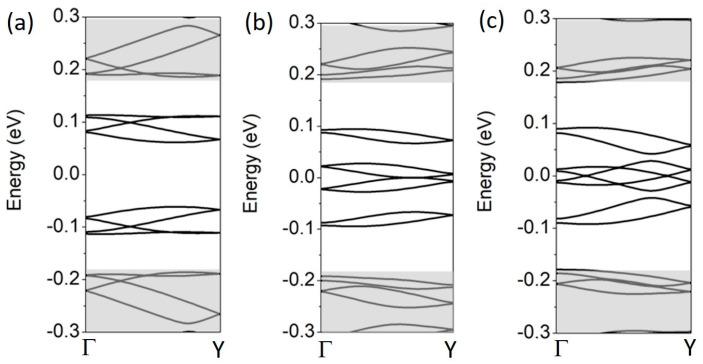

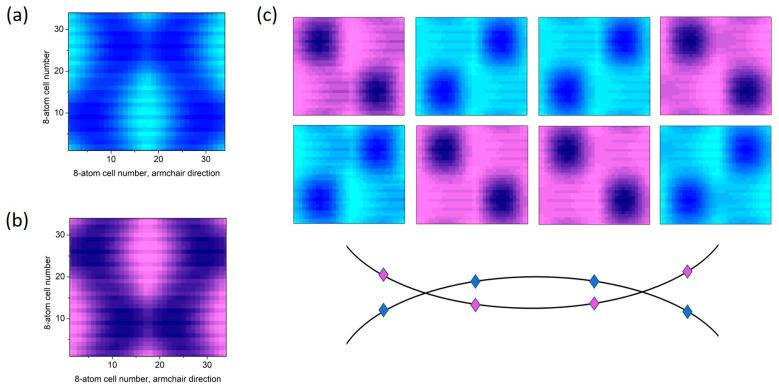

An electric field applied to the Bernal-stacked bilayer graphene opens an energy gap; its reversal in some regions creates domain walls and leads to the appearance of one-dimensional chiral gapless states localized at the walls. Here, we investigate the energy structure of bilayer graphene with superlattice potential defined by an external electric field. The calculations are performed within an atomistic π-electron tight-binding approximation. We study one-dimensional and two-dimensional superlattices formed by arrays of electric-field walls in the zigzag and armchair directions and investigate different field polarizations. Chiral gapless states discretize due to the superlattice potential and transform into minibands in the energy gap. As the main result, we show that the minibands can cross at the Fermi level for some field polarizations. This leads to a new kind of two-dimensional gapless states of topological character that form Dirac-like cones at the crossing points. This also has application potential: changing the field polarization can close the energy gap and change the character of the superlattice from semiconducting to metallic.
施加于伯纳尔堆叠双层石墨烯的电场会打开一个能隙;在某些区域电场方向的反转会产生畴壁,并导致出现在壁上的一维手性无隙态。在此,我们研究由外部电场定义的具有超晶格势的双层石墨烯的能量结构。计算是在原子π电子紧束缚近似下进行的。我们研究由之字形和扶手椅形方向的电场壁阵列形成的一维和二维超晶格,并研究不同的场极化。由于超晶格势,手性无隙态离散化并在能隙中转变为微带。作为主要结果,我们表明对于某些场极化,微带可以在费米能级处交叉。这导致了一种新型的二维拓扑无隙态,在交叉点处形成类狄拉克锥。这也具有应用潜力:改变场极化可以关闭能隙并将超晶格的性质从半导体变为金属。
