BACKGROUND

The Greulich and Pyle (GP) method is the most commonly used manual bone age assessment method but it is associated with interrater variability. The BoneXpert method is fully automated, eliminates interrater variability and has been validated for use in various populations.

OBJECTIVES

To compare the manual GP method with the automated BoneXpert method in performing bone age assessment of children with various paediatric endocrinology diagnoses.

METHOD

Three manual readers performed manual bone age assessment, and BoneXpert software performed automated bone age assessment on 260 left hand-wrist radiographs. Images where the average of three manual readers (Manual BA) deviated from BoneXpert BA by > 1.5 years, were re-read by an external reader, producing a Reference BA. Manual BA was compared to Carpal BA that was produced by the software. A composite bone age (Comp BA) for the software was defined to estimate the weighting on carpal and tubular bones to achieve the best agreement with Manual BA.

RESULTS

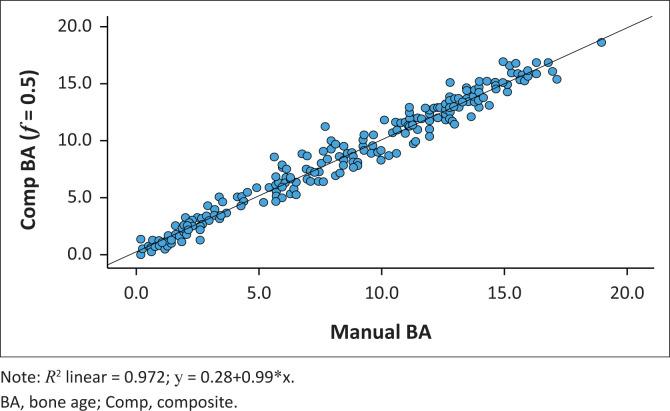

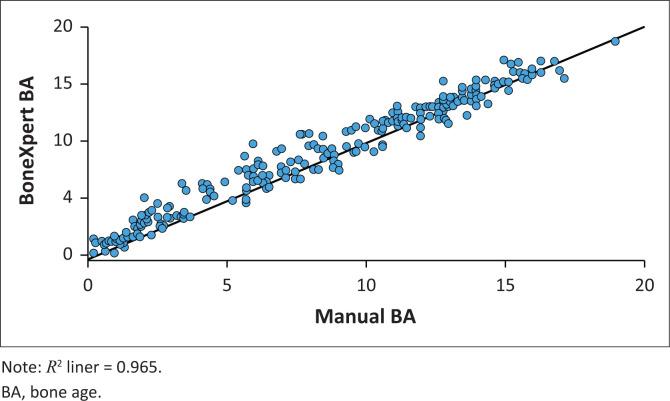

The interclass correlation (ICC) between each manual reader was > 0.9, indicating a high positive correlation. The ICC between Manual BA and BoneXpert BA was 0.982. The Comp BA for BoneXpert that would achieve the best fit with Manual BA, places a 50% weighting on Carpal BA and 50% weighting on Tubular BA.

CONCLUSION

The BoneXpert method is efficient, well-validated and shows a positive correlation with the manual GP method. An estimated weightage of 50% to carpal bones and 50% to tubular bones resulted in an automated Comp BA with the best agreement with Manual BA.

CONTRIBUTION

This original research article compares manual and automated bone age assessment methods to evaluate the use of artificial intelligence tools in the South African context.
