Liu Jingxiong, Li Genlian, Zhao Tianmiao, Gong Zhiqiang, Li Feng, Xie Wen, Zhao Songze, Jiang Shaohua
Hunan Provincial Key Laboratory of Xiangnan Rare-Precious Metals Compounds and Applications, School of Chemistry and Environmental Science, Xiangnan University, Chenzhou 423000, China.
Jiangsu Co-Innovation Center of Efficient Processing and Utilization of Forest Resources, International Innovation Center for Forest Chemicals and Materials, College of Materials Science and Engineering, Nanjing Forestry University, Nanjing 210037, China.
Materials (Basel). 2025 Apr 23;18(9):1910. doi: 10.3390/ma18091910.

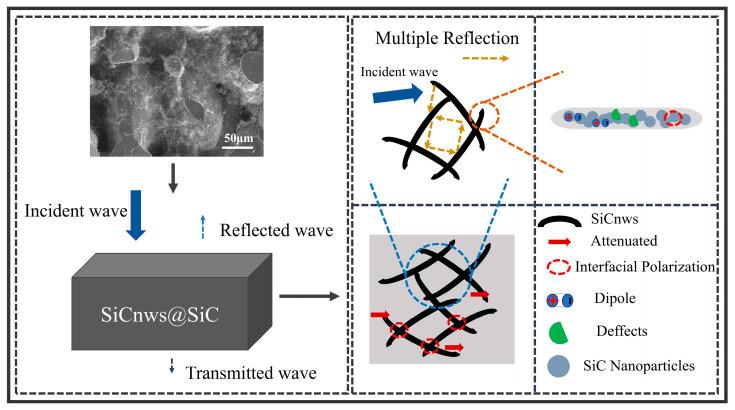

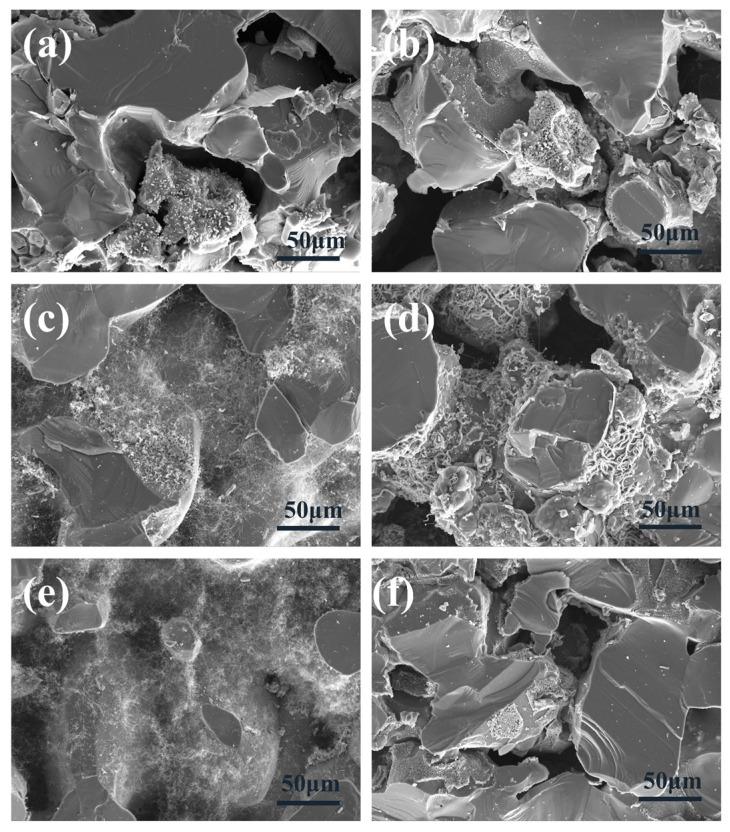

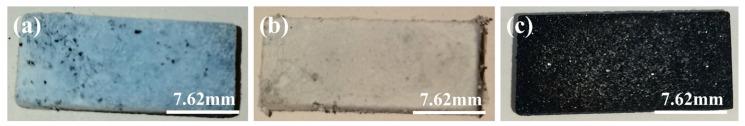

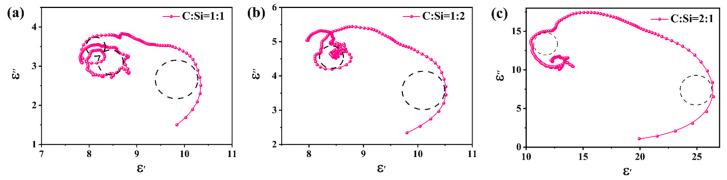

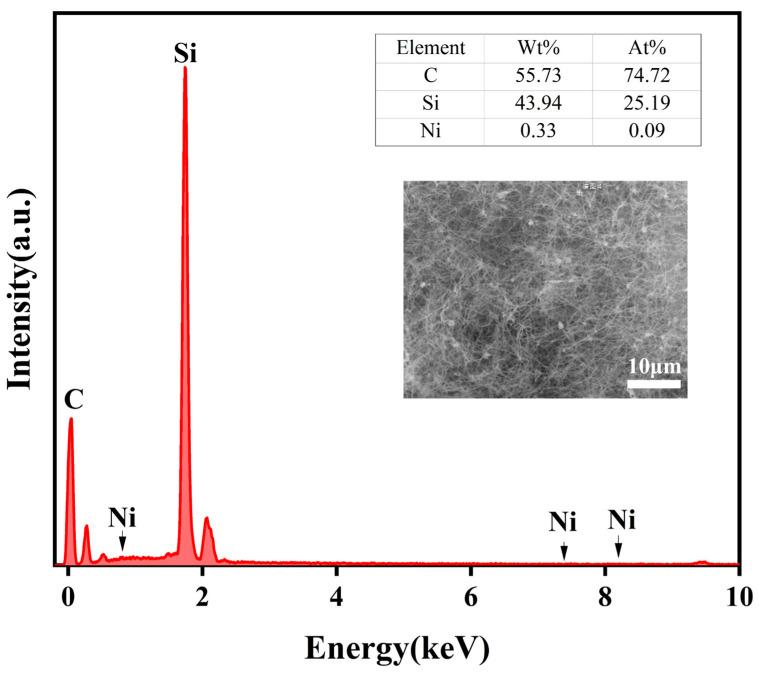

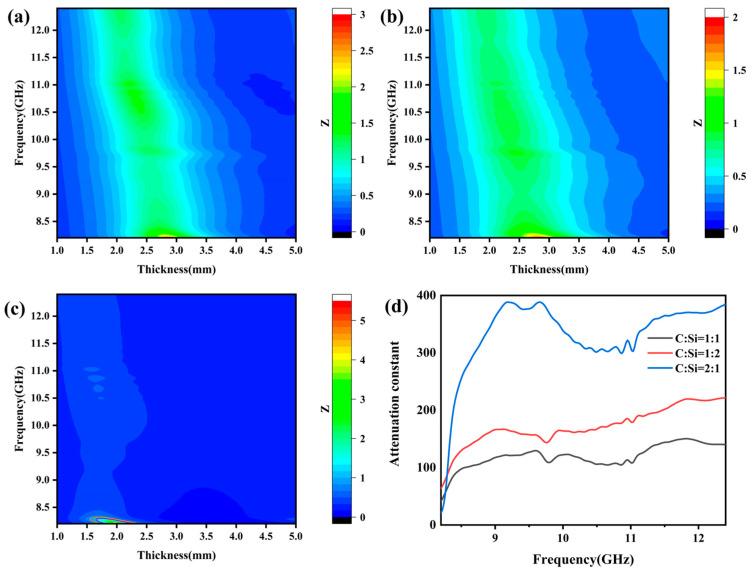

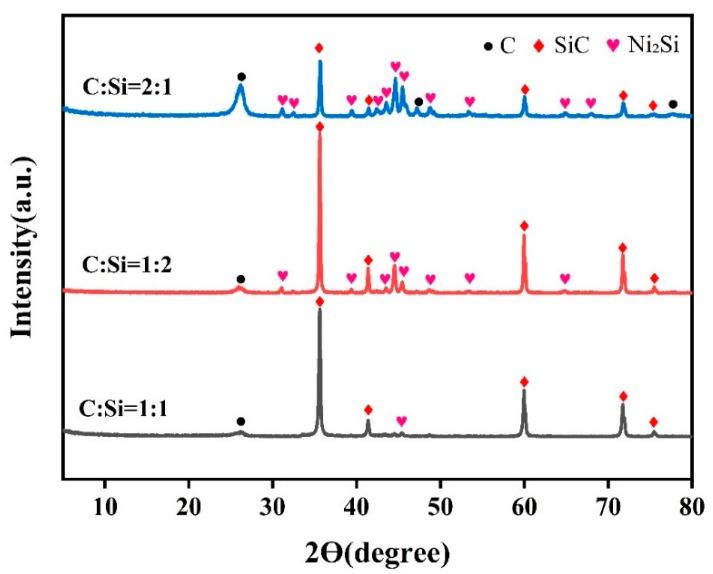

In situ-grown SiC nanowires (SiCnws) on SiC porous material (SiCnws@SiC) were prepared using sol-gel and carbothermal reduction methods, which substantially improves the electromagnetic wave absorption property of composite material. The crystallinity and purity of SiCnws are the best when the sintering temperature is 1600 °C. When the ratio of the carbon source (C) to the silicon source (Si) is 1:1, SiCnws@SiC composite exhibits excellent electromagnetic wave absorption performance, the minimum reflection loss is -56.95 dB at a thickness of 2.30 mm, and the effective absorption bandwidth covers 1.85 GHz. The optimal effective absorption bandwidth is 4.01 GHz when the thickness is 2.59 mm. The enhancement of the electromagnetic wave absorption performance of SiCnws is mainly attributed to the increase in the heterogeneous interface and multiple reflection and scattering caused by the network structure, increasing dielectric loss and conduction loss. In addition, defects could occur during the growth of SiCnws, which could become the center of dipole polarization and increase the polarization loss of composite materials. Therefore, in situ growth of SiCnws on SiC porous ceramics is a promising method to improve electromagnetic wave absorption.
采用溶胶 - 凝胶法和碳热还原法在碳化硅多孔材料(SiCnws@SiC)上原位生长碳化硅纳米线(SiCnws),这显著提高了复合材料的电磁波吸收性能。当烧结温度为1600℃时,SiCnws的结晶度和纯度最佳。当碳源(C)与硅源(Si)的比例为1:1时,SiCnws@SiC复合材料表现出优异的电磁波吸收性能,在厚度为2.30 mm时最小反射损耗为 -56.95 dB,有效吸收带宽覆盖1.85 GHz。当厚度为2.59 mm时,最佳有效吸收带宽为4.01 GHz。SiCnws电磁波吸收性能的增强主要归因于异质界面的增加以及网络结构引起的多次反射和散射,增加了介电损耗和传导损耗。此外,SiCnws生长过程中可能会出现缺陷,这些缺陷可能成为偶极极化的中心并增加复合材料的极化损耗。因此,在碳化硅多孔陶瓷上原位生长SiCnws是一种很有前景的提高电磁波吸收的方法。
