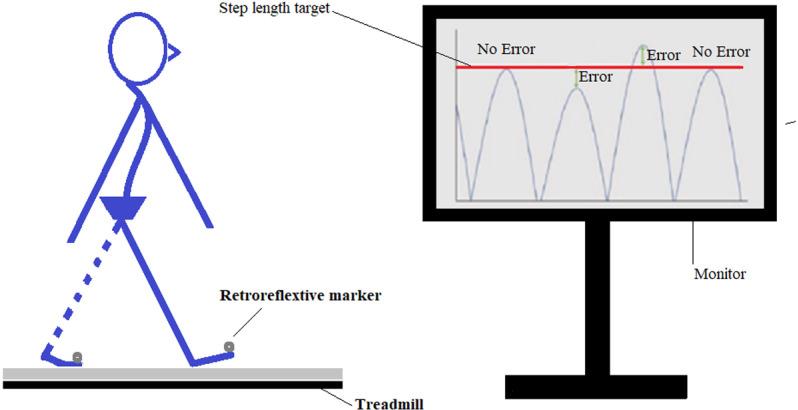

Diabetes Mellitus in older adults reduces the accuracy of foot landing adjustments and increases the risk of falling. This study investigated whether targeted visual feedback enhances the accuracy of the foot landing in older participants with diabetes. Forty-eight volunteers in three groups of young, healthy older and older adults with diabetes participated. During treadmill walking, Nexus Vicon software streamed real-time orientation data of two markers on the first toes into MATLAB scripts through a Visual3D server. The system visualised real-meaningful step length or minimum toe clearance (MTC) in each step on a monitor in front of a treadmill at eye level. Participants responded to four subject-specific step-length (±10% mean baseline step length) or MTC targets (3.5 and 5.5 cm higher than the mean baseline MTC). One target was displayed every 10 steps and removed after 10 steps when participants walked without seeing any target, then a new or the same target appeared and stayed on for another 10 steps. Tasks were increasing or decreasing baseline step length or increasing the baseline MTC in response to virtual targets. The accuracy (absolute error) of each step adjustment in each 10-step block with a target was calculated. The mean accuracy of Step 1 and the mean accuracy of Steps 2-10 were measured and compared within and between groups using three-way ANOVA tests. Errors significantly differed between conditions (Step 1 and Steps 2-10) in all groups. All groups showed reduced errors in Step 1 during Steps 2-10. Among groups, the group with diabetes presented the greatest errors in Step 1 and Steps 2-10. These findings suggest that meaningful visual feedback about spatial gait parameters (step length, MTC) can improve foot-landing accuracy in older participants with diabetes, highlighting its potential as a training tool to prevent falls in this high-risk population.
