Cellulose Nanofibril-Based Triboelectric Nanogenerators Enhanced by Isoreticular Metal-Organic Frameworks for Long-Term Motion Monitoring.

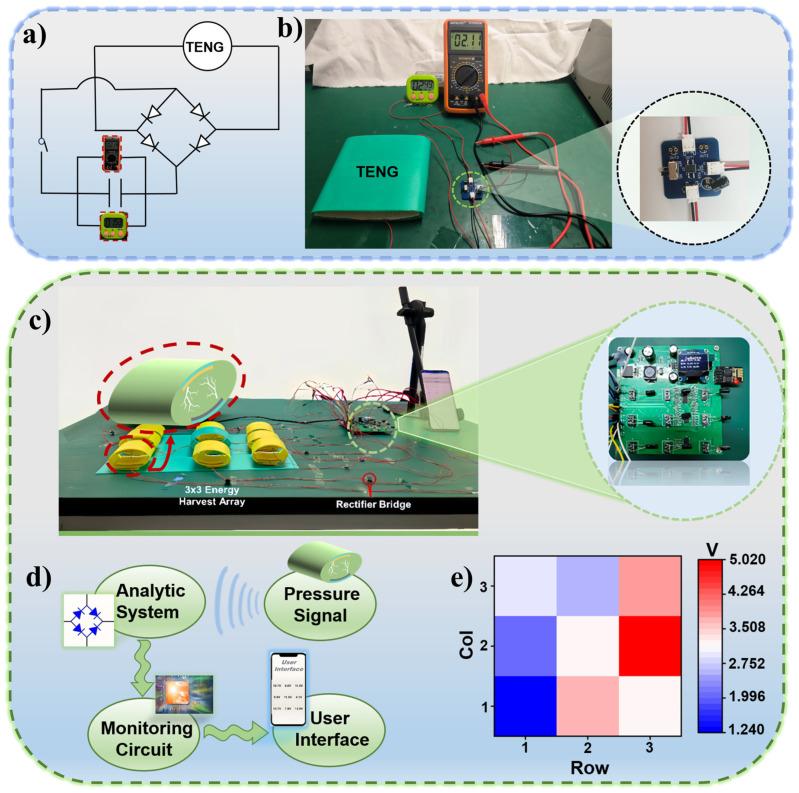

Cellulose nanofibril (CNF) is a sort of novel nanomaterial directly extracted from plant resources, inheriting the advantages of cellulose as a cheap, green and renewable material for the development of new-generation eco-friendly electronics. In recent years, CNF-based triboelectric nanogenerator (TENG) has attracted increasing research interests, as the unique chemical, morphological, and electrical properties of CNF render the device with considerable flexibility, mechanical strength, and triboelectric output. In this study, we explore the use of isoreticular metal-organic frameworks (IRMOF) as functional filler to improve the performance of CNF based TENGs. Two types of IRMOFs that own the same network topology, namely IRMOF-1 and its aminated version IRMOF-3, are embedded with CNF to fabricated TENGs; their contribution to triboelectric output enhancement, including the roughness effect induced by large particles as well as the charge induction effect arisen from -NH groups, are discussed. The performance-enhanced CNF-based TENG with 0.6 wt.% of IRMOF-3 is utilized to harvest mechanical energy from human activities and charge commercial capacitors, from which the electrical energy is sufficient to light up light-emitting diodes (LEDs) and drive low-power electronic devices. In addition, a locomotor analysis system is established by assembling the above TENGs and capacitors into a 3 × 3 sensing array, which allowed signal extraction from each sensing unit to display a motion distribution map. These results demonstrate the great potential of CNF/IRMOF-based TENGs for development of self-powered sensing devices for long-term motion monitoring.
