Bunel Thomas, Lumeau Julien, Moreau Antonin, Fernandez Arnaud, Llopis Olivier, Bourcier Germain, Perego Auro M, Conforti Matteo, Mussot Arnaud
University of Lille, CNRS, UMR 8523 PhLAM Physique des Lasers Atomes et Molecules, Lille, France.
Aix Marseille Univ, CNRS, Centrale Marseille, Institut Fresnel, Marseille, France.
Nat Commun. 2025 Jun 3;16(1):5160. doi: 10.1038/s41467-025-60261-y.

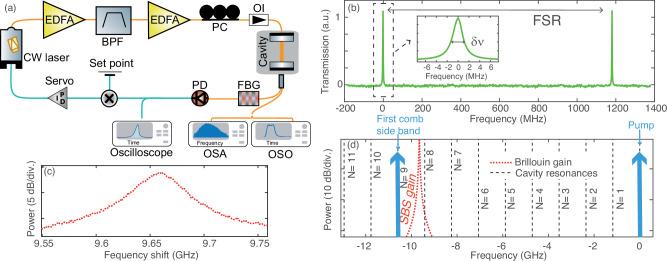

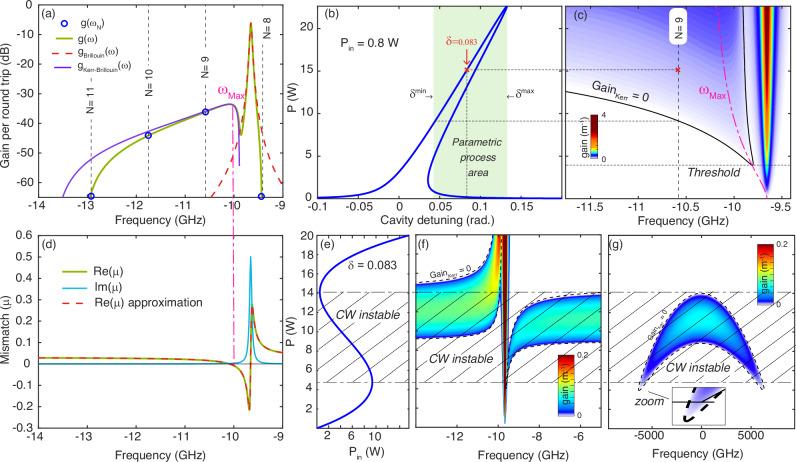

We report the generation of a stable, broadband frequency comb, covering more than 10 THz, using a dispersion fiber Fabry-Perot resonator with a high quality factor of 69 millions. This platform ensures robust and easy integration into photonic devices via FC/PC connectors, and feature quality factors comparable to those of microresonators. We demonstrate a passive mode-locking phenomenon induced by the coherent interaction of the Kerr effect and Brillouin scattering, which generates a frequency comb with a repetition rate exceeding the free spectral range of the cavity. This parametric process modulates the continuous wave (CW) pump and can then be transformed into a train of almost square-wave pulses thanks to the generation of switching waves. Our results are supported by advanced numerical simulations, and theoretical derivations that include the Brillouin effect in the Fabry-Perot configuration. The very high stable feature of this optical frequency comb lying in the GHz range is critical to several applications ranging from telecommunication, spectroscopy and advanced microwave generation.
我们报告了一种稳定的宽带频率梳的产生,其覆盖超过10太赫兹,使用了品质因数高达6900万的色散光纤法布里 - 珀罗谐振器。该平台确保通过FC/PC连接器稳健且易于集成到光子器件中,并且具有与微谐振器相当的品质因数。我们展示了由克尔效应和布里渊散射的相干相互作用引起的被动锁模现象,该现象产生了重复率超过腔自由光谱范围的频率梳。这种参量过程调制连续波(CW)泵浦,然后由于开关波的产生可以转变为一列几乎方波的脉冲。我们的结果得到了先进的数值模拟以及包括法布里 - 珀罗配置中布里渊效应的理论推导的支持。这种处于吉赫兹范围内的光学频率梳的非常高的稳定性对于从电信、光谱学和先进微波产生等多种应用至关重要。
