Bobrow Taylor L, Golhar Mayank, Arayakarnkul Suchapa, Song Anthony A, Ngamruengphong Saowanee, Durr Nicholas J
Department of Biomedical Engineering Johns Hopkins University, Baltimore, MD 21218.
Division of Gastroenterology and Hepatology Johns Hopkins Hospital Baltimore, MD 21287.
ArXiv. 2025 May 15:arXiv:2505.10492v1.

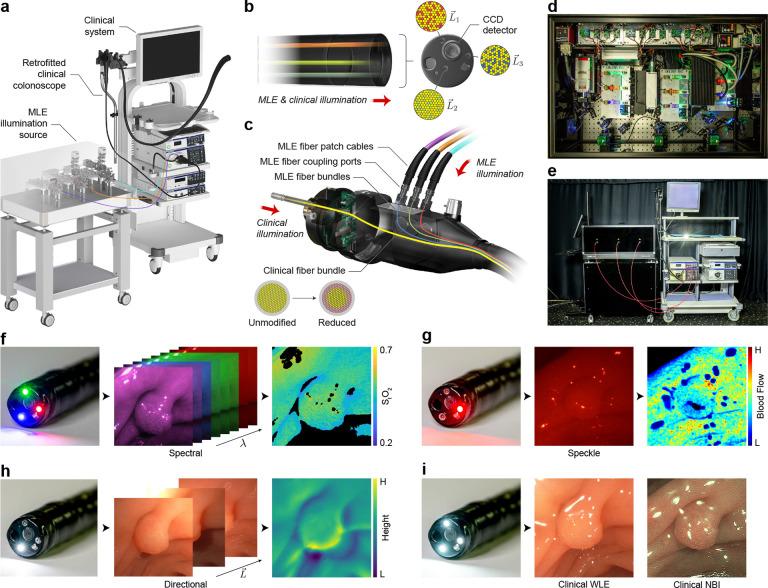

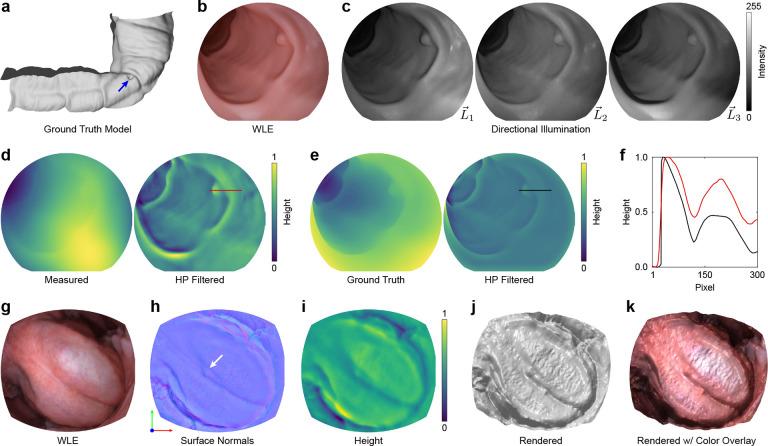

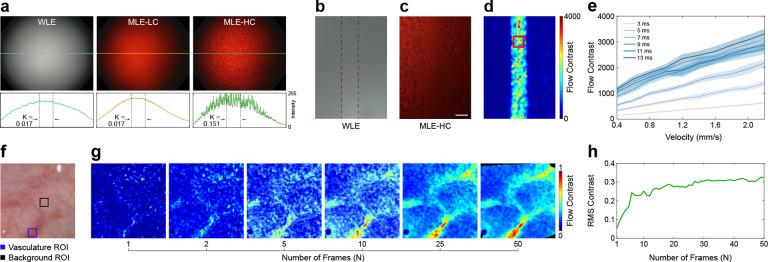

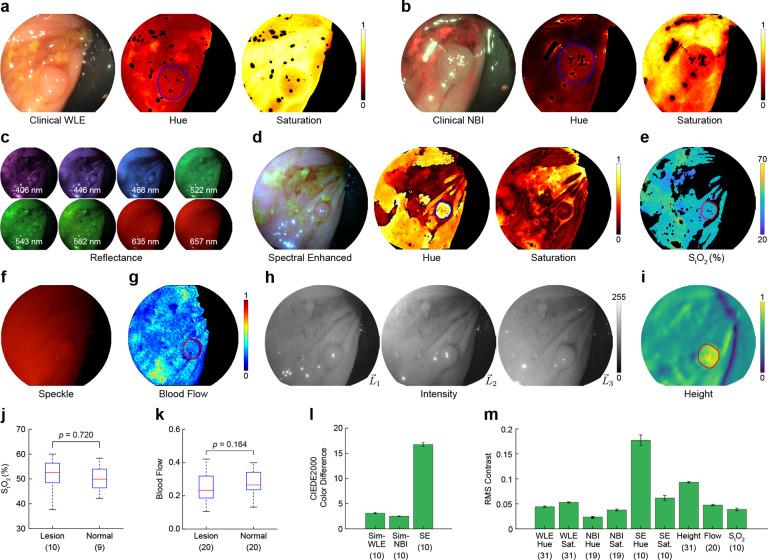

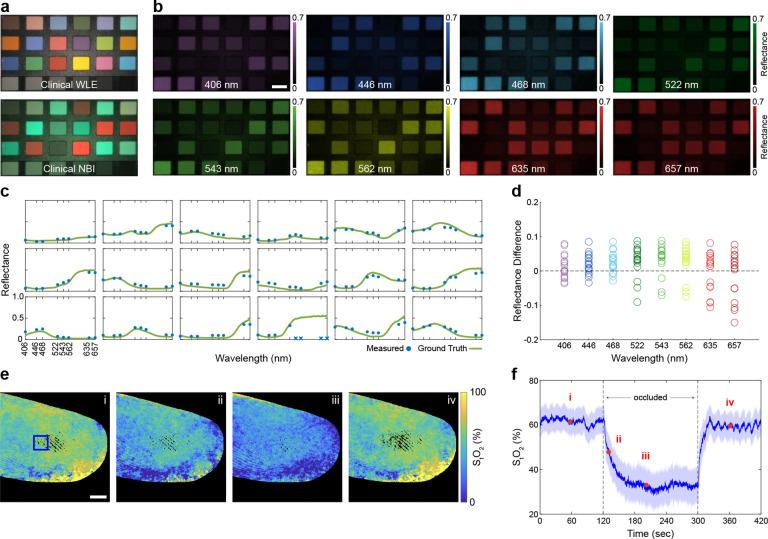

White light endoscopy is the clinical gold standard for detecting diseases in the gastrointestinal tract. Most applications involve identifying visual abnormalities in tissue color, texture, and shape. Unfortunately, the contrast of these features is often subtle, causing many clinically relevant cases to go undetected. To overcome this challenge, we introduce Multi-contrast Laser Endoscopy (MLE): a platform for widefield clinical imaging with rapidly tunable spectral, coherent, and directional illumination. We demonstrate three capabilities of MLE: enhancing tissue chromophore contrast with multispectral diffuse reflectance, quantifying blood flow using laser speckle contrast imaging, and characterizing mucosal topography using photometric stereo. We validate MLE with benchtop models, then demonstrate MLE during clinical colonoscopies. MLE images from 31 polyps demonstrate an approximate three-fold improvement in contrast and a five-fold improvement in color difference compared to white light and narrow band imaging. With the ability to reveal multiple complementary types of tissue contrast while seamlessly integrating into the clinical environment, MLE shows promise as an investigative tool to improve gastrointestinal imaging.
白光内镜检查是检测胃肠道疾病的临床金标准。大多数应用涉及识别组织颜色、质地和形状的视觉异常。不幸的是,这些特征的对比度往往很细微,导致许多具有临床相关性的病例未被发现。为了克服这一挑战,我们引入了多对比度激光内镜检查(MLE):一个用于宽视野临床成像的平台,具有快速可调的光谱、相干和定向照明。我们展示了MLE的三种能力:通过多光谱漫反射增强组织发色团对比度、使用激光散斑对比度成像量化血流以及使用光度立体法表征粘膜地形。我们用台式模型验证了MLE,然后在临床结肠镜检查中展示了MLE。与白光和窄带成像相比,来自31个息肉的MLE图像显示对比度提高了约三倍,色差提高了五倍。由于能够揭示多种互补类型的组织对比度,同时无缝集成到临床环境中,MLE有望成为一种改善胃肠道成像的研究工具。
