Recha Faustyn, Raczkiewicz Wioletta, Bacharz Kamil, Wójcicki Artur, Bujňáková Petra, Koteš Peter
Faculty of Architecture, Civil Engineering and Applied Arts, Academy of Silesia, Rolna Street 43, 40-555 Katowice, Poland.
Department of Strength of Materials and Building Structures, Faculty of Civil Engineering and Architecture, Kielce University of Technology, Al. 1000-lecia PP 7, 25-314 Kielce, Poland.
Materials (Basel). 2025 Jun 21;18(13):2945. doi: 10.3390/ma18132945.

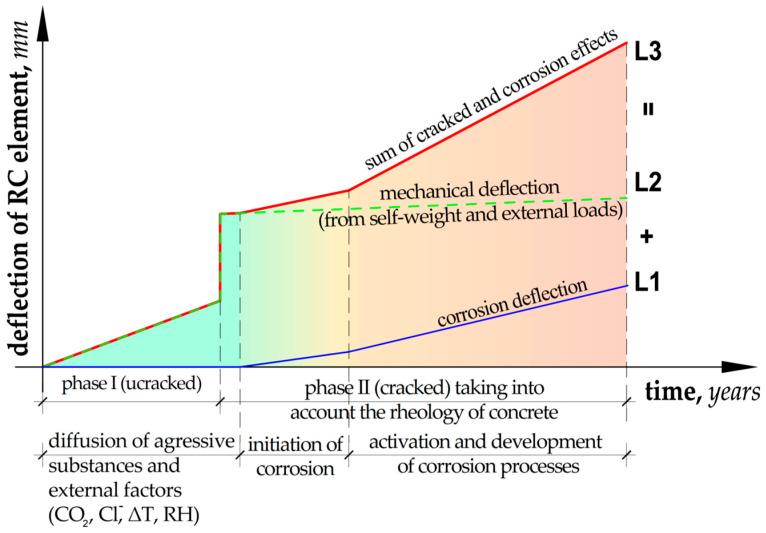

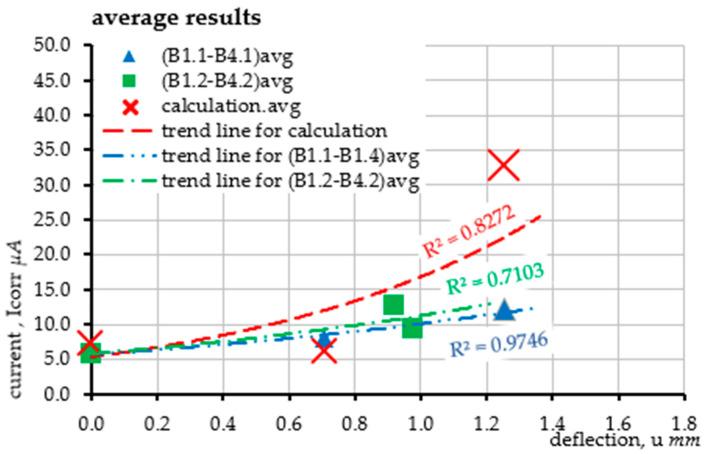

This article includes tests of the deflection and load-bearing capacity of reinforced concrete beams exposed to chloride ions. This work forms part of the verification of a newly developed model for estimating the intensity of the corrosion current of the reinforcement, which assumes the possibility of estimating the corrosion parameter based on a detailed analysis of the element deformation. The model assumes the use of the inverse problem, which is based on the analysis of deflection as a result of the partial impact of the corrosion process on the main reinforcement in the reinforced concrete element. This article presents, in detail, the course of the conducted tests, including the results of the deflection measurements with simultaneous measurements of the intensity of the corrosion current of the reinforcement during the test. As part of this research, a gravimetric analysis of the loss of reinforcement mass caused by the ongoing corrosion process was also performed. The main objective of this research was to experimentally verify the adopted model of the new diagnostic method, which fully confirmed the model assumptions. The obtained research results confirmed the validity of the assumptions adopted in the theoretical model, which was further confirmed by analytical calculations.
本文包括对暴露于氯离子环境下的钢筋混凝土梁的挠度和承载能力测试。这项工作是对一种新开发的用于估算钢筋腐蚀电流强度模型进行验证的一部分，该模型假定可以基于对构件变形的详细分析来估算腐蚀参数。该模型采用了反问题，其基于对腐蚀过程对钢筋混凝土构件中主筋的部分影响所导致的挠度进行分析。本文详细介绍了所进行测试的过程，包括测试期间对挠度测量的结果以及同时对钢筋腐蚀电流强度的测量结果。作为这项研究的一部分，还对正在进行的腐蚀过程导致的钢筋质量损失进行了重量分析。这项研究的主要目的是通过实验验证所采用的新诊断方法模型，该模型完全证实了模型假设。所获得的研究结果证实了理论模型中所采用假设的有效性，这一点通过分析计算得到了进一步证实。
