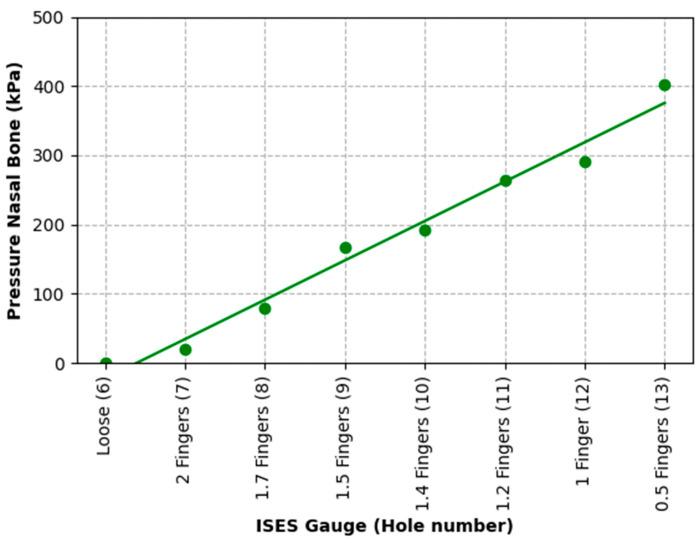

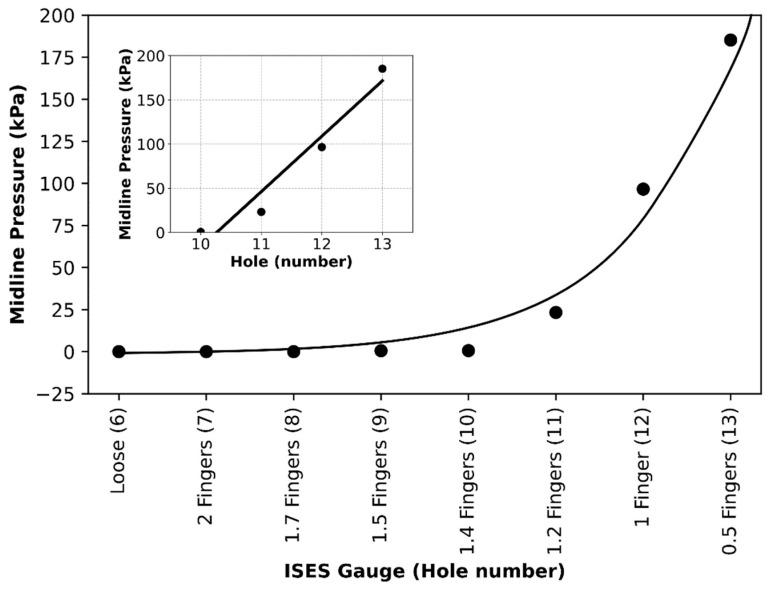

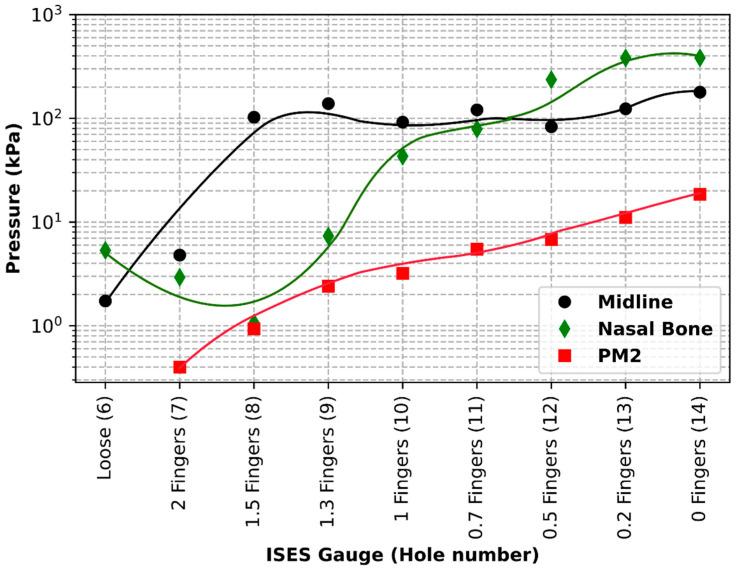

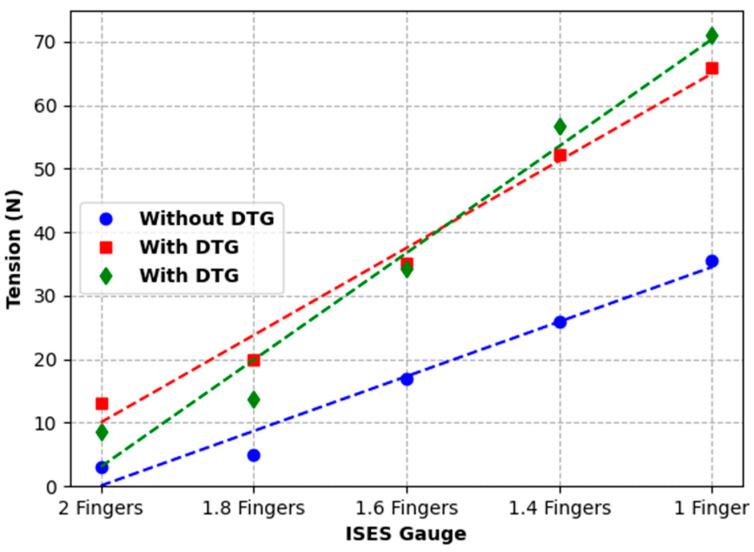

Pressures applied to horses via nosebands are of growing concern. The current study applied noseband pressure to the head of a dead horse. Pressure sensors were placed on the left nasal bone to record pressures as the noseband was progressively tightened. Tightness increased as predicated by holes in the strap of the noseband (as supplied) through eight steps from two fingers' space, assessed using the standard International Society for Equitation Science Taper Gauge through to zero space. Sensors were also placed at the midline frontal plane and intra-orally at the level of the second premolar tooth. A strain gauge integrated into the noseband recorded tensions within the noseband at each tightness level, and a digital taper gauge under the noseband recorded forces on the face. Pressures at the left nasal bone rose to 403 kPa, while those at the frontal nasal plane reached 185 kPa. Pressures rose rapidly once the noseband was tightened at the equivalent of 1.4 fingers' space under the noseband. These findings may help to explain cases of bone and skin damage at the noseband location and indicate the need to ensure that nosebands can accommodate more than the equivalent of 1.4 fingers beneath them in the nasal midline. Given that pressures are expected to rise from those reported here when horses wear bits, locomote, and when the reins are under tension, we conclude that the traditional provision of two fingers' space should be retained.
