Deligiannis Theodore, Mangalam Madhur
Division of Biomechanics and Research Development, Department of Biomechanics, and Center for Research in Human Movement Variability, University of Nebraska at Omaha, Omaha, NE, 68182, USA.
Sci Rep. 2025 Aug 7;15(1):28933. doi: 10.1038/s41598-025-07290-1.

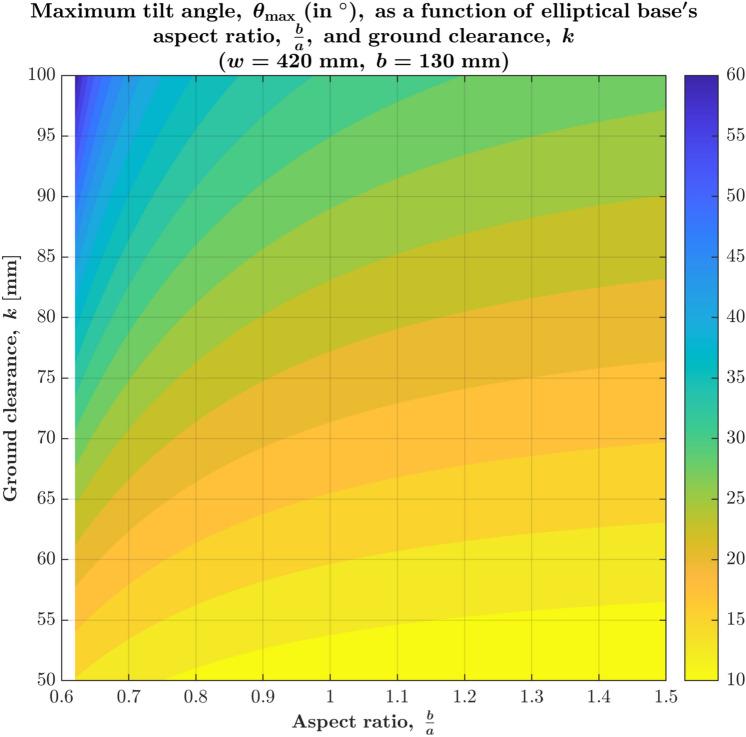

Wobble boards-unstable platforms mounted on curved bases-are widely used for balance training and rehabilitation. However, their design lacks a systematic theoretical foundation, making it difficult to precisely tailor instability characteristics to specific neuromuscular demands. This study introduces a geometric framework for optimizing wobble board instability through controlled manipulation of base geometry. We derived exact relationships between the elliptical base's geometric parameters and the board's instability characteristics for the general case of a truncated elliptical base geometry. Our analysis reveals that the ratio between the vertical and horizontal semi-axes of the elliptical base plays a critical role in shaping stability properties. If this ratio exceeds a certain critical value-which can be precisely determined from the geometry-the board transitions into an unstable regime requiring rapid, reflexive postural responses. Conversely, ratios below this critical value enable more stable configurations that support larger, compensatory movements involving gross motor coordination. The absolute size of the elliptical base further modulates these effects by scaling the overall postural demand. Furthermore, we demonstrate that ground clearance (i.e., the vertical distance between the base's truncation and the ground) governs safety trade-offs by limiting the maximum tilt angle achievable before loss of stability. These results constitute theoretical predictions derived from geometric modeling that offer a structured basis for customizing instability in training or rehabilitation contexts, though their clinical relevance remains to be established through future empirical validation. By linking these parameters to postural demands, this framework provides clinicians and trainers with a structured, evidence-based method for designing, prescribing, and progressively adapting wobble boards to match individual skill levels and neuromuscular requirements.
摇摆板——安装在弯曲底座上的不稳定平台——被广泛用于平衡训练和康复。然而，其设计缺乏系统的理论基础，难以根据特定的神经肌肉需求精确调整不稳定特性。本研究引入了一个几何框架，通过对底座几何形状的可控操纵来优化摇摆板的不稳定性。对于截断椭圆底座几何形状的一般情况，我们推导了椭圆底座的几何参数与板子不稳定特性之间的确切关系。我们的分析表明，椭圆底座的垂直半轴与水平半轴之比在塑造稳定性特性方面起着关键作用。如果这个比值超过某个临界值——可以从几何形状精确确定——板子就会转变为不稳定状态，需要快速的、反射性的姿势反应。相反，低于这个临界值的比值能实现更稳定的配置，支持涉及大肌肉运动协调的更大的补偿性运动。椭圆底座的绝对尺寸通过缩放整体姿势需求进一步调节这些影响。此外，我们证明了离地间隙（即底座截断处与地面之间的垂直距离）通过限制失去稳定性前可达到的最大倾斜角度来控制安全权衡。这些结果是从几何建模得出的理论预测，为在训练或康复环境中定制不稳定性提供了结构化基础，尽管它们的临床相关性仍有待通过未来的实证验证来确立。通过将这些参数与姿势需求联系起来，这个框架为临床医生和训练师提供了一种结构化的、基于证据的方法，用于设计、开出处方并逐步调整摇摆板，以匹配个人技能水平和神经肌肉需求。
