聚二甲基硅氧烷上的原位寡核苷酸合成:用于微阵列制造的柔性基底

In situ oligonucleotide synthesis on poly(dimethylsiloxane): a flexible substrate for microarray fabrication.

作者信息

Moorcroft Matthew J, Meuleman Wouter R A, Latham Steven G, Nicholls Thomas J, Egeland Ryan D, Southern Edwin M

机构信息

Oxamer, Oxford Gene Technology Ltd Sandy Lane, Yarnton, Oxford OX5 1PF, UK.

出版信息

Nucleic Acids Res. 2005 May 3;33(8):e75. doi: 10.1093/nar/gni075.

Abstract

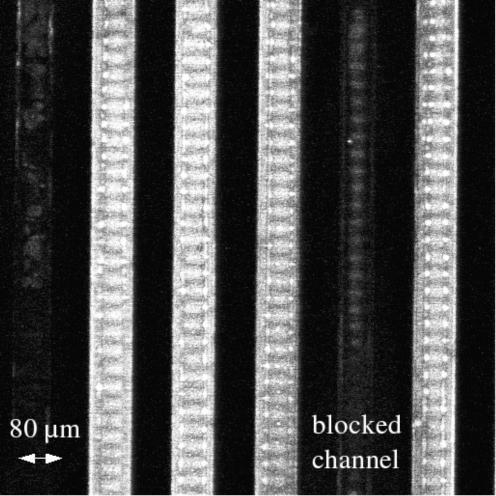

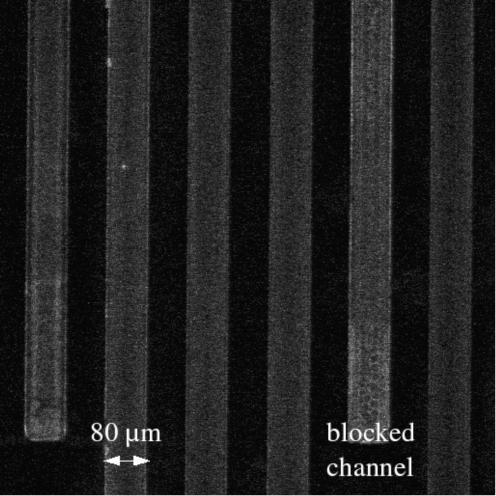

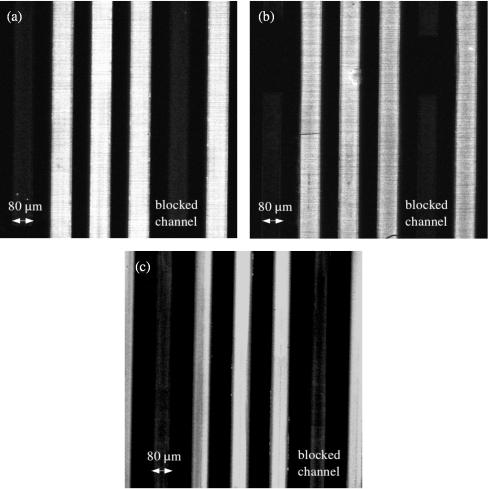

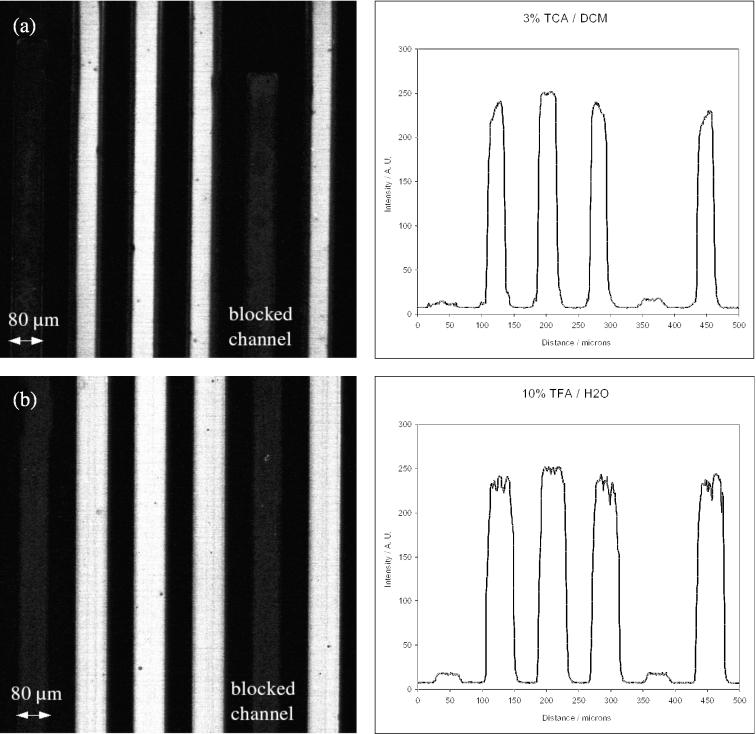

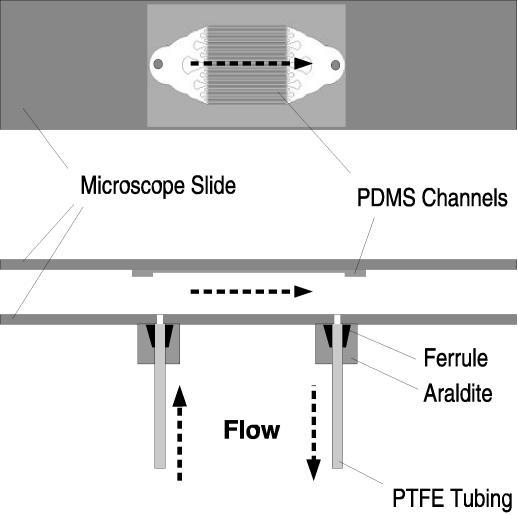

In this paper, we demonstrate in situ synthesis of oligonucleotide probes on poly(dimethylsiloxane) (PDMS) microchannels through use of conventional phosphoramidite chemistry. PDMS polymer was moulded into a series of microchannels using standard soft lithography (micro-moulding), with dimensions <100 microm. The surface of the PDMS was derivatized by exposure to ultraviolet/ozone followed by vapour phase deposition of glycidoxypropyltrimethoxysilane and reaction with poly(ethylene glycol) spacer, resulting in a reactive surface for oligonucleotide coupling. High, reproducible yields were achieved for both 6mer and 21mer probes as assessed by hybridization to fluorescent oligonucleotides. Oligonucleotide surface density was comparable with that obtained on glass substrates. These results suggest PDMS as a stable and flexible alternative to glass as a suitable substrate in the fabrication and synthesis of DNA microarrays.

摘要

在本文中,我们通过使用传统的亚磷酰胺化学方法,证明了在聚二甲基硅氧烷(PDMS)微通道上原位合成寡核苷酸探针。使用标准软光刻技术(微成型)将PDMS聚合物模制成一系列微通道,其尺寸小于100微米。通过暴露于紫外光/臭氧对PDMS表面进行衍生化,随后气相沉积环氧丙氧基丙基三甲氧基硅烷并与聚乙二醇间隔物反应,从而产生用于寡核苷酸偶联的反应性表面。通过与荧光寡核苷酸杂交评估,6聚体和21聚体探针均获得了高且可重复的产率。寡核苷酸表面密度与在玻璃基板上获得的相当。这些结果表明,在DNA微阵列的制造和合成中,PDMS作为一种稳定且灵活的替代玻璃的合适基板。
