National Magnetic Resonance Facility at Madison, Department of Biochemistry, University of Wisconsin, Madison, 433 Babcock Drive, Madison, WI 53706-1544, USA.
Magn Reson Chem. 2009 Dec;47 Suppl 1(S1):S123-6. doi: 10.1002/mrc.2526.

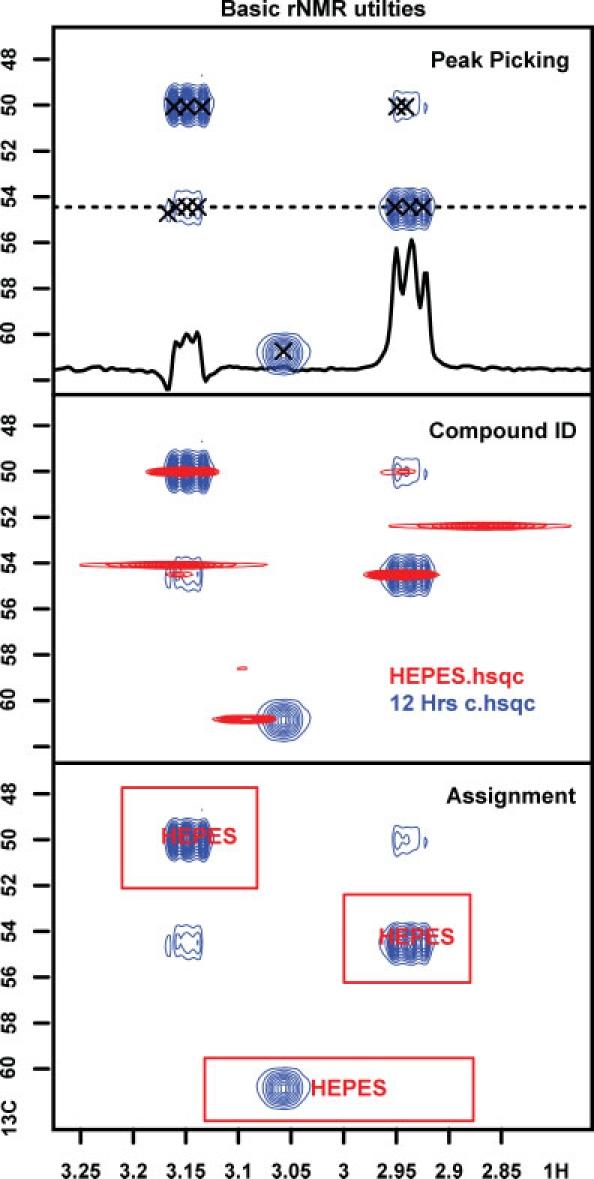

Despite the extensive use of nuclear magnetic resonance (NMR) for metabolomics, no publicly available tools have been designed for identifying and quantifying metabolites across multiple spectra. We introduce here a new open source software tool, rNMR, which provides a simple graphics-based method for visualizing, identifying, and quantifying metabolites across multiple one- or two-dimensional NMR spectra. rNMR differs from existing software tools for NMR spectroscopy in that analyses are based on regions of interest (ROIs) rather than peak lists. ROIs contain all of the underlying NMR data within user-defined chemical shift ranges. ROIs can be inspected visually, and they support robust quantification of NMR signals. ROI-based analyses support simultaneous views of metabolite signals from up to hundreds of spectra, and ROI boundaries can be adjusted dynamically to ensure that signals corresponding to assigned atoms are analyzed consistently throughout the dataset. We describe how rNMR greatly reduces the time required for robust bioanalytical analysis of complex NMR data. An rNMR analysis yields a compact and transparent way of archiving the results from a metabolomics study so that it can be examined and evaluated by others. The rNMR website at http://rnmr.nmrfam.wisc.edu offers downloadable versions of rNMR for Windows, Macintosh, and Linux platforms along with extensive help documentation, instructional videos, and sample data.
尽管核磁共振(NMR)在代谢组学中得到了广泛应用,但目前还没有专门用于跨多个图谱识别和定量代谢物的公开工具。我们在这里介绍一种新的开源软件工具 rNMR,它提供了一种简单的基于图形的方法,用于可视化、识别和定量跨多个一维或二维 NMR 图谱中的代谢物。rNMR 与现有的 NMR 光谱学软件工具不同,因为分析是基于感兴趣区域(ROI)而不是峰列表。ROI 包含用户定义的化学位移范围内的所有基础 NMR 数据。ROI 可以进行可视化检查,并且支持对 NMR 信号进行稳健的定量分析。基于 ROI 的分析支持同时查看多达数百个图谱中的代谢物信号,并且可以动态调整 ROI 边界,以确保在整个数据集内一致地分析对应于指定原子的信号。我们描述了 rNMR 如何大大减少对复杂 NMR 数据进行稳健生物分析所需的时间。rNMR 分析以紧凑透明的方式归档代谢组学研究的结果,以便其他人可以对其进行检查和评估。rNMR 网站(http://rnmr.nmrfam.wisc.edu)提供适用于 Windows、Macintosh 和 Linux 平台的 rNMR 可下载版本,以及广泛的帮助文档、教学视频和示例数据。
