Department of Medicine, Universidade Federal de São Paulo, São Paulo 04023-062, Brazil.
Arthritis Res Ther. 2010;12(4):R157. doi: 10.1186/ar3112. Epub 2010 Aug 10.
Laser Doppler imaging (LDI) is a relatively new method for assessing the functional aspect of superficial skin blood flow in systemic sclerosis (SSc) and Raynaud's phenomenon. The present study investigated the dynamic behavior of digital skin microvascular blood flow before and after cold stimulus (CS) in SSc patients and in healthy controls by means of a comprehensive approach of the functional (LDI), morphological (nailfold capillaroscopy (NFC)), and biochemical (fingertip lacticemy (FTL)) microcirculation components.
Forty-four SSc patients and 40 healthy controls were included. After acclimatization, all subjects underwent NFC followed by LDI and FTL measurement. NFC was performed with a stereomicroscope under 10× to 20× magnification in the 10 digits of the hands. Skin blood flow of the dorsum of four fingertips (excluding the thumb) of the left hand was measured using LDI at baseline and for 30 minutes after CS. The mean finger blood flow (FBF) of the four fingertips was expressed as arbitrary perfusion units. FTL was determined on the fourth left finger before (pre-CS-FTL) and 10 minutes after CS.

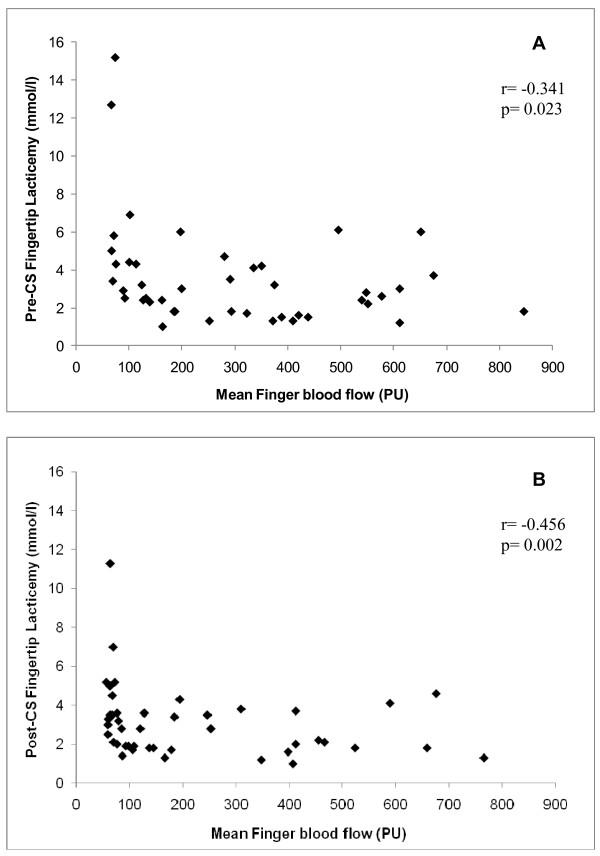

LDI showed significantly lower mean baseline FBF in SSc patients as compared with controls (296.9 ± 208.8 vs. 503.6 ± 146.4 perfusion units; P < 0.001) and also at all time points after CS (P < 0.001). There was a significant decrease in mean FBF after CS as compared with baseline in SSc patients and in controls, followed by recovery of the blood flow 27 minutes after CS in healthy controls, but not in SSc patients. FBF tended to be lower in patients with digital scars and previous ulceration/amputation (P = 0.06). There was no correlation between mean baseline FBF and NFC parameters. Interestingly, there was a negative correlation between FTL and FBF measured by LDI in basal conditions and 10 minutes after CS in SSc patients.
LDI showed lower digital blood flow in SSc patients when compared with healthy controls and correlated well with FTL both at baseline and after CS, allowing objective measurement of blood perfusion in SSc patients. The lack of correlation between functional and morphological microvascular abnormalities, measured by LDI and NFC, suggests they are complementary tools for evaluation of independent microangiopathy aspects in SSc patients.
激光多普勒成像(LDI)是一种评估系统性硬化症(SSc)和雷诺现象中皮肤表面血流功能的新方法。本研究通过综合功能(LDI)、形态(甲襞毛细血管镜(NFC))和生化(指尖乳酸(FTL))微血管成分,研究了 SSc 患者和健康对照组在冷刺激(CS)前后数字皮肤微血管血流的动态变化。
纳入 44 例 SSc 患者和 40 例健康对照者。在适应环境后,所有受试者均进行 NFC 检查,然后进行 LDI 和 FTL 测量。NFC 在 10×至 20×放大倍率的立体显微镜下进行,在双手的 10 个手指中进行。使用 LDI 在基线和 CS 后 30 分钟测量左手 4 个指尖(不包括拇指)背侧的皮肤血流。4 个指尖的平均手指血流(FBF)表示为任意灌注单位。FTL 在 CS 前(CS-FTL)和 CS 后 10 分钟测定左手第四指。
LDI 显示 SSc 患者的平均基线 FBF 明显低于对照组(296.9±208.8 与 503.6±146.4 灌注单位;P<0.001),CS 后各时间点也明显低于对照组(P<0.001)。与基线相比,CS 后 SSc 患者和对照组的平均 FBF 均显著下降,CS 后 27 分钟健康对照组血流恢复,但 SSc 患者未恢复。手指有疤痕和既往溃疡/截肢的患者 FBF 倾向于较低(P=0.06)。平均基线 FBF 与 NFC 参数之间无相关性。有趣的是,SSc 患者在基础状态和 CS 后 10 分钟时,FTL 与 LDI 测量的 FBF 呈负相关。
与健康对照组相比,LDI 显示 SSc 患者的手指血流较低,与 FTL 相关性良好,无论是在基线还是 CS 后,均能客观测量 SSc 患者的血流灌注。LDI 和 NFC 测量的功能和形态微血管异常之间缺乏相关性表明,它们是评估 SSc 患者独立微血管病变方面的互补工具。
