N-（1-乙酰基-r-7，c-9-二苯基-4,8-二硫杂-1,2-二氮杂-螺-[5.4]癸-2-烯-3-基）乙酰胺
N-(1-Acetyl-r-7,c-9-diphenyl-4,8-dithia-1,2-diaza-spiro-[5.4]dec-2-en-3-yl)acet-amide.
作者信息
Gayathri D, Velmurugan D, Umamatheswari S, Kabilan S, Ravikumar K
出版信息
Acta Crystallogr Sect E Struct Rep Online. 2008 Jan 23;64(Pt 2):o494-5. doi: 10.1107/S1600536808001025.
Abstract

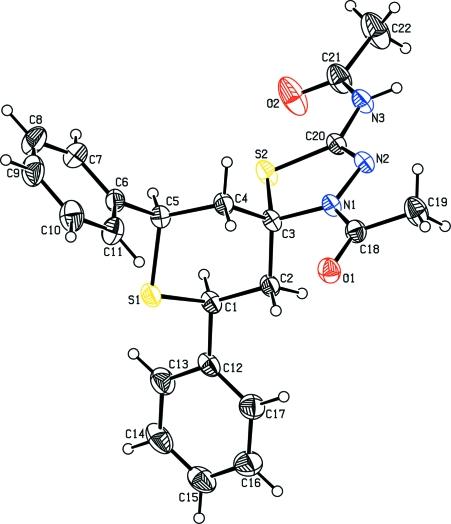

In the title compound, C(22)H(23)N(3)O(2)S(2), the five-membered ring is planar and the C(5)S ring adopts a chair conformation. The crystal packing is stabilized by inter-molecular N-H⋯O and C-H⋯O inter-actions, generating a chain and a centrosymmetric dimer, respectively.
摘要
在标题化合物C₂₂H₂₃N₃O₂S₂中，五元环是平面的，C₅S环呈椅式构象。晶体堆积通过分子间的N - H⋯O和C - H⋯O相互作用得以稳定，分别形成一条链和一个中心对称二聚体。
