4-（3-氨丙基）吗啉-4-鎓四氯锌酸（II）盐
4-(3-Ammonio-prop-yl)morpholin-4-ium tetra-chloridozincate(II).
作者信息
El Glaoui Meher, Jeanneau Erwann, Rzaigui Mohamed, Ben Nasr Cherif
出版信息
Acta Crystallogr Sect E Struct Rep Online. 2009 Feb 18;65(Pt 3):m282. doi: 10.1107/S1600536809004346.
Abstract

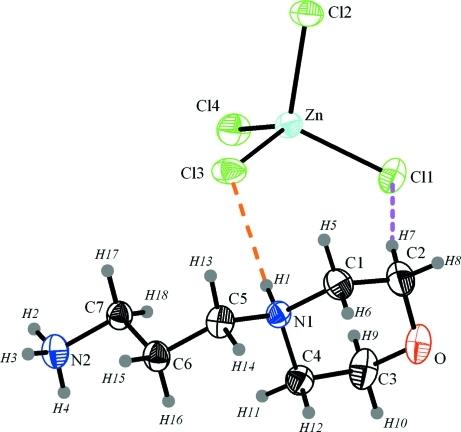

In the title compound, (C(7)H(18)N(2)O)[ZnCl(4)], the Zn(II) ion is coordinated by four Cl atoms in a close to tetra-hedral geometry. The crystal packing exhibits C-H⋯Cl, N-H⋯Cl and N-H⋯O hydrogen bonds.
摘要
在标题化合物（C₇H₁₈N₂O）[ZnCl₄]中，Zn（II）离子由四个Cl原子配位，呈近似四面体几何构型。晶体堆积呈现出C—H⋯Cl、N—H⋯Cl和N—H⋯O氢键。
