Alberta Provincial Laboratory for Public Health, University of Alberta Hospital, Edmonton, Canada.
PLoS One. 2013;8(4):e59970. doi: 10.1371/journal.pone.0059970. Epub 2013 Apr 1.

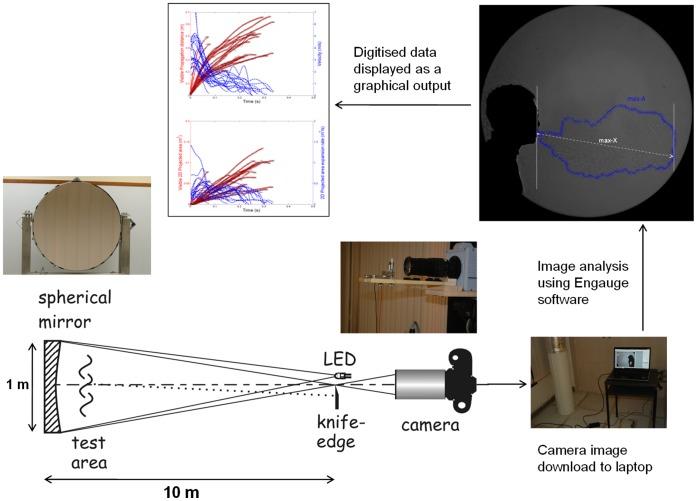

Natural human exhalation flows such as coughing, sneezing and breathing can be considered as 'jet-like' airflows in the sense that they are produced from a single source in a single exhalation effort, with a relatively symmetrical, conical geometry. Although coughing and sneezing have garnered much attention as potential, explosive sources of infectious aerosols, these are relatively rare events during daily life, whereas breathing is necessary for life and is performed continuously. Real-time shadowgraph imaging was used to visualise and capture high-speed images of healthy volunteers sneezing and breathing (through the nose - nasally, and through the mouth - orally). Six volunteers, who were able to respond to the pepper sneeze stimulus, were recruited for the sneezing experiments (2 women: 27.5±6.36 years; 4 men: 29.25±10.53 years). The maximum visible distance over which the sneeze plumes (or puffs) travelled was 0.6 m, the maximum sneeze velocity derived from these measured distances was 4.5 m/s. The maximum 2-dimensional (2-D) area of dissemination of these sneezes was 0.2 m(2). The corresponding derived parameter, the maximum 2-D area expansion rate of these sneezes was 2 m(2)/s. For nasal breathing, the maximum propagation distance and derived velocity were 0.6 m and 1.4 m/s, respectively. The maximum 2-D area of dissemination and derived expansion rate were 0.11 m(2) and 0.16 m(2)/s, respectively. Similarly, for mouth breathing, the maximum propagation distance and derived velocity were 0.8 m and 1.3 m/s, respectively. The maximum 2-D area of dissemination and derived expansion rate were 0.18 m(2) and 0.17 m(2)/s, respectively. Surprisingly, a comparison of the maximum exit velocities of sneezing reported here with those obtained from coughing (published previously) demonstrated that they are relatively similar, and not extremely high. This is in contrast with some earlier estimates of sneeze velocities, and some reasons for this difference are discussed.
自然呼出的气流,如咳嗽、打喷嚏和呼吸,可以被认为是“射流样”的气流,因为它们是在单次呼气努力中从单个源产生的,具有相对对称的锥形几何形状。尽管咳嗽和打喷嚏作为潜在的、具有爆炸性的传染性气溶胶源已经引起了广泛关注,但在日常生活中这些情况相对较少发生,而呼吸是生命所必需的,并且是连续进行的。实时阴影成像被用于可视化和捕捉健康志愿者打喷嚏和呼吸(通过鼻子-经鼻,和通过嘴-经口)的高速图像。招募了 6 名能够对胡椒打喷嚏刺激做出反应的志愿者进行打喷嚏实验(2 名女性:27.5±6.36 岁;4 名男性:29.25±10.53 岁)。喷嚏羽流(或喷流)传播的最大可见距离为 0.6 米,从这些测量距离得出的最大喷嚏速度为 4.5 米/秒。这些喷嚏传播的最大二维(2-D)面积为 0.2 平方米。相应的衍生参数,这些喷嚏的最大二维面积扩展率为 2 平方米/秒。对于经鼻呼吸,最大传播距离和衍生速度分别为 0.6 米和 1.4 米/秒。最大 2-D 传播面积和衍生扩展率分别为 0.11 平方米和 0.16 平方米/秒。同样,对于经口呼吸,最大传播距离和衍生速度分别为 0.8 米和 1.3 米/秒。最大 2-D 传播面积和衍生扩展率分别为 0.18 平方米和 0.17 平方米/秒。令人惊讶的是,与以前发表的咳嗽(之前发表的)获得的最大出口速度相比,这里报告的打喷嚏最大出口速度相对相似,而不是非常高。这与一些早期的喷嚏速度估计形成了对比,并且讨论了造成这种差异的一些原因。
