Department of Molecular and Cellular Physiology, Stanford University, Stanford, CA 94305, USA.
Department of Structural Biology, Stanford University, Stanford, CA 94305, USA.
Nature. 2013 Oct 24;502(7472):575-579. doi: 10.1038/nature12572. Epub 2013 Sep 22.

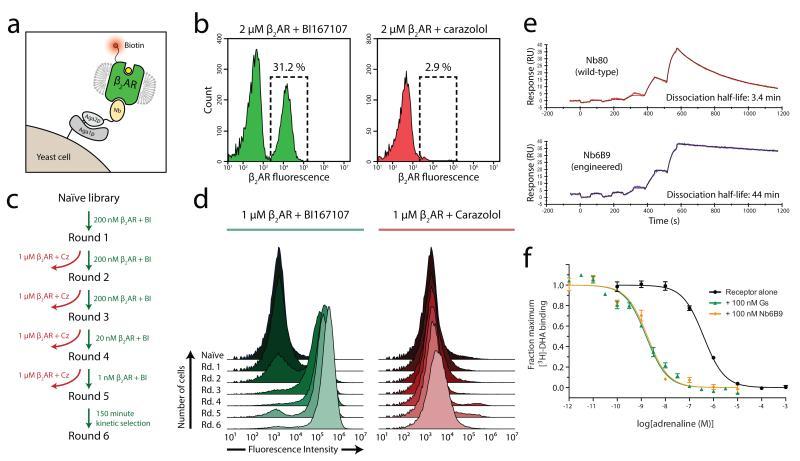

G-protein-coupled receptors (GPCRs) are integral membrane proteins that have an essential role in human physiology, yet the molecular processes through which they bind to their endogenous agonists and activate effector proteins remain poorly understood. So far, it has not been possible to capture an active-state GPCR bound to its native neurotransmitter. Crystal structures of agonist-bound GPCRs have relied on the use of either exceptionally high-affinity agonists or receptor stabilization by mutagenesis. Many natural agonists such as adrenaline, which activates the β2-adrenoceptor (β2AR), bind with relatively low affinity, and they are often chemically unstable. Using directed evolution, we engineered a high-affinity camelid antibody fragment that stabilizes the active state of the β2AR, and used this to obtain crystal structures of the activated receptor bound to multiple ligands. Here we present structures of the active-state human β2AR bound to three chemically distinct agonists: the ultrahigh-affinity agonist BI167107, the high-affinity catecholamine agonist hydroxybenzyl isoproterenol, and the low-affinity endogenous agonist adrenaline. The crystal structures reveal a highly conserved overall ligand recognition and activation mode despite diverse ligand chemical structures and affinities that range from 100 nM to ∼80 pM. Overall, the adrenaline-bound receptor structure is similar to the others, but it has substantial rearrangements in extracellular loop three and the extracellular tip of transmembrane helix 6. These structures also reveal a water-mediated hydrogen bond between two conserved tyrosines, which appears to stabilize the active state of the β2AR and related GPCRs.
G 蛋白偶联受体(GPCRs)是一种整合膜蛋白,在人类生理学中具有重要作用,但其与内源性激动剂结合并激活效应蛋白的分子过程仍知之甚少。到目前为止,还不可能捕获与天然神经递质结合的活性状态 GPCR。与激动剂结合的 GPCR 的晶体结构依赖于使用异常高亲和力的激动剂或通过突变稳定受体。许多天然激动剂,如激活β2-肾上腺素能受体(β2AR)的肾上腺素,与受体的结合亲和力相对较低,而且往往化学不稳定。通过定向进化,我们设计了一种高亲和力的骆驼抗体片段,可稳定β2AR 的活性状态,并利用该片段获得了与多种配体结合的激活受体的晶体结构。在这里,我们展示了三种化学结构截然不同的激动剂结合的活性状态人β2AR 的结构:超高亲和力激动剂 BI167107、高亲和力儿茶酚胺激动剂羟苯异丙肾上腺素和低亲和力内源性激动剂肾上腺素。尽管配体的化学结构和亲和力从 100nM 到约 80pM 不等,但晶体结构揭示了高度保守的整体配体识别和激活模式。总的来说,与其他激动剂结合的受体结构相似,但它在细胞外环 3 和跨膜螺旋 6 的细胞外尖端有很大的重排。这些结构还揭示了两个保守酪氨酸之间的水介导氢键,这似乎稳定了β2AR 和相关 GPCR 的活性状态。
