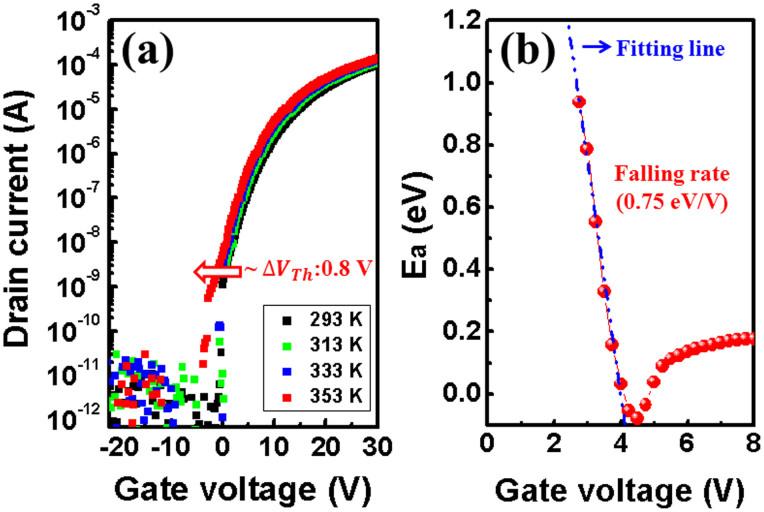

High-performance thin-film transistors (TFTs) are the fundamental building blocks in realizing the potential applications of the next-generation displays. Atomically controlled superlattice structures are expected to induce advanced electric and optical performance due to two-dimensional electron gas system, resulting in high-electron mobility transistors. Here, we have utilized a semiconductor/insulator superlattice channel structure comprising of ZnO/Al2O3 layers to realize high-performance TFTs. The TFT with ZnO (5 nm)/Al2O3 (3.6 nm) superlattice channel structure exhibited high field effect mobility of 27.8 cm(2)/Vs, and threshold voltage shift of only < 0.5 V under positive/negative gate bias stress test during 2 hours. These properties showed extremely improved TFT performance, compared to ZnO TFTs. The enhanced field effect mobility and stability obtained for the superlattice TFT devices were explained on the basis of layer-by-layer growth mode, improved crystalline nature of the channel layers, and passivation effect of Al2O3 layers.
高性能薄膜晶体管(TFT)是实现下一代显示应用潜力的基本构建块。由于二维电子气系统,原子控制的超晶格结构有望引起先进的电和光学性能,从而实现高电子迁移率晶体管。在这里,我们利用包含 ZnO/Al2O3 层的半导体/绝缘体超晶格沟道结构来实现高性能 TFT。具有 ZnO(5nm)/Al2O3(3.6nm)超晶格沟道结构的 TFT 表现出 27.8cm2/Vs 的高场效应迁移率,并且在正/负栅极偏置应力测试期间,在 2 小时内仅 <0.5V 的阈值电压漂移。与 ZnO TFT 相比,这些特性显示出 TFT 性能的极大改善。超晶格 TFT 器件获得的增强的场效应迁移率和稳定性是基于逐层生长模式、沟道层改善的结晶性质以及 Al2O3 层的钝化效应来解释的。
