School of Mathematics and Physics, Suzhou University of Science and Technology, 1# Kerui Road, Suzhou, Jiangsu 215009, China.
Nanoscale Res Lett. 2014 Feb 28;9(1):100. doi: 10.1186/1556-276X-9-100.

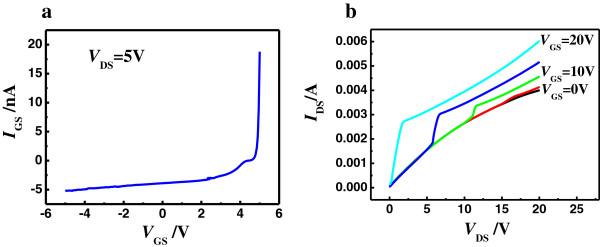

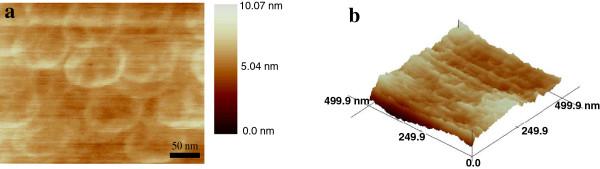

Two-dimensional (2D) molybdenum disulfide (MoS2) is an attractive alternative semiconductor material for next-generation low-power nanoelectronic applications, due to its special structure and large bandgap. Here, we report the fabrication of large-area MoS2 nanodiscs and their incorporation into back-gated field effect transistors (FETs) whose electrical properties we characterize. The MoS2 nanodiscs, fabricated via chemical vapor deposition (CVD), are homogeneous and continuous, and their thickness of around 5 nm is equal to a few layers of MoS2. In addition, we find that the MoS2 nanodisc-based back-gated field effect transistors with nickel electrodes achieve very high performance. The transistors exhibit an on/off current ratio of up to 1.9 × 105, and a maximum transconductance of up to 27 μS (5.4 μS/μm). Moreover, their mobility is as high as 368 cm2/Vs. Furthermore, the transistors have good output characteristics and can be easily modulated by the back gate. The electrical properties of the MoS2 nanodisc transistors are better than or comparable to those values extracted from single and multilayer MoS2 FETs.
二维(2D)二硫化钼(MoS2)由于其特殊的结构和较大的能带隙,是下一代低功耗纳米电子应用中极具吸引力的替代半导体材料。在这里,我们报告了大面积 MoS2 纳米盘的制造及其在背栅场效应晶体管(FET)中的应用,我们对其电学性能进行了表征。通过化学气相沉积(CVD)制备的 MoS2 纳米盘是均匀连续的,其厚度约为 5nm,相当于几层 MoS2。此外,我们发现基于 MoS2 纳米盘的具有镍电极的背栅场效应晶体管具有非常优异的性能。该晶体管的导通/关断电流比高达 1.9×105,最大跨导高达 27 μS(5.4 μS/μm)。此外,其迁移率高达 368 cm2/Vs。此外,这些晶体管具有良好的输出特性,并且可以很容易地通过背栅进行调制。MoS2 纳米盘晶体管的电学性能优于或可与从单层和多层 MoS2 FET 中提取的值相媲美。
