Kang Moo Sung, Park Jeong Yoon, Chin Dong Kyu, Kim Kyung Hyun, Kuh Sung Uk, Kim Keun Su, Cho Yong Eun
Department of Neurosurgery, Spine and Spinal Cord Institute, Gangnam Severance Hospital, Yonsei University College of Medicine, Seoul, Korea.
Korean J Spine. 2012 Sep;9(3):165-9. doi: 10.14245/kjs.2012.9.3.165. Epub 2012 Sep 30.
To establish normative data for spinal canal AP diameter from cervical vertebra to sacrum in the Korean young and to assess the exposed spinal canal after laminectomy which was related with restenosis by post-laminectomy membrane formation.

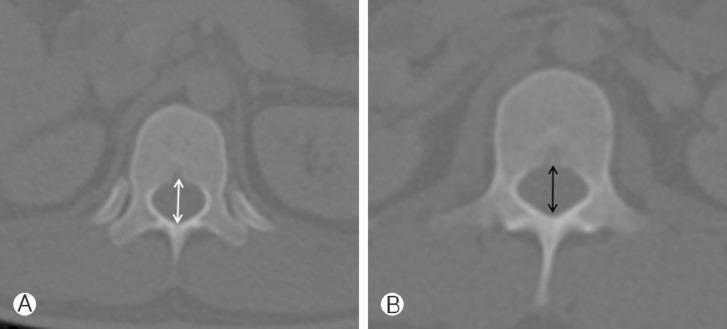

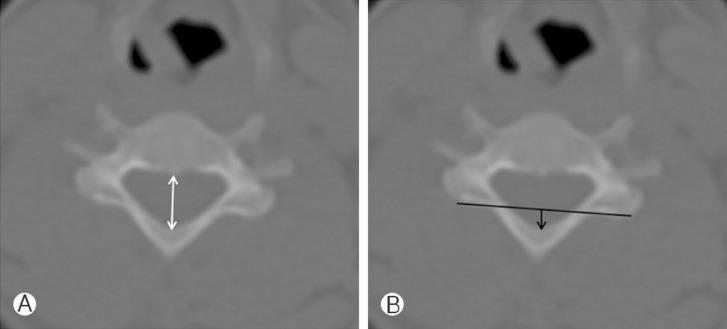

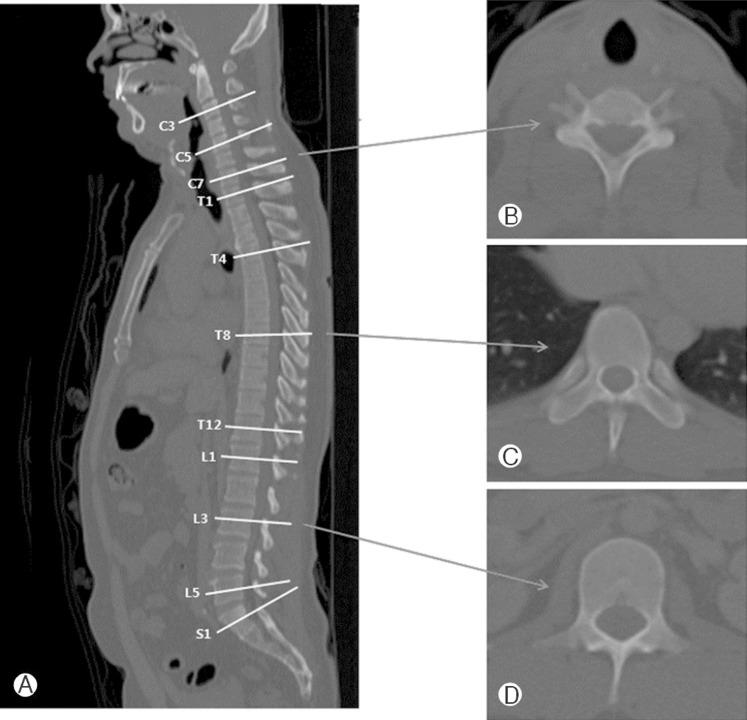

From PET/CT, axial bone-window CT of 83 young adults (20-29 years) were obtained, and we measured AP diameters of C3, C5, C7, T1, T4, T8, T12, L1, L3, L5 and S1. We also measured exposed AP diameter of C3, C5, C7, T1 and T2 above imaginary line for laminectomy.

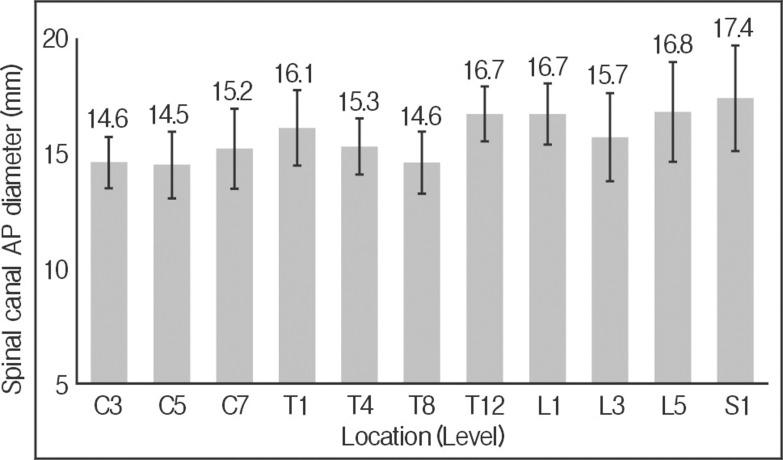

The shortest mean AP diameter was at C5 (14.5±1.5 mm), and the longest was at S1 (17.4±2.3 mm). AP diameter increased from C3 (14.6±1.1 mm) to T1 (16.1±1.2 mm) at cervical spine. In the thoracic spine, the diameter gradually decreased from T1 (16.1±1.2 mm) to T8 (14.6±1.3 mm) and increased to T12 (16.7±1.2 mm). The diameter decreased from L1 (16.7±1.3 mm) to L3 (15.7±1.9 mm), and it increased to S1 (17.4±2.3 mm) at lumbar spine. Exposed AP diameter above imaginary line for laminectomy was the longest at C3 (4.8±1.2 mm) and gradually decreased to T1 (3.3±0.9 mm) and T2 (0 mm).
Spinal AP diameter was the shortest in the mid-cervical area (C5) and increased to the upper thoracic area. From the upper thoracic vertebra, the diameter gradually decreased to the mid-thoracic vertebra (T8) and then increased to the lower thoracic vertebra. Lumbar vertebra also was similar with thoracic vertebra. Below T2, there was no exposed dural sac after laminectomy. This means that restenosis by post-laminectomy membrane formation can occur above T1.
建立韩国年轻人从颈椎至骶椎椎管前后径的正常参考数据,并评估椎板切除术后因椎板切除后膜形成导致再狭窄相关的椎管暴露情况。
从PET/CT获取83名20 - 29岁年轻成年人的轴向骨窗CT图像,测量C3、C5、C7、T1、T4、T8、T12、L1、L3、L5和S1的前后径。我们还测量了椎板切除假想线上方C3、C5、C7、T1和T2的暴露前后径。
平均前后径最短处为C5(14.5±1.5mm),最长处为S1(17.4±2.3mm)。颈椎处前后径从C3(14.6±1.1mm)至T1(16.1±1.2mm)增大。胸椎处,直径从T1(16.1±1.2mm)逐渐减小至T8(14.6±1.3mm),然后增大至T12(16.7±1.2mm)。腰椎处直径从L1(16.7±1.
