基于菜花状结构碳/硫阴极的超高能量密度锂硫一次电池。
Lithium Sulfur Primary Battery with Super High Energy Density: Based on the Cauliflower-like Structured C/S Cathode.
作者信息
Ma Yiwen, Zhang Hongzhang, Wu Baoshan, Wang Meiri, Li Xianfeng, Zhang Huamin
机构信息
Division of Energy Storage, Dalian Institute of Chemical Physics, Chinese Academy of Sciences, 457 Zhongshan Road, Dalian 116023, P.R. China.
Collaborative Innovation Center of Chemistry for Energy Materials (iChEM), Dalian 116023, P.R. China.
出版信息
Sci Rep. 2015 Oct 12;5:14949. doi: 10.1038/srep14949.

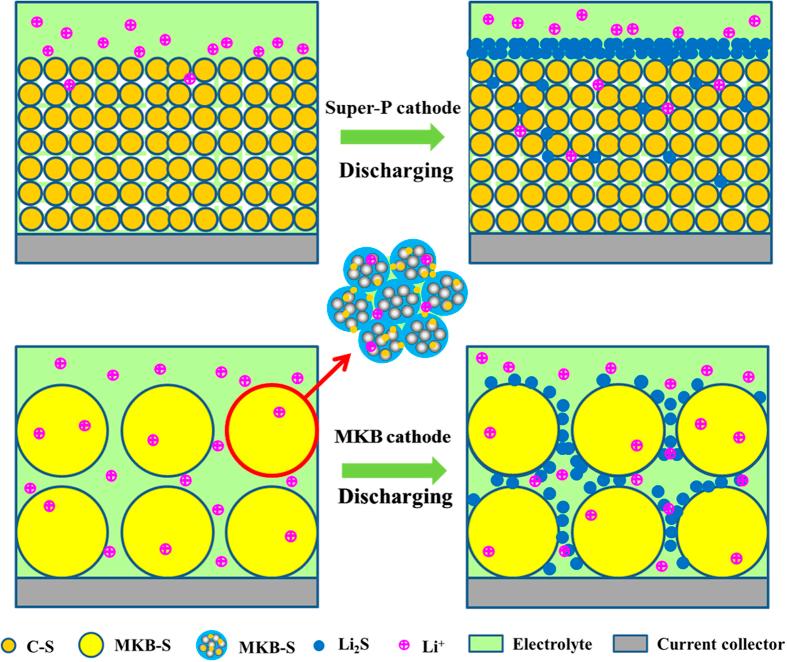

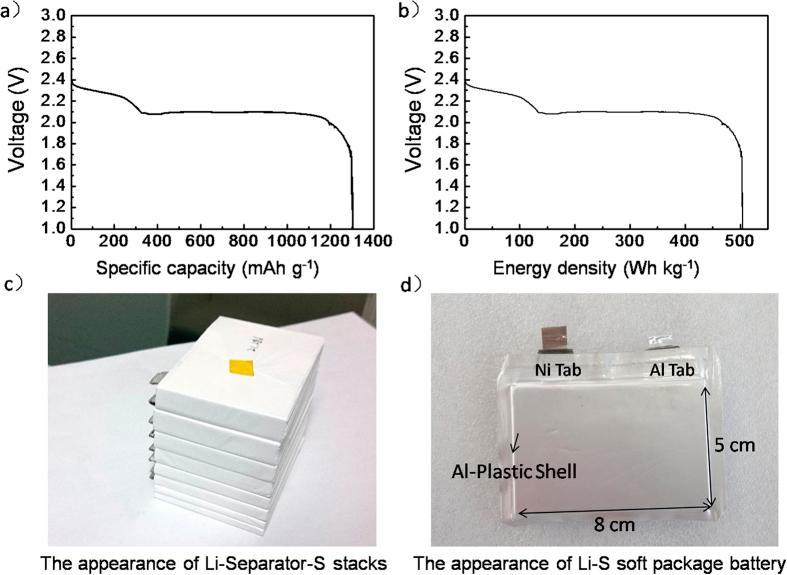

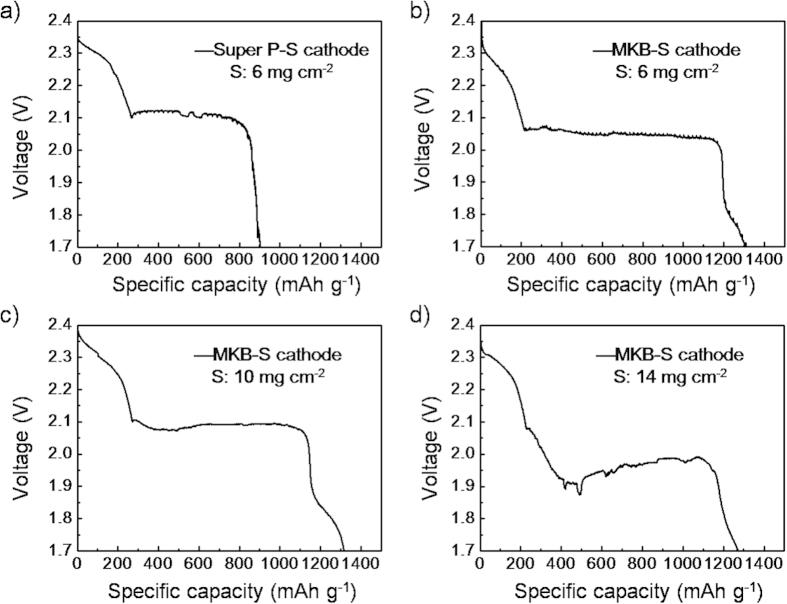

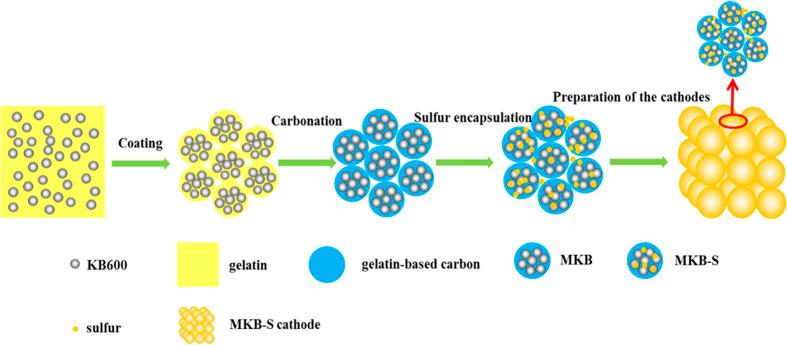

The lithium-sulfur primary batteries, as seldom reported in the previous literatures, were developed in this work. In order to maximize its practical energy density, a novel cauliflower-like hierarchical porous C/S cathode was designed, for facilitating the lithium-ions transport and sulfur accommodation. This kind of cathode could release about 1300 mAh g(-1) (S) capacity at sulfur loading of 6 ~ 14 mg cm(-2), and showed excellent shelf stability during a month test at room temperature. As a result, the assembled Li-S soft package battery achieved an energy density of 504 Wh kg(-1) (654 Wh L(-1)), which was the highest value ever reported to the best of our knowledge. This work might arouse the interests on developing primary Li-S batteries, with great potential for practical application.
锂硫一次电池此前在文献中鲜有报道,本研究对其进行了开发。为了使其实际能量密度最大化,设计了一种新型的菜花状分级多孔C/S阴极,以促进锂离子传输和硫容纳。这种阴极在硫负载量为6~14mg cm(-2)时可释放约1300 mAh g(-1)(S)的容量,并且在室温下一个月的测试中表现出优异的储存稳定性。结果,组装的锂硫软包电池实现了504 Wh kg(-1)(654 Wh L(-1))的能量密度,据我们所知,这是有史以来报道的最高值。这项工作可能会激发人们对开发一次锂硫电池的兴趣,具有巨大的实际应用潜力。
