Boone M A L M, Suppa M, Dhaenens F, Miyamoto M, Marneffe A, Jemec G B E, Del Marmol V, Nebosis R
Department of Dermatology, Hôpital Erasme, Université Libre de Bruxelles, Route de Lennik 808, 1070, Brussels, Belgium.
Research Department, Agfa HealthCare, Mortsel, Belgium.
Arch Dermatol Res. 2016 Jan;308(1):7-20. doi: 10.1007/s00403-015-1608-5. Epub 2015 Nov 13.

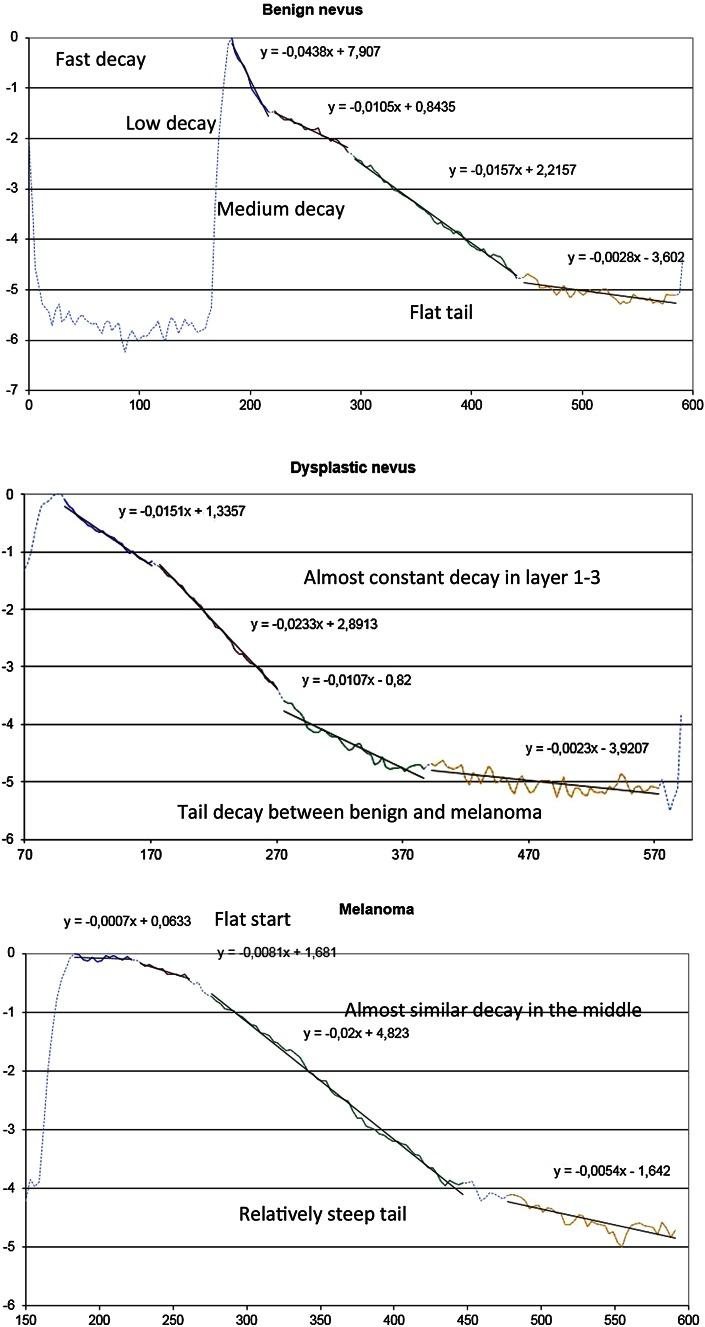

One of the most challenging problems in clinical dermatology is the early detection of melanoma. Reflectance confocal microscopy (RCM) is an added tool to dermoscopy improving considerably diagnostic accuracy. However, diagnosis strongly depends on the experience of physicians. High-definition optical coherence tomography (HD-OCT) appears to offer additional structural and cellular information on melanocytic lesions complementary to that of RCM. However, the diagnostic potential of HD-OCT seems to be not high enough for ruling out the diagnosis of melanoma if based on morphology analysis. The aim of this paper is first to quantify in vivo optical properties such as light attenuation in melanocytic lesions by HD-OCT. The second objective is to determine the best critical value of these optical properties for melanoma diagnosis. The technique of semi-log plot whereby an exponential function becomes a straight line has been implemented on HD-OCT signals coming from four successive skin layers (epidermis, upper papillary dermis, deeper papillary dermis and superficial reticular dermis). This permitted the HD-OCT in vivo measurement of skin entrance signal (SES), relative attenuation factor normalized for the skin entrance signal (µ raf1) and half value layer (z 1/2). The diagnostic accuracy of HD-OCT for melanoma detection based on the optical properties, µ raf1 , SES and z 1/2 was high (95.6, 82.2 and 88.9 %, respectively). High negative predictive values could be found for these optical properties (96.7, 89.3 and 96.3 %, respectively) compared to morphologic assessment alone (89.9 %), reducing the risk of mistreating a malignant lesion to a more acceptable level (3.3 % instead of 11.1 %). HD-OCT seems to enable the combination of in vivo morphological analysis of cellular and 3-D micro-architectural structures with in vivo analysis of optical properties of tissue scatterers in melanocytic lesions. In vivo HD-OCT analysis of optical properties permits melanoma diagnosis with higher accuracy than in vivo HD-OCT analysis of morphology alone.
临床皮肤科最具挑战性的问题之一是黑色素瘤的早期检测。反射式共聚焦显微镜(RCM)是一种辅助皮肤镜检查的工具,可显著提高诊断准确性。然而,诊断很大程度上取决于医生的经验。高清光学相干断层扫描(HD-OCT)似乎能提供有关黑素细胞性病变的额外结构和细胞信息,与RCM互补。然而,如果基于形态学分析,HD-OCT的诊断潜力似乎不足以排除黑色素瘤的诊断。本文的目的首先是通过HD-OCT对黑素细胞性病变中的体内光学特性(如光衰减)进行量化。第二个目标是确定这些光学特性用于黑色素瘤诊断的最佳临界值。已对来自四个连续皮肤层(表皮、乳头层上部真皮、乳头层深部真皮和网状真皮浅层)的HD-OCT信号实施了半对数图技术,通过该技术指数函数可变为直线。这使得HD-OCT能够在体内测量皮肤入射信号(SES)、相对于皮肤入射信号归一化的相对衰减因子(µraf1)和半值层(z1/2)。基于光学特性µraf1、SES和z1/2的HD-OCT检测黑色素瘤的诊断准确性很高(分别为95.6%、82.2%和88.9%)。与单独的形态学评估(89.9%)相比,这些光学特性具有较高的阴性预测值(分别为96.7%、89.3%和96.3%),将误诊恶性病变的风险降低到了更可接受的水平(从11.1%降至3.3%)。HD-OCT似乎能够将细胞和三维微结构的体内形态学分析与黑素细胞性病变中组织散射体的光学特性的体内分析相结合。对光学特性进行体内HD-OCT分析比单独对形态学进行体内HD-OCT分析能更准确地诊断黑色素瘤。
