含锶纳米管涂层钛植入物的体内骨整合

In vivo osseointegration of Ti implants with a strontium-containing nanotubular coating.

作者信息

Dang Yonggang, Zhang Li, Song Wen, Chang Bei, Han Tianxiao, Zhang Yumei, Zhao Lingzhou

机构信息

Department of Prosthetic Dentistry, The Fourth Military Medical University, Xi'an, People's Republic of China.

Department of Periodontology, School of Stomatology, State Key Laboratory of Military Stomatology, The Fourth Military Medical University, Xi'an, People's Republic of China.

出版信息

Int J Nanomedicine. 2016 Mar 14;11:1003-11. doi: 10.2147/IJN.S102552. eCollection 2016.

Abstract

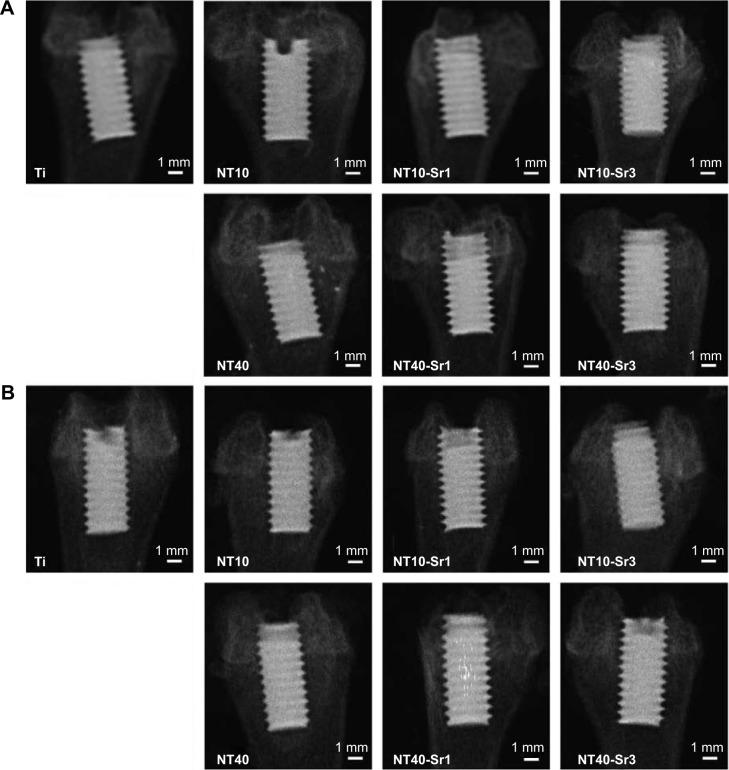

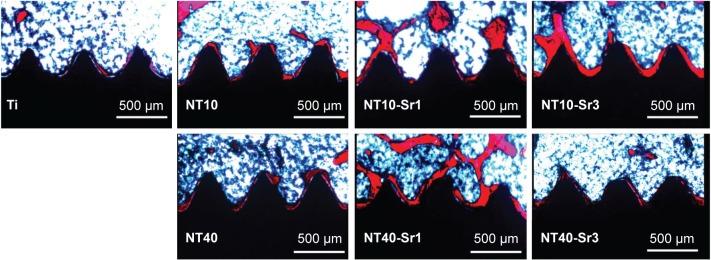

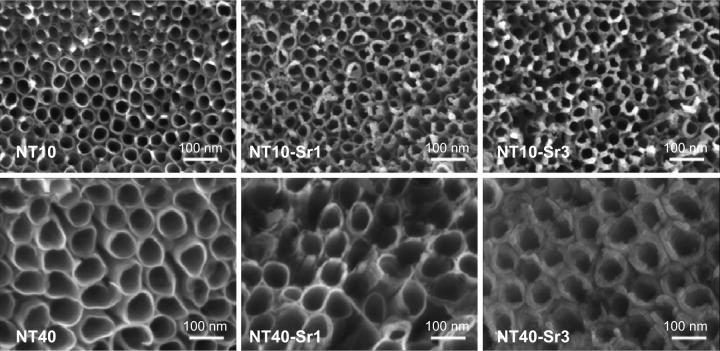

Novel biomedical titanium (Ti) implants with high osteogenic ability for fast and good osseointegration under normal as well as osteoporotic conditions are urgently needed. Expanding on our previous in vitro results, we hypothesized that nanotubular, strontium-loaded (NT-Sr) structures on Ti implants would have favorable osteogenic effects and evaluated the in vivo osseointegration of these implants in rats. The structures with nanotubes of different diameters were fabricated by electrochemical anodization at 10 and 40 V, and the amounts of Sr loaded were adjusted by using two hydrothermal treatment times of 1 and 3 hours. Qualitative microcomputed tomography in two and three dimensions showed that the NT-Sr formed with an anodization voltage of 10 V and hydrothermal treatment time of 3 hours best supported bone growth in vivo. Histomorphometric examination of osseointegration also showed that more newly formed bone was found at its surface. The bone-implant contact percentage was highest (92.48%±0.76%) at 12 weeks. In conclusion, the NT-Sr formed with an anodization voltage of 10 V and hydrothermal treatment time of 3 hours showed excellent osteogenic properties, making it an attractive option for Ti surface modification with considerable clinical potential.

摘要

迫切需要新型生物医学钛(Ti)植入物,其具有高成骨能力,能在正常以及骨质疏松条件下实现快速且良好的骨整合。基于我们之前的体外实验结果,我们推测钛植入物上的纳米管负载锶(NT-Sr)结构将具有良好的成骨作用,并评估了这些植入物在大鼠体内的骨整合情况。通过在10V和40V下进行电化学阳极氧化制备具有不同直径纳米管的结构,并通过使用1小时和3小时的两个水热处理时间来调整锶的负载量。二维和三维定性微计算机断层扫描显示,阳极氧化电压为10V且水热处理时间为3小时形成的NT-Sr在体内对骨生长的支持效果最佳。骨整合的组织形态计量学检查还表明,在其表面发现了更多新形成的骨。在12周时,骨-植入物接触百分比最高(92.48%±0.76%)。总之,阳极氧化电压为10V且水热处理时间为3小时形成的NT-Sr显示出优异的成骨特性,使其成为具有相当临床潜力的钛表面改性的有吸引力选择。
