Wu Tung-Lin, Mishra Arabinda, Wang Feng, Yang Pai-Feng, Gore John C, Chen Li Min
Vanderbilt University Institute of Imaging Science Nashville TN USA; Biomedical Engineering Vanderbilt University Nashville TN USA.
Vanderbilt University Institute of Imaging Science Nashville TN USA; Radiology and Radiological Sciences Vanderbilt University Nashville TN USA.
Brain Behav. 2016 Oct 11;6(12):e00591. doi: 10.1002/brb3.591. eCollection 2016 Dec.
Correlated low-frequency fluctuations of resting-state functional magnetic resonance imaging (rsfMRI) signals have been widely used for inferring intrinsic brain functional connectivity (FC). In animal studies, accurate estimate of anesthetic effects on rsfMRI signals is demanded for reliable interpretations of FC changes. We have previously shown that inter-regional FC can reliably delineate local millimeter-scale circuits within digit representations of primary somatosensory cortex (S1) subregions (areas 3a, 3b, and 1) in monkeys under isoflurane anesthesia. The goals of this study are to determine (1) the general effects of isoflurane on rsfMRI signals in the S1 circuit and (2) whether the effects are functional- and regional- dependent, by quantifying the relationships between isoflurane levels, power and inter-regional correlation coefficients in digit and face regions of distinct S1 subregions.
Functional MRI data were collected from male adult squirrel monkeys at three different isoflurane levels (1.25%, 0.875%, and 0.5%). All scans were acquired on a 9.4T magnet with a 3-cm-diameter surface transmit-receive coil centered over the S1 cortex. Power and seed-based inter-regional functional connectivity analyses were subsequently performed.

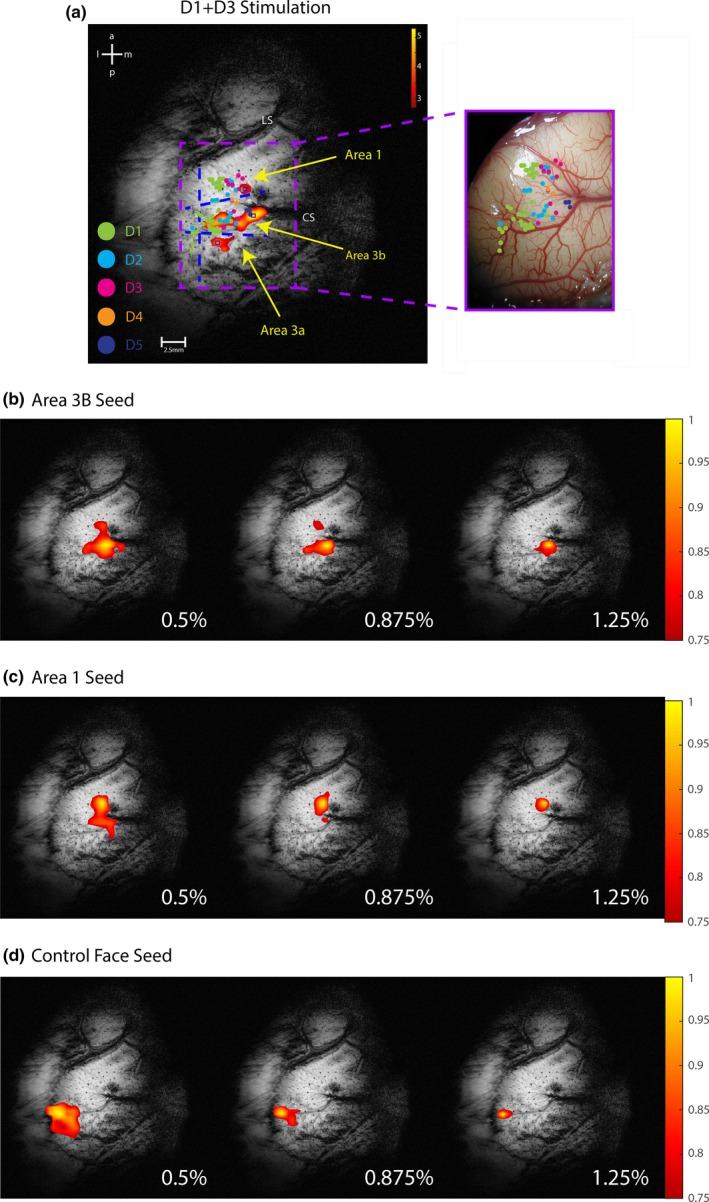

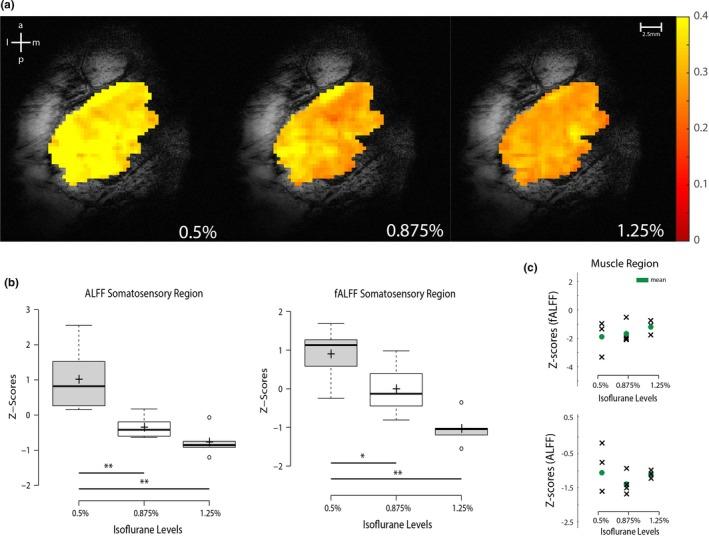

As anesthesia level increased, we observed (1) diminishing amplitudes of signal fluctuations, (2) reduced power of fluctuations in the low-frequency band used for connectivity measurements, (3) decreased inter-voxel connectivity around seed regions, and (4) weakened inter-regional FC across all pairs of regions of interest (digit-to-digit). The low-frequency power measures derived from rsfMRI signals from control muscle regions, however, did not exhibit any isoflurane level-related changes. Within the isoflurane dosage range we tested, the inter-regional functional connectivity differences were still detectable, and the effects of isoflurane did not differ across region-of-interest (ROI) pairs.
Our data demonstrate that isoflurane induced similar dose-dependent suppressive effects on the power of rsfMRI signals and local fine-scale FC across functionally related but distinct S1 subregions.
静息态功能磁共振成像(rsfMRI)信号的相关低频波动已被广泛用于推断大脑内在功能连接性(FC)。在动物研究中,为了可靠地解释FC变化,需要准确估计麻醉对rsfMRI信号的影响。我们之前已经表明,在异氟烷麻醉下,区域间FC能够可靠地描绘猴子初级体感皮层(S1)子区域(3a、3b和1区)数字表征内的局部毫米级回路。本研究的目的是通过量化异氟烷水平、功率以及不同S1子区域数字和面部区域之间的区域间相关系数之间的关系,确定(1)异氟烷对S1回路中rsfMRI信号的一般影响,以及(2)这些影响是否与功能和区域相关。
从成年雄性松鼠猴在三种不同异氟烷水平(1.25%、0.875%和0.5%)下收集功能磁共振成像数据。所有扫描均在9.4T磁体上进行,使用直径为3厘米的表面发射-接收线圈,该线圈以S1皮层为中心。随后进行了功率和基于种子点的区域间功能连接性分析。
随着麻醉水平的提高,我们观察到(1)信号波动幅度减小,(2)用于连接性测量的低频带波动功率降低,(3)种子区域周围的体素间连接性降低,以及(4)所有感兴趣区域对(数字对数字)之间的区域间FC减弱。然而,来自对照肌肉区域的rsfMRI信号得出的低频功率测量值未表现出任何与异氟烷水平相关的变化。在我们测试的异氟烷剂量范围内,区域间功能连接性差异仍然可以检测到,并且异氟烷的影响在感兴趣区域(ROI)对之间没有差异。
我们的数据表明,异氟烷对功能相关但不同的S1子区域的rsfMRI信号功率和局部精细尺度FC产生了类似的剂量依赖性抑制作用。
