水液压凝胶驱动器及其在水中的光声伪装机器人。

Hydraulic hydrogel actuators and robots optically and sonically camouflaged in water.

机构信息

Department of Mechanical Engineering, Massachusetts Institute of Technology, Cambridge, Massachusetts 02139, USA.

Department of Civil and Environmental Engineering, Massachusetts Institute of Technology, Cambridge, Massachusetts 02139, USA.

出版信息

Nat Commun. 2017 Feb 1;8:14230. doi: 10.1038/ncomms14230.

Abstract

Sea animals such as leptocephali develop tissues and organs composed of active transparent hydrogels to achieve agile motions and natural camouflage in water. Hydrogel-based actuators that can imitate the capabilities of leptocephali will enable new applications in diverse fields. However, existing hydrogel actuators, mostly osmotic-driven, are intrinsically low-speed and/or low-force; and their camouflage capabilities have not been explored. Here we show that hydraulic actuations of hydrogels with designed structures and properties can give soft actuators and robots that are high-speed, high-force, and optically and sonically camouflaged in water. The hydrogel actuators and robots can maintain their robustness and functionality over multiple cycles of actuations, owing to the anti-fatigue property of the hydrogel under moderate stresses. We further demonstrate that the agile and transparent hydrogel actuators and robots perform extraordinary functions including swimming, kicking rubber-balls and even catching a live fish in water.

摘要

海洋动物,如幼鳗,会发展出由活跃透明水凝胶组成的组织和器官,以实现水中的敏捷运动和自然伪装。能够模仿幼鳗能力的基于水凝胶的致动器将在各个领域开辟新的应用。然而,现有的水凝胶致动器主要是渗透驱动的,本质上速度低/力小;而且它们的伪装能力还没有被探索过。在这里,我们展示了具有设计结构和性能的水凝胶的液压致动可以为软致动器和机器人提供高速、高力、在水中具有光学和声学伪装的能力。由于水凝胶在适度应力下具有抗疲劳特性,水凝胶致动器和机器人可以在多次致动循环中保持其坚固性和功能性。我们进一步证明,灵活透明的水凝胶致动器和机器人具有非凡的功能,包括游泳、踢橡皮球,甚至在水中捕捉活鱼。

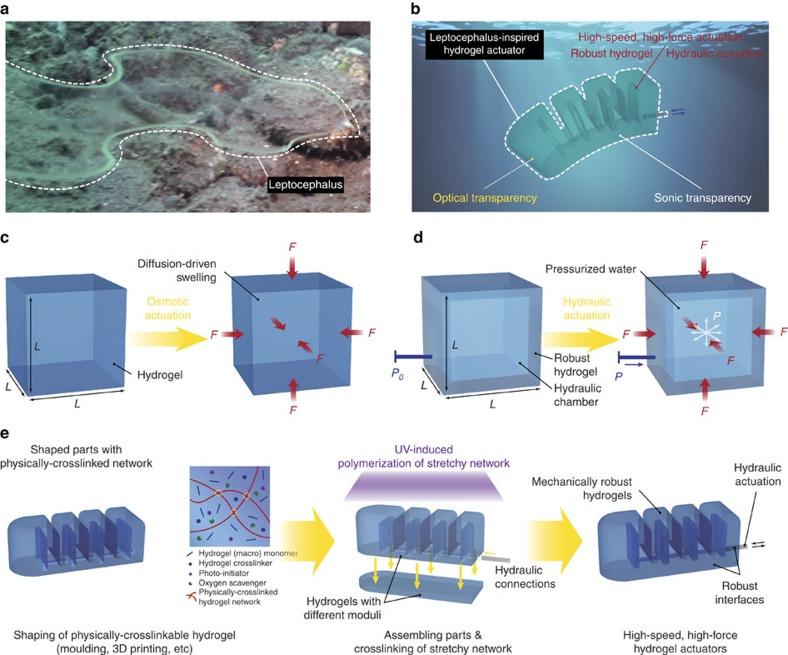

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/1666/5296644/c5345db17d84/ncomms14230-f1.jpg
