College of Chemistry and Materials Science, Jinan University, Guangzhou 510632, China.
Department of Physics, University of Illinois, Urbana, Illinois 61801, USA.
Nat Commun. 2017 Jun 8;8:15778. doi: 10.1038/ncomms15778.

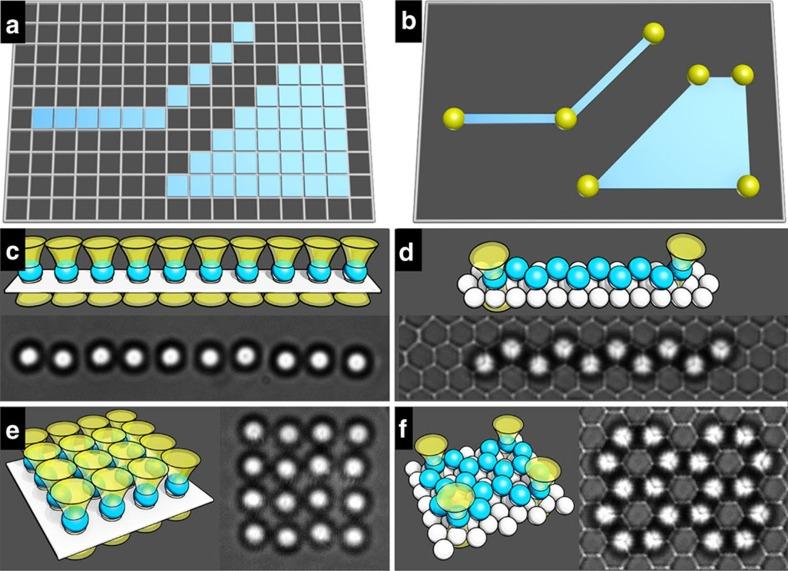

The key to spontaneous and directed assembly is to encode the desired assembly information to building blocks in a programmable and efficient way. In computer graphics, raster graphics encodes images on a single-pixel level, conferring fine details at the expense of large file sizes, whereas vector graphics encrypts shape information into vectors that allow small file sizes and operational transformations. Here, we adapt this raster/vector concept to a 2D colloidal system and realize 'vector assembly' by manipulating particles on a colloidal monolayer substrate with optical tweezers. In contrast to raster assembly that assigns optical tweezers to each particle, vector assembly requires a minimal number of optical tweezers that allow operations like chain elongation and shortening. This vector approach enables simple uniform particles to form a vast collection of colloidal arenes and colloidenes, the spontaneous dissociation of which is achieved with precision and stage-by-stage complexity by simply removing the optical tweezers.
自发和定向组装的关键是通过可编程和高效的方式将所需的组装信息编码到构建块中。在计算机图形学中,光栅图形在单个像素级别上对图像进行编码,以牺牲大文件大小为代价获得精细细节,而矢量图形则将形状信息加密到允许小文件大小和操作变换的向量中。在这里,我们将这种光栅/矢量概念应用于二维胶体系统,并通过使用光学镊子在胶体单层衬底上操纵粒子来实现“矢量组装”。与将光学镊子分配给每个粒子的光栅组装相比,矢量组装只需要最少数量的光学镊子,这些光学镊子允许进行链的延长和缩短等操作。这种矢量方法使得简单的均匀粒子能够形成大量胶体芳烃和胶体烯,通过简单地移除光学镊子,可以精确地、逐步地实现其自发解离。
