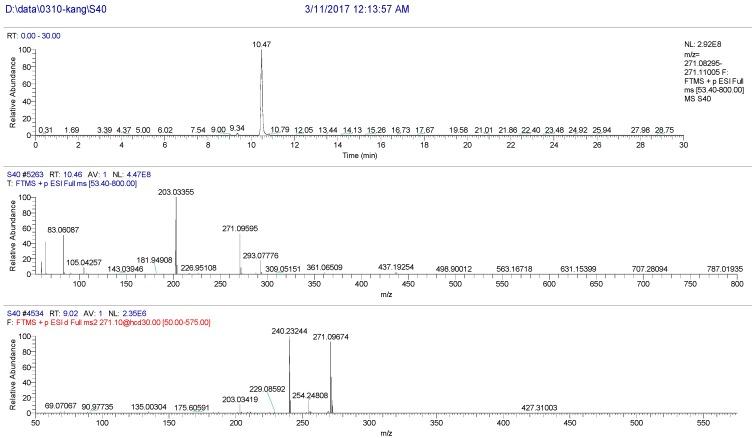

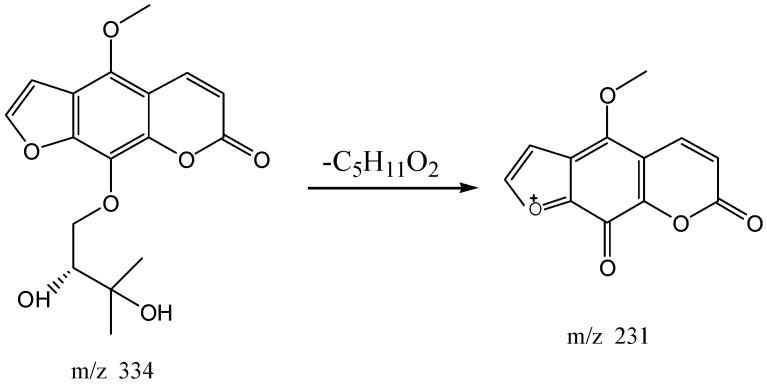

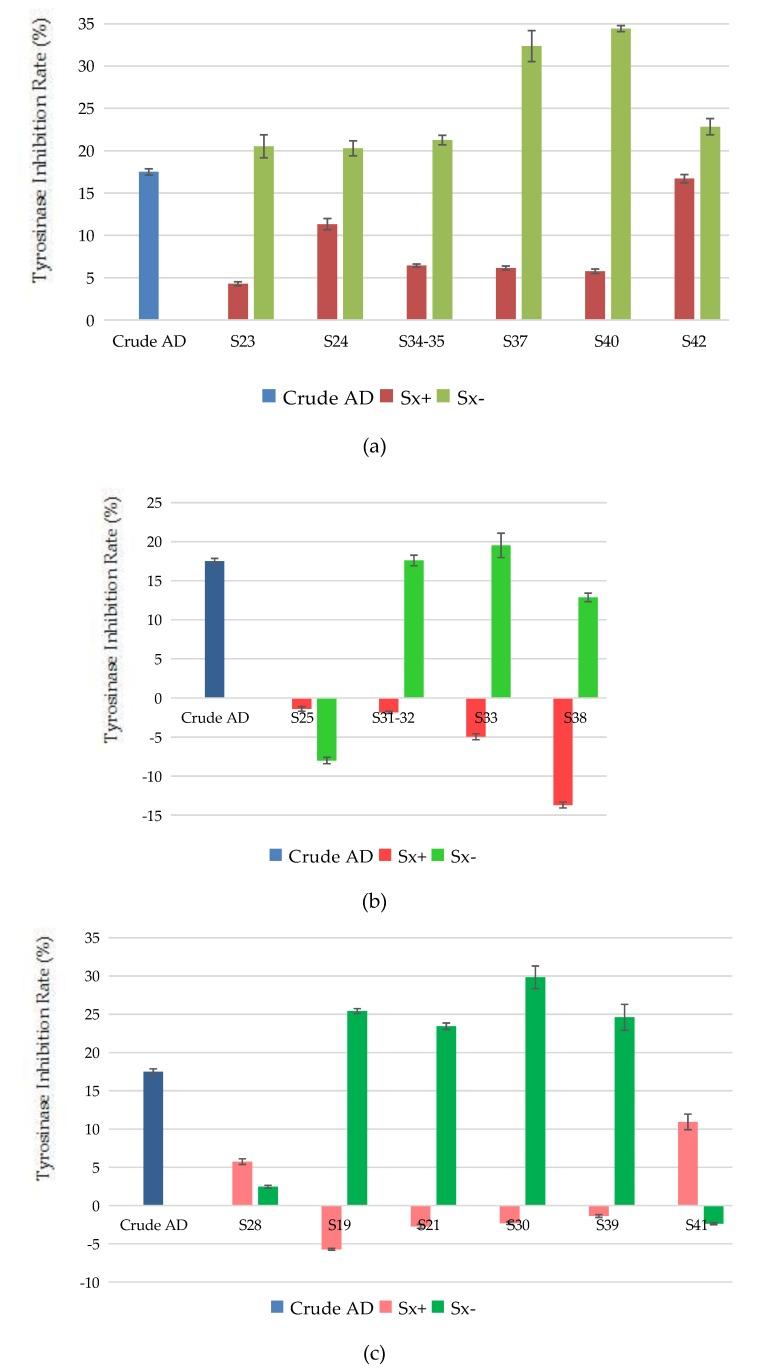

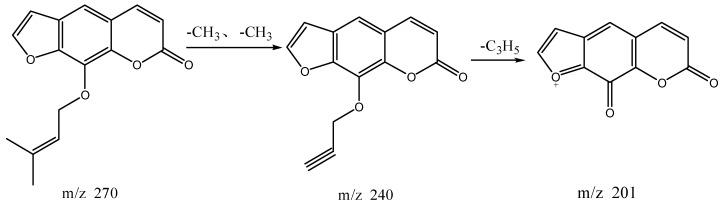

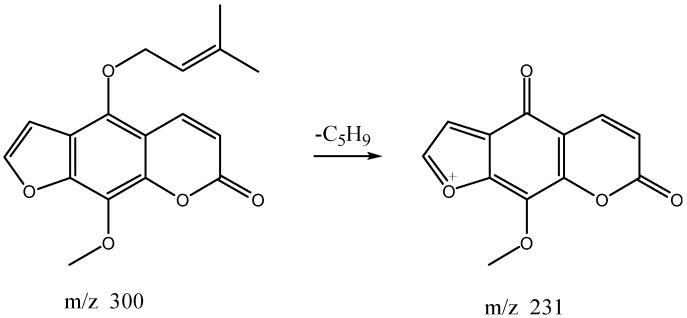

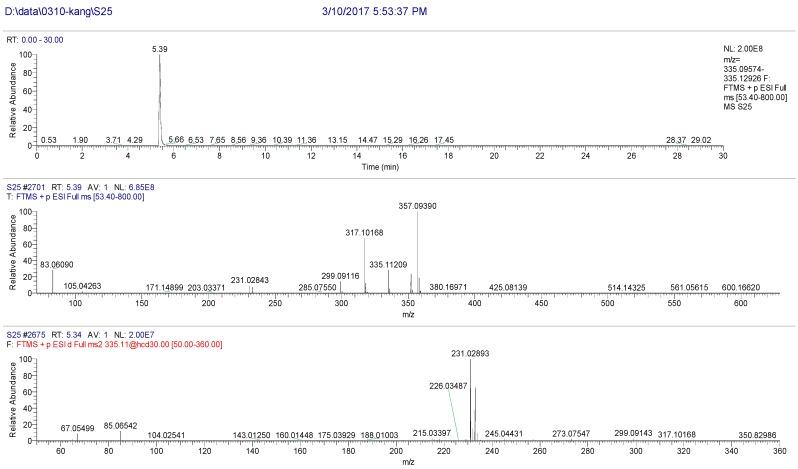

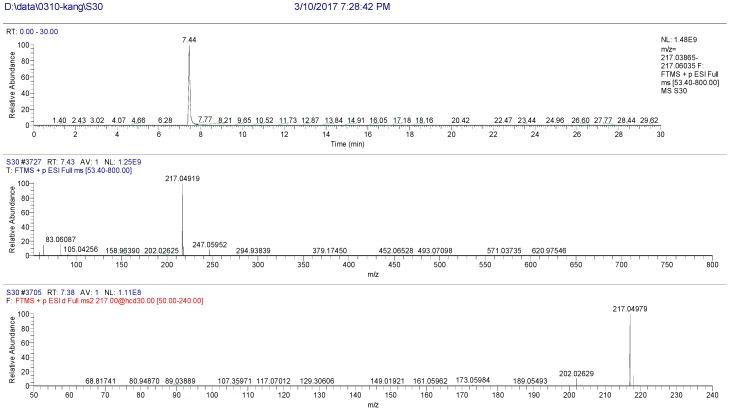

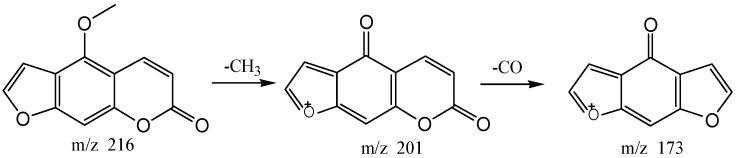

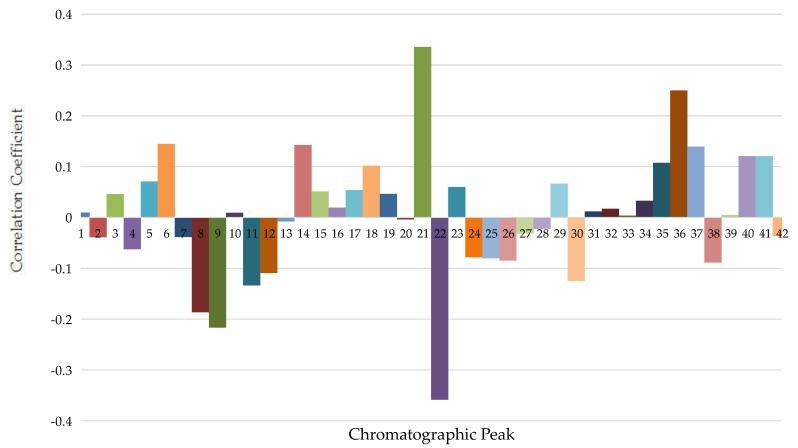

Different extracts of were available for whitening or treating vitiligo clinically. They showed inhibitory or activating effects on tyrosinase, a rate-limiting enzyme of melanogenesis. This study aimed to identify active compounds on tyrosinase in water extract of Radix. We applied spectrum-effect relationship and component knock-out methods to make it clear. HPLC was used to obtain the specific chromatograms. The effects on tyrosinase activity were examined by measuring the oxidation rate of levodopa in vitro. Partial least squares method was used to examine the spectrum-effect relationships. The knocked-out samples were prepared by HPLC method, and the identification of knocked-out compounds was conducted by the high performance liquid chromatography-four stage rod-electrostatic field orbit trap high resolution mass spectrometry. Results showed that S6, S14, S18, S21, S35, S36, S37, S40, and S41 were positively correlated to inhibitory activity of on tyrosinase whereas S9, S11, S8, S12, S22, and S30 were negatively correlated. When the concentration of each sample was 1 g·mL, equal to the amount of raw medicinal herbs, oxypeucedanin hydrate, imperatorin, cnidilin, and isoimperatorin had inhibitory effects on tyrosinase activity whereas byakangelicin and bergapten had activating effects.
