MOE Key Laboratory of Wooden Material Science and Application, Beijing Forestry University, Beijing, 100083, China.
Beijing Key Laboratory of Wood Science and Engineering, Beijing Forestry University, Beijing, 100083, China.
Sci Rep. 2017 Aug 29;7(1):9664. doi: 10.1038/s41598-017-10007-8.

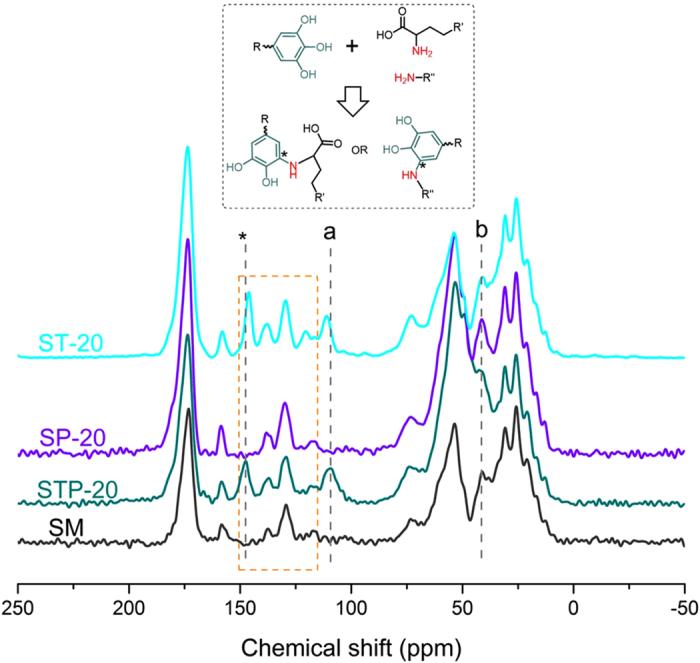

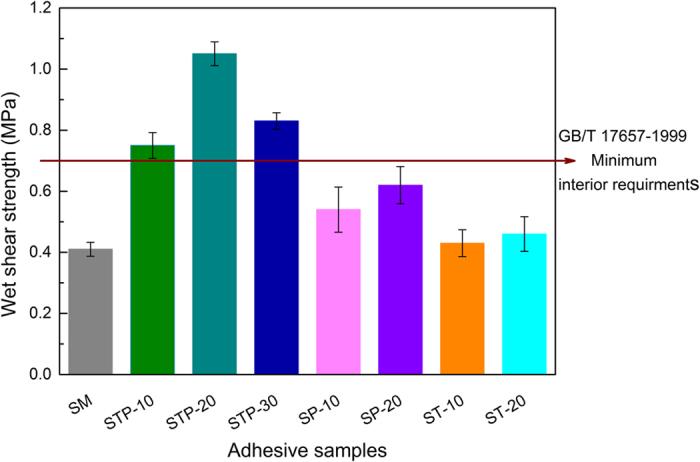

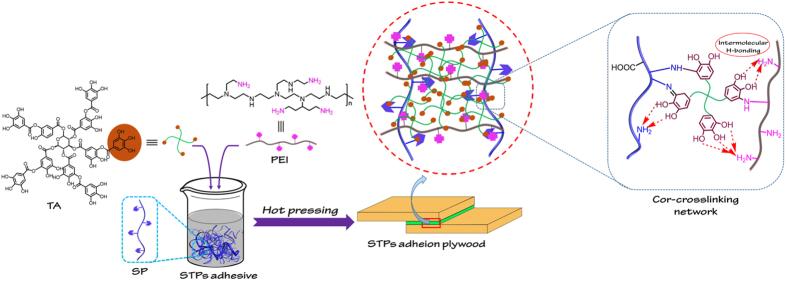

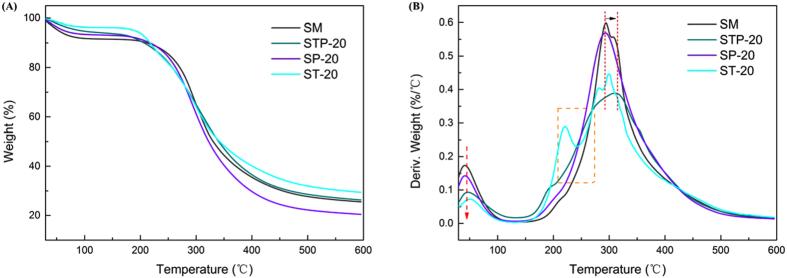

Novel soybean meal-based biomimetic (STP) adhesives were fabricated via soybean meal (SM) and enhanced by tannic acid (TA) and polyetheylenimine (PEI) (TAPI) co-crosslinking network based on natural polyphenol-inspired chemistry. The multiple physico-chemical interactions (including intermolecular H-bonding and covalent bonding) between the TAPI co-crosslinking system and SM matrices were examined by the Fourier transform infrared spectroscopy, solid-state C nuclear magnetic resonance, X-ray diffraction, thermogravimetric analysis, and scanning electron microscopy. The results showed that a dense, robust, and water-resistant adhesive layer was constructed between network-bound catechol moieties in the TAPI and SM system, endowing the STP adhesive with high wet bonding strength for plywood. As expected, TAPI-modified SM adhesives showed a 156.1% increase in wet bonding strength compared to the control SM adhesive. The adhesion meets standard requirements for interior-use plywood. Both the solid content and residual mass analysis also confirmed that the enhancement in the STP adhesive was attributable to the network crosslinking density and stiffness after integrating the TAPI system. Moreover, the thermal stability of the resultant STP adhesive exhibited a significant improvement. The proposed STP adhesive may be a promising cost-effective and wet-resistant bio-adhesive for the application in the wood composites industry.
新型大豆基仿生(STP)胶粘剂通过大豆粉(SM)和单宁酸(TA)和聚乙烯亚胺(PEI)(TAPI)共交联网络增强,该网络基于天然多酚启发的化学原理。通过傅里叶变换红外光谱、固态 C 核磁共振、X 射线衍射、热重分析和扫描电子显微镜研究了 TAPI 共交联系统与 SM 基质之间的多种物理化学相互作用(包括分子间氢键和共价键)。结果表明,在 TAPI 和 SM 系统中的网络结合儿茶酚部分之间构建了致密、坚固和耐水的胶黏剂层,使 STP 胶黏剂具有用于胶合板的高湿胶合强度。不出所料,与对照 SM 胶黏剂相比,TAPI 改性 SM 胶黏剂的湿胶合强度提高了 156.1%。该胶黏剂的黏合性能符合内部使用胶合板的标准要求。固含量和残留质量分析也证实,在整合 TAPI 系统后,STP 胶黏剂的增强归因于网络交联密度和刚性。此外,所得 STP 胶黏剂的热稳定性有了显著提高。所提出的 STP 胶黏剂可能是一种有前途的具有成本效益和耐湿性的生物胶黏剂,可应用于木材复合材料行业。
