a Department of Radiology , Shanghai Tenth People's Hospital, Tongji University School of Medicine , Shanghai , P. R. China.
b State Key Laboratory for Modifcation of Chemical Fibers and Polymer Materials, College of Chemistry, Chemical Engineering and Biotechnology , Donghua University , Shanghai , P. R. China.
Drug Deliv. 2018 Nov;25(1):178-186. doi: 10.1080/10717544.2017.1422299.

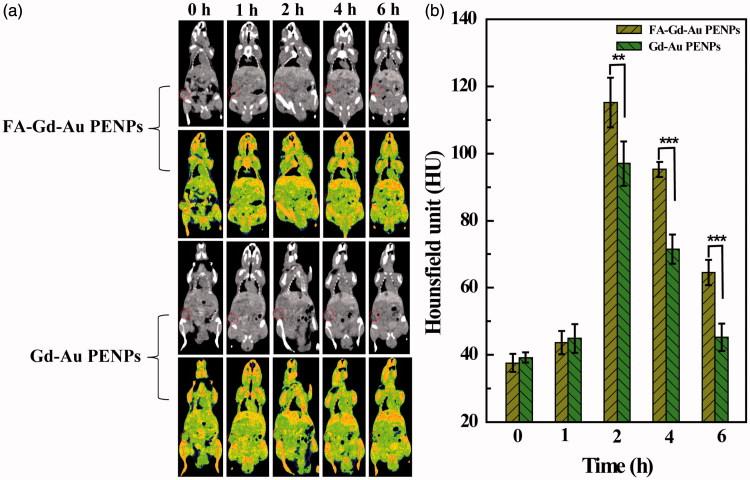

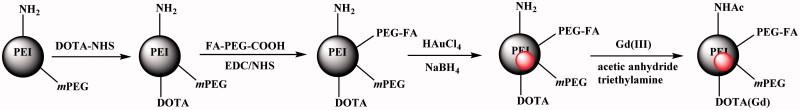

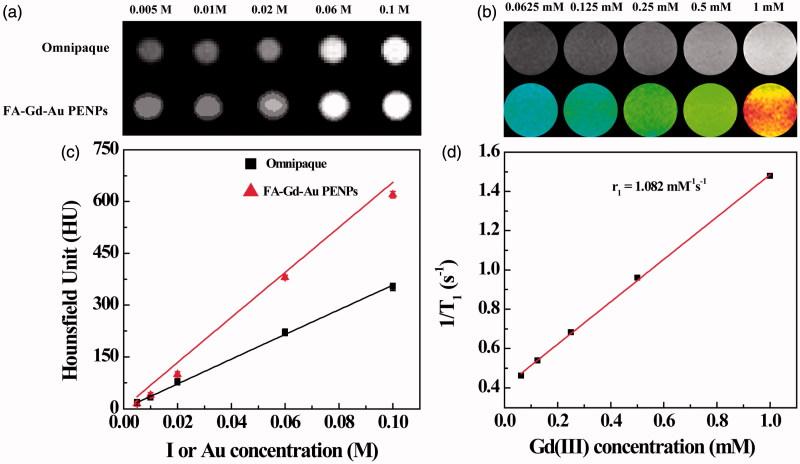

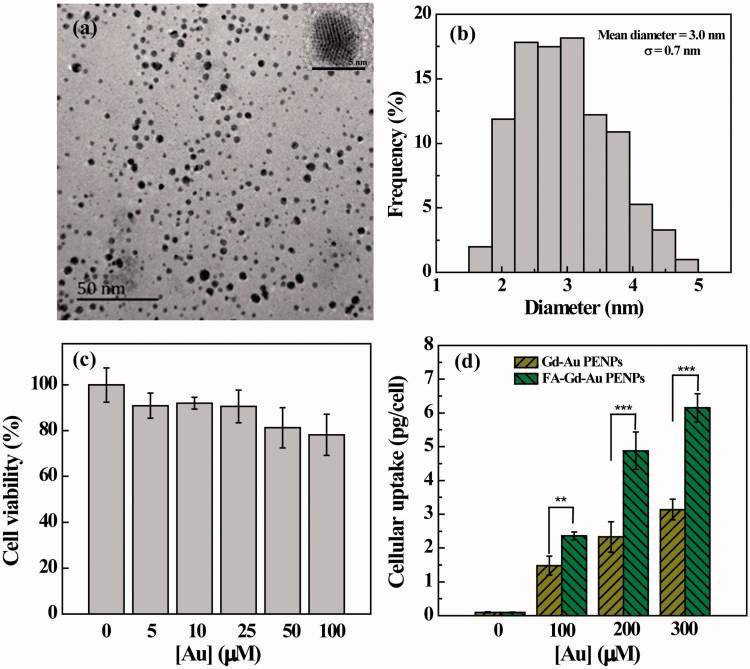

We report the construction and characterization of polyethylenimine (PEI)-entrapped gold nanoparticles (AuNPs) chelated with gadolinium (Gd) ions for targeted dual mode tumor CT/MR imaging in vivo. In this work, polyethylene glycol (PEG) monomethyl ether-modified PEI was sequentially modified with Gd chelator and folic acid (FA)-linked PEG (FA-PEG) was used as a template to synthesize AuNPs, followed by Gd(III) chelation and acetylation of the remaining PEI surface amines. The formed FA-targeted PEI-entrapped AuNPs loaded with Gd (FA-Gd-Au PENPs) were well characterized in terms of structure, composition, morphology, and size distribution. We show that the FA-Gd-Au PENPs with an Au core size of 3.0 nm are water dispersible, colloidally stable, and noncytotoxic in a given concentration range. Thanks to the coexistence of Au and Gd elements within one nanoparticulate system, the FA-Gd-Au PENPs display a better X-ray attenuation property than clinical iodinated contrast agent (e.g. Omnipaque) and reasonable r relaxivity (1.1 mMs). These properties allow the FA-targeted particles to be used as an efficient nanoprobe for dual mode CT/MR imaging of tumors with excellent FA-mediated targeting specificity. With the demonstrated organ biocompatibility, the designed FA-Gd-Au PENPs may hold a great promise to be used as a nanoprobe for CT/MR dual mode imaging of different FA receptor-overexpressing tumors.
我们报告了聚乙二烯亚胺(PEI)包埋的金纳米粒子(AuNPs)的构建和特性,这些纳米粒子螯合了钆(Gd)离子,用于体内靶向双模肿瘤 CT/MR 成像。在这项工作中,聚乙二醇(PEG)单甲醚修饰的 PEI 依次用 Gd 螯合剂和叶酸(FA)连接的 PEG(FA-PEG)修饰,作为模板合成 AuNPs,然后进行 Gd(III)螯合和剩余 PEI 表面胺的乙酰化。形成的 FA 靶向 PEI 包埋的负载 Gd 的 AuNPs(FA-Gd-Au PENPs)在结构、组成、形态和尺寸分布方面得到了很好的表征。我们表明,具有 3.0nm Au 核尺寸的 FA-Gd-Au PENPs 在给定浓度范围内是水分散的、胶体稳定的且无细胞毒性的。由于 Au 和 Gd 元素存在于一个纳米颗粒系统中,FA-Gd-Au PENPs 表现出比临床碘造影剂(如 Omnipaque)更好的 X 射线衰减特性和合理的 r 弛豫率(1.1mMs)。这些特性使得靶向 FA 的颗粒能够用作肿瘤双模 CT/MR 成像的有效纳米探针,具有优异的 FA 介导的靶向特异性。由于具有良好的器官生物相容性,所设计的 FA-Gd-Au PENPs 有望成为不同 FA 受体过表达肿瘤 CT/MR 双模成像的纳米探针。
