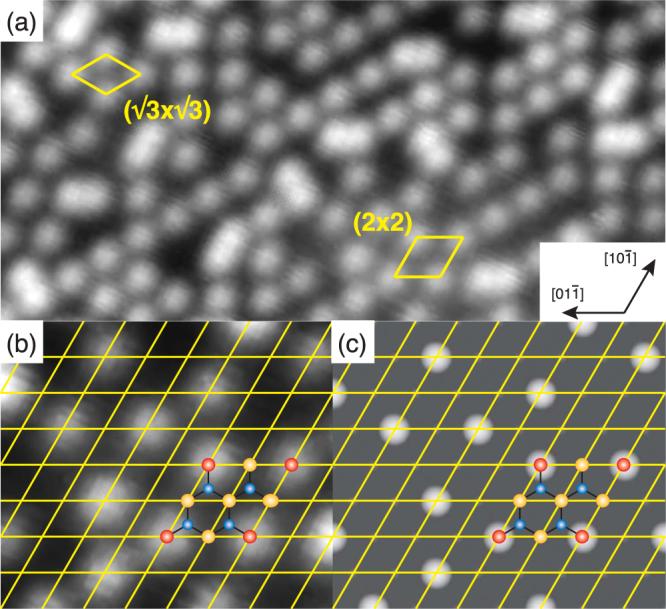

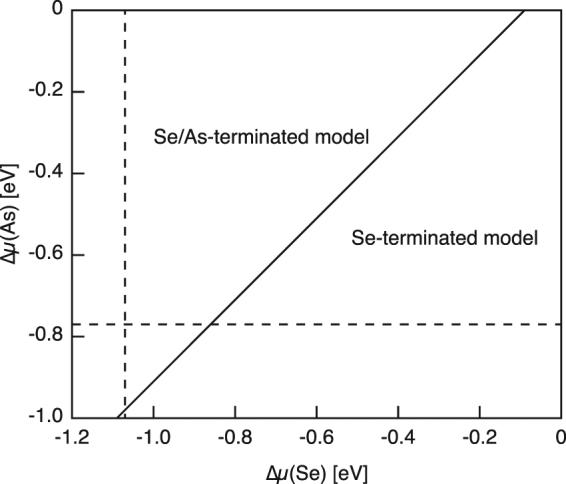

We have systematically studied the atomic structure and electronic properties of the Se-treated GaAs(111)B surface using scanning tunneling microscopy, reflection high-energy electron diffraction, x-ray photoelectron spectroscopy, and first-principles calculations. We have found that Se atoms substitute [Formula: see text] monolayer of As atoms at the outermost layer of the ideal (111)B surface. Charge transfer from Se to As eliminates all of unsaturated dangling bonds, so that the surface is electronically stabilized, leaving no surface states in the mid-gap region.
我们使用扫描隧道显微镜、反射高能电子衍射、X 射线光电子能谱和第一性原理计算,系统地研究了 Se 处理的 GaAs(111)B 表面的原子结构和电子性质。我们发现,Se 原子取代了理想 (111)B 表面最外层的[Formula: see text]单层 As 原子。Se 向 As 的电荷转移消除了所有不饱和悬空键,从而使表面电子稳定,在能隙中间区域没有表面态。
