BACKGROUND

Conventional echocardiography is not sensitive enough to assess left ventricular (LV) dysfunction in hypertrophic cardiomyopathy (HCM) patients. This research attempts to find a new ultrasonic technology to better assess LV diastolic function, systolic function, and myocardial longitudinal and circumferential systolic strain of segments with different thicknesses in HCM patients.

METHODS

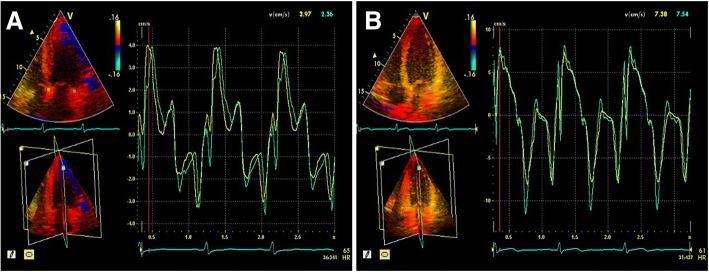

This study included 50 patients with HCM and 40 healthy subjects as controls. The peak early and late mitral annulus diastolic velocities at six loci (E' and A', respectively) and the E'/A' ratio were measured using real-time tri-plane echocardiography and quantitative tissue velocity imaging (RT-3PE-QTVI). The mean value of E' at six loci (E') was obtained for the calculation of E/E' ratio. The LV end-diastolic volume (LVEDV), LV end-systolic volume (LVESV), LV stroke volume (LVSV), and LV ejection fraction (LVEF) were measured using real-time three-dimensional echocardiography (RT-3DE). LV myocardial longitudinal peak systolic strain (LPSS) and circumferential peak systolic strain (CPSS) in the apical-middle-basal segments (LPSS, LPSS, LPSS; CPSS, CPSS, and CPSS, respectively) were obtained using a software for two-dimensional speckle tracking imaging (2D-STI). According to the different segmental thicknesses (STs) in each HCM patient, the values (LPSS and CPSS) of all the myocardial segments were categorized into three groups and the respective averages were computed.

RESULTS

The E', A', and, E'/A' ratio in HCM patients were lower than those in the controls (all p < 0.001), while the E/E' ratio in HCM patients was higher than that in the controls (p < 0.001). The LVEDV, LVSV, and LVEF were significantly lower in HCM patients than in controls (all p < 0.001). In HCM patients, the LPSS, LPSS, LPSS, CPSS, CPSS and CPSS and the LPSS and CPSS of LV segments with different thicknesses were all significantly reduced (all p < 0.001).

CONCLUSIONS

In HCM patients, myocardial dysfunction was widespread not only in the obviously hypertrophic segments but also in the non-hypertrophic segments; the LV systolic and diastolic functions were damaged, even with a normal LVEF. LV diastolic dysfunction, systolic dysfunction, and myocardial deformation impairment in HCM patients can be sensitively revealed by RT-3PE-QTVI, RT-3DE, and 2D-STI.
