Univ Lyon, Université Lyon 1, Centre Léon Bérard, INSERM, LabTAU, F-69003, LYON, France.
Department of Radiology, School of Medicine, Stanford University, 94305 Stanford, USA.
Theranostics. 2018 Oct 6;8(18):5126-5142. doi: 10.7150/thno.27221. eCollection 2018.

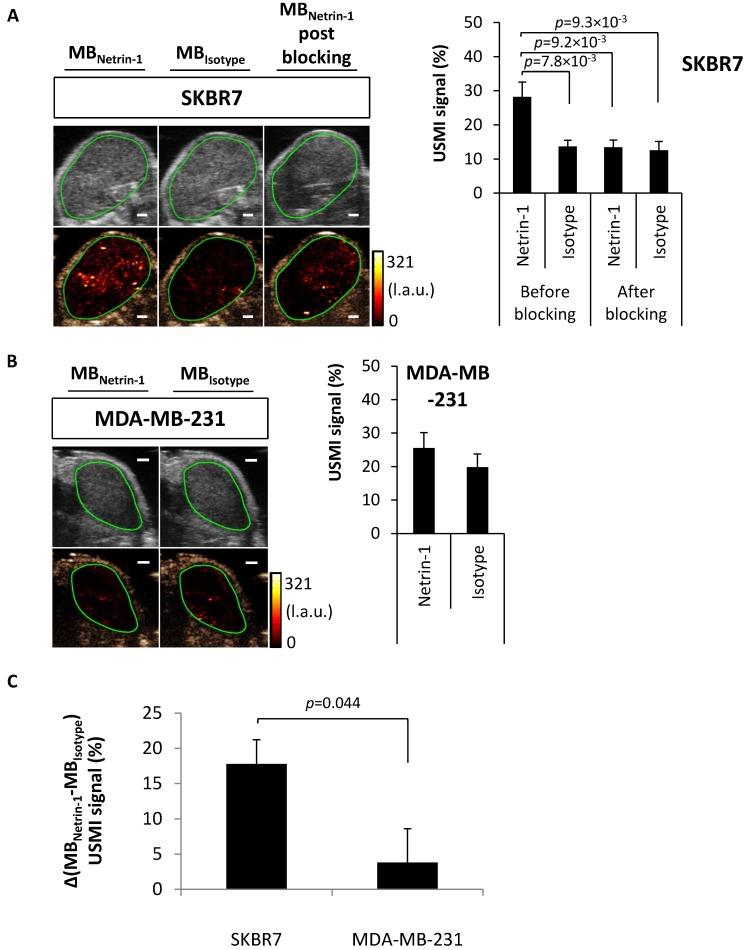

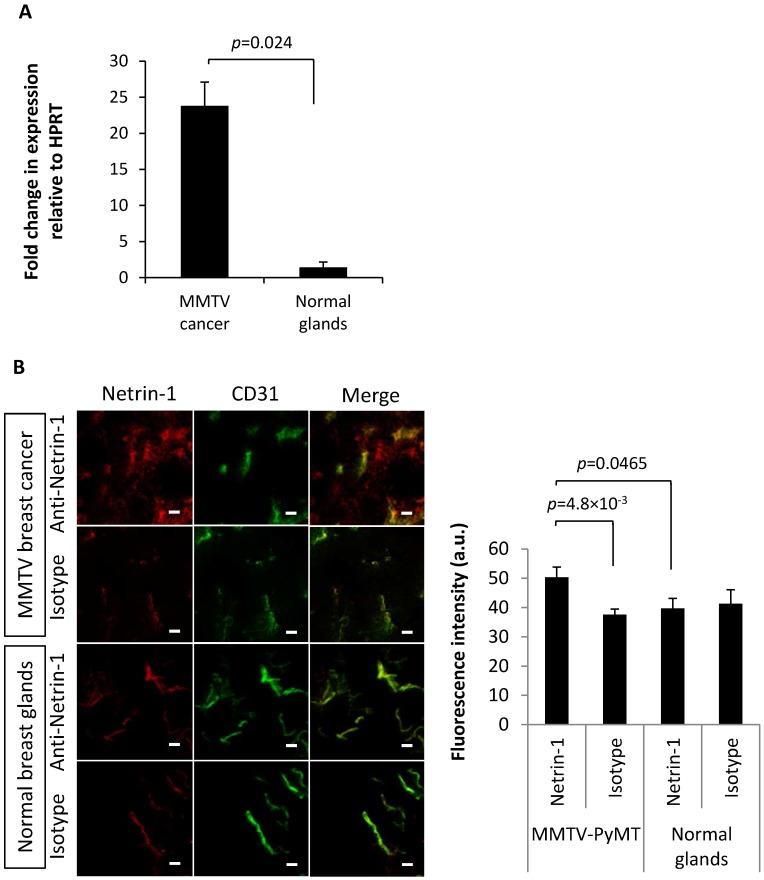

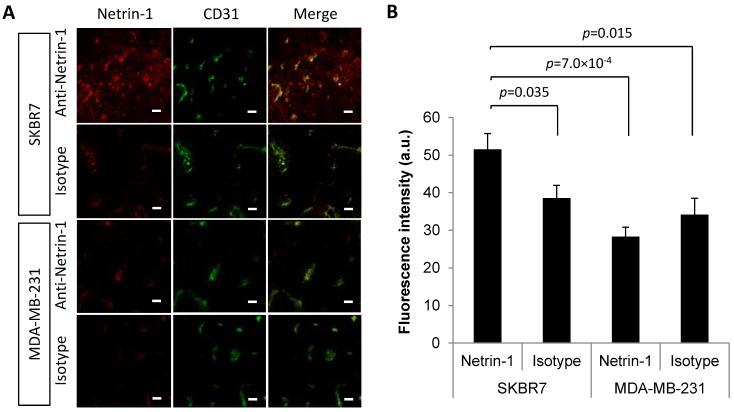

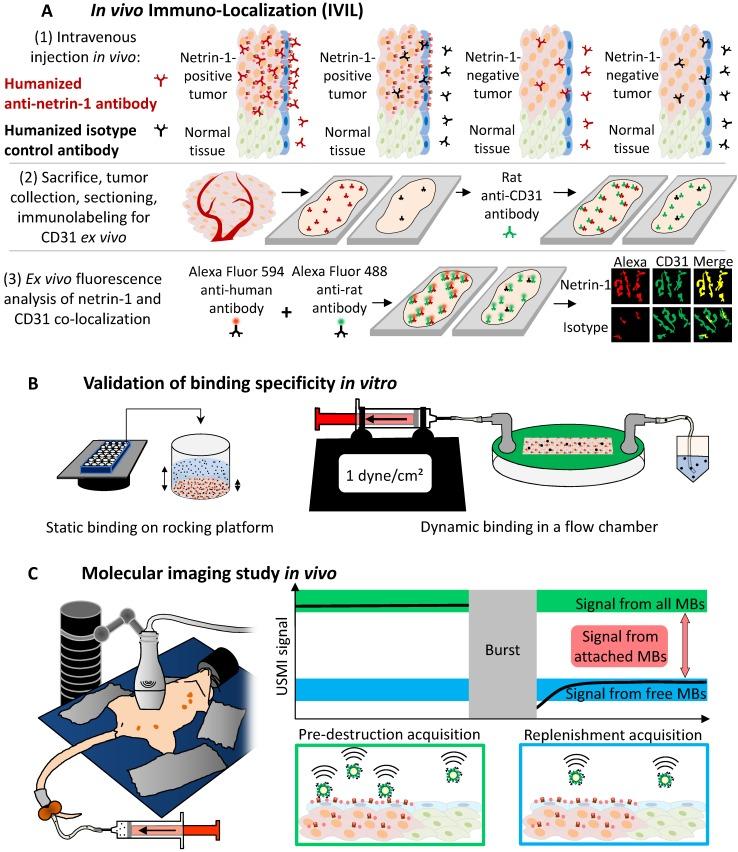

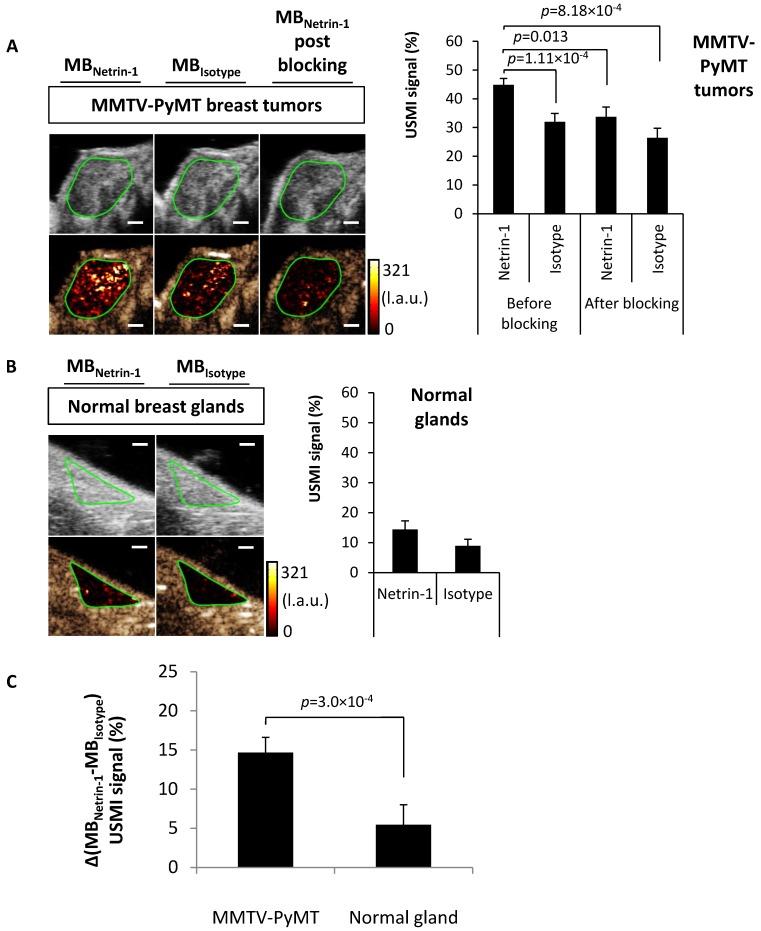

In ultrasound molecular imaging (USMI), ligand-functionalized microbubbles (MBs) are used to visualize vascular endothelial targets. Netrin-1 is upregulated in 60% of metastatic breast cancers and promotes tumor progression. A novel netrin-1 interference therapy requires the assessment of netrin-1 expression prior to treatment. In this study, we studied netrin-1 as a target for USMI and its potential as a companion diagnostic in breast cancer models. To verify netrin-1 expression and localization, an immuno-localization approach was applied, in which anti-netrin-1 antibody was injected into living mice 24 h before tumor collection, and revealed with secondary fluorescent antibody for immunofluorescence analysis. Netrin-1 interactions with the cell surface were studied by flow cytometry. Netrin-1-targeted MBs were prepared using MicroMarker Target-Ready (VisualSonics), and validated in binding assays in static conditions or in a flow chamber using purified netrin-1 protein or netrin-1-expressing cancer cells. USMI of netrin-1 was validated in nude mice bearing human netrin-1-positive SKBR7 tumors or weakly netrin-1-expressing MDA-MB-231 tumors using the Vevo 2100 small animal imaging device (VisualSonics). USMI feasibility was further tested in transgenic murine FVB/N Tg(MMTV/PyMT634Mul) (MMTV-PyMT) mammary tumors. Netrin-1 co-localized with endothelial CD31 in netrin-1-positive breast tumors. Netrin-1 binding to the surface of endothelial HUVEC and cancer cells was partially mediated by heparan sulfate proteoglycans. MBs targeted with humanized monoclonal anti-netrin-1 antibody bound to netrin-1-expressing cancer cells in static and dynamic conditions. USMI signal was significantly increased with anti-netrin-1 MBs in human SKBR7 breast tumors and transgenic murine MMTV-PyMT mammary tumors compared to signals recorded with either isotype control MBs or after blocking of netrin-1 with humanized monoclonal anti-netrin-1 antibody. In weakly netrin-1-expressing human tumors and normal mammary glands, no difference in imaging signal was observed with anti-netrin-1- and isotype control MBs. analysis confirmed netrin-1 expression in MMTV-PyMT tumors. These results show that USMI allowed reliable detection of netrin-1 on the endothelium of netrin-1-positive human and murine tumors. Significant differences in USMI signal for netrin-1 reflected the significant differences in netrin-1 mRNA & protein expression observed between different breast tumor models. The imaging approach was non-invasive and safe, and provided the netrin-1 expression status in near real-time. Thus, USMI of netrin-1 has the potential to become a companion diagnostic for the stratification of patients for netrin-1 interference therapy in future clinical trials.
在超声分子成像(USMI)中,配体功能化的微泡(MBs)用于可视化血管内皮靶标。神经导向因子-1在 60%的转移性乳腺癌中上调,并促进肿瘤进展。新型神经导向因子-1干扰治疗需要在治疗前评估神经导向因子-1的表达。在这项研究中,我们研究了神经导向因子-1作为 USMI 的靶标及其作为乳腺癌模型中伴随诊断的潜力。为了验证神经导向因子-1的表达和定位,应用免疫定位方法,在肿瘤采集前 24 小时向活小鼠体内注射抗神经导向因子-1抗体,并用二级荧光抗体进行免疫荧光分析。通过流式细胞术研究神经导向因子-1与细胞表面的相互作用。使用 MicroMarker Target-Ready(VisualSonics)制备了神经导向因子-1靶向 MBs,并在静态条件下或使用纯化的神经导向因子-1 蛋白或表达神经导向因子-1的癌细胞在流动室中进行结合测定进行验证。使用 Vevo 2100 小动物成像仪(VisualSonics)在携带人源神经导向因子-1阳性 SKBR7 肿瘤或弱神经导向因子-1表达 MDA-MB-231 肿瘤的裸鼠中验证了神经导向因子-1的 USMI。在转基因 FVB/N Tg(MMTV/PyMT634Mul)(MMTV-PyMT)乳腺肿瘤中进一步测试了 USMI 的可行性。神经导向因子-1与内皮 CD31 在神经导向因子-1阳性的乳腺癌肿瘤中共同定位。神经导向因子-1与内皮 HUVEC 和癌细胞表面的结合部分由硫酸乙酰肝素蛋白聚糖介导。与人源化单克隆抗神经导向因子-1抗体靶向的 MBs在静态和动态条件下与表达神经导向因子-1的癌细胞结合。与同种型对照 MBs 记录的信号或用与人源化单克隆抗神经导向因子-1抗体阻断神经导向因子-1后相比,USMI 信号在携带人源神经导向因子-1的 SKBR7 乳腺癌肿瘤和转基因 MMTV-PyMT 乳腺肿瘤中明显增加。在弱神经导向因子-1表达的人类肿瘤和正常乳腺组织中,抗神经导向因子-1-MBs 和同种型对照 MBs 的成像信号无差异。RT-PCR 分析证实了 MMTV-PyMT 肿瘤中神经导向因子-1的表达。这些结果表明,USMI 允许可靠地检测神经导向因子-1在神经导向因子-1阳性的人类和鼠类肿瘤的内皮上。USMI 信号的显著差异反映了不同乳腺癌模型之间观察到的神经导向因子-1 mRNA 和蛋白表达的显著差异。该成像方法是非侵入性和安全的,并提供了近乎实时的神经导向因子-1表达状态。因此,神经导向因子-1 的 USMI 有可能成为未来临床试验中神经导向因子-1干扰治疗患者分层的伴随诊断。
