Wang Kun, Vezzoli Andrea, Grace Iain M, McLaughlin Maeve, Nichols Richard J, Xu Bingqian, Lambert Colin J, Higgins Simon J
Department of Physics and Astronomy & NanoSEC , University of Georgia , 220 Riverbend Road , Athens , GA 30602 , USA . Email:
Department of Chemistry , University of Liverpool , Crown Street , Liverpool L69 7ZD , UK . Email:
Chem Sci. 2019 Jan 3;10(8):2396-2403. doi: 10.1039/c8sc04199g. eCollection 2019 Feb 28.

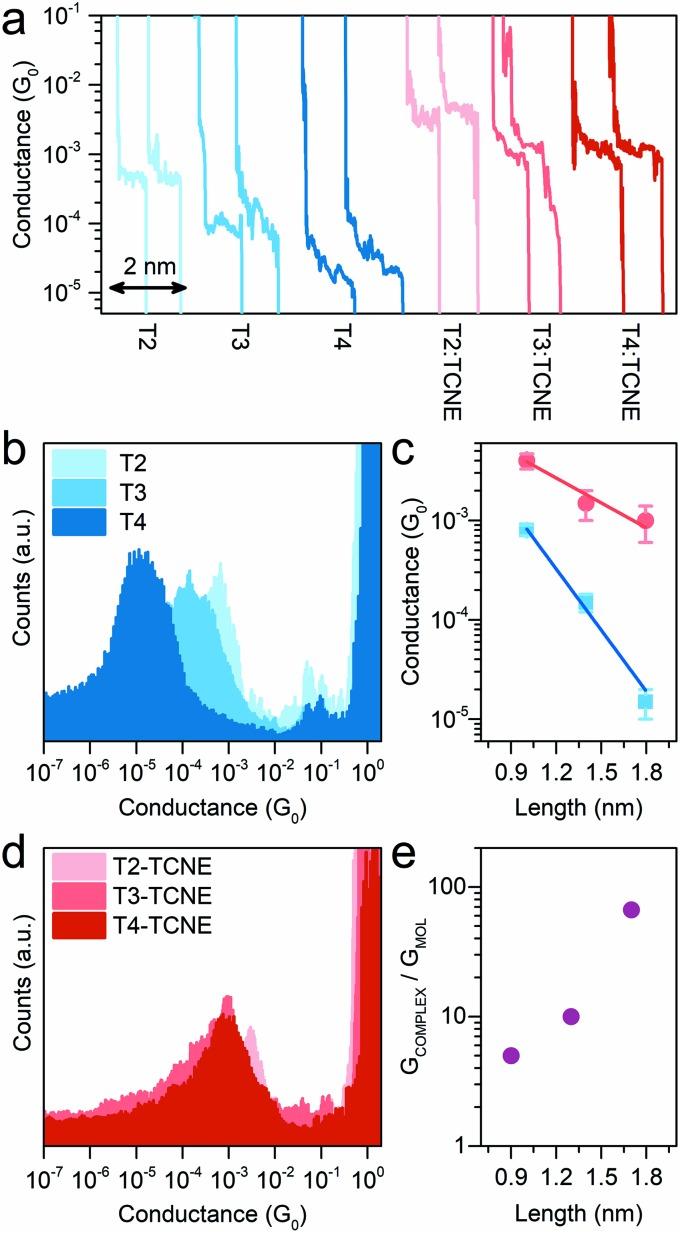

Interference features in the transmission spectra can dominate charge transport in metal-molecule-metal junctions when they occur close to the contact Fermi energy ( ). Here, we show that by forming a charge-transfer complex with tetracyanoethylene (TCNE) we can introduce new constructive interference features in the transmission profile of electron-rich, thiophene-based molecular wires that almost coincide with . Complexation can result in a large enhancement of junction conductance, with very efficient charge transport even at relatively large molecular lengths. For instance, we report a conductance of 10 (∼78 nS) for the ∼2 nm long α-quaterthiophene:TCNE complex, almost two orders of magnitude higher than the conductance of the bare molecular wire. As the conductance of the complexes is remarkably independent of features such as the molecular backbone and the nature of the contacts to the electrodes, our results strongly suggest that the interference features are consistently pinned near to the Fermi energy of the metallic leads. Theoretical studies indicate that the semi-occupied nature of the charge-transfer orbital is not only important in giving rise to the latter effect, but also could result in spin-dependent transport for the charge-transfer complexes. These results therefore present a simple yet effective way to increase charge transport efficiency in long and poorly conductive molecular wires, with important repercussions in single-entity thermoelectronics and spintronics.
当传输光谱中的干涉特征出现在接近接触费米能量( )时,它们可以主导金属 - 分子 - 金属结中的电荷传输。在此,我们表明,通过与四氰基乙烯(TCNE)形成电荷转移络合物,我们可以在富电子的、基于噻吩的分子线的传输谱中引入新的相长干涉特征,这些特征几乎与 重合。络合作用可导致结电导大幅增强,即使在相对较大的分子长度下也能实现非常高效的电荷传输。例如,我们报道约2 nm长的α - 四噻吩:TCNE络合物的电导为10 (约78 nS),几乎比裸分子线的电导高两个数量级。由于络合物的电导显著独立于诸如分子主链和与电极接触的性质等特征,我们的结果强烈表明干涉特征始终固定在金属引线的费米能量附近。理论研究表明,电荷转移轨道的半占据性质不仅对产生后一种效应很重要,而且还可能导致电荷转移络合物的自旋相关传输。因此,这些结果提出了一种简单而有效的方法来提高长且导电性差的分子线中的电荷传输效率,这在单实体热电子学和自旋电子学中具有重要影响。
