Revisiting the Enhanced Red Upconversion Emission from a Single β-NaYF:Yb/Er Microcrystal By Doping with Mn Ions.

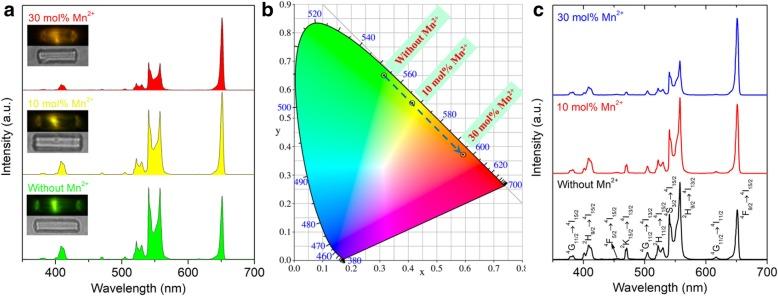

The presence of manganese ions (Mn) in Yb/Er-co-doped nanomaterials results in suppressing green (545 nm) and enhancing red (650 nm) upconversion (UC) emission, which can achieve single-red-band emission to enable applications in bioimaging and drug delivery. Here, we revisit the tunable multicolor UC emission in a single Mn-doped β-NaYF:Yb/Er microcrystal which is synthesized by a simple one-pot hydrothermal method. Excited by a 980 nm continuous wave (CW) laser, the color of the single β-NaYF:Yb/Er/Mn microrod can be tuned from green to red as the doping Mn ions increase from 0 to 30 mol%. Notably, under a relatively high excitation intensity, a newly emerged emission band at 560 nm (H → I) becomes significant and further exceeds the traditional green (545 nm) emission. Therefore, the red-to-green (R/G) emission intensity ratio is subdivided into traditional (650 to 545 nm) and new (650 to 560 nm) R/G ones. As the doped Mn ions increase, these two R/G ratios are in lockstep with the same tunable trends at low excitation intensity, but the tunable regions become different at high excitation intensity. Moreover, we demonstrate that the energy transfer (ET) between Mn and Er contributes to the adjustment of R/G ratio and leads to tunable multicolor of the single microrod. The spectroscopic properties and tunable color from the single microrod can be potentially utilized in color display and micro-optoelectronic devices.
