Min Daomin, Yan Chenyu, Mi Rui, Ma Chao, Huang Yin, Li Shengtao, Wu Qingzhou, Xing Zhaoliang
State Key Laboratory of Electrical Insulation and Power Equipment, Xi'an Jiaotong University, Xi'an 710049, China.
Institute of Fluid Physics, China Academy of Engineering Physics, Mianyang 621900, China.
Polymers (Basel). 2018 Oct 30;10(11):1207. doi: 10.3390/polym10111207.

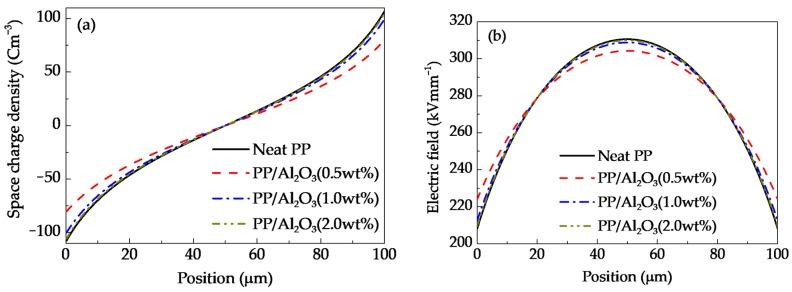

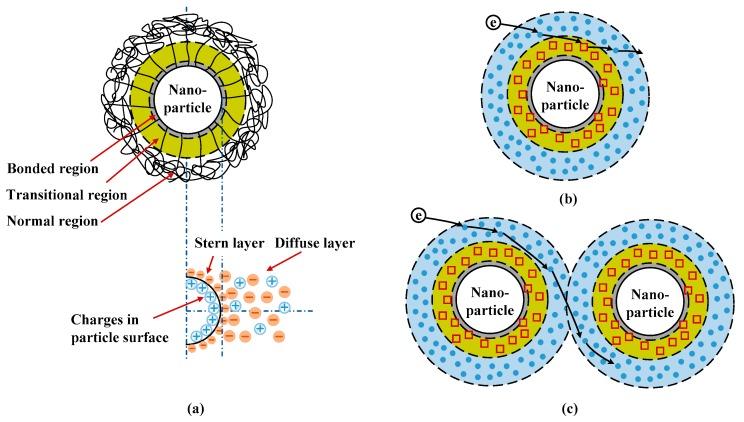

Dielectric energy storage capacitors have advantages such as ultra-high power density, extremely fast charge and discharge speed, long service lifespan and are significant for pulsed power system, smart power grid, and power electronics. Polypropylene (PP) is one of the most widely used dielectric materials for dielectric energy storage capacitors. It is of interest to investigate how to improve its electrical breakdown strength by nanodoping and the influencing mechanism of nanodoping on the electrical breakdown properties of polymer nanocomposites. PP/Al₂O₃ nanocomposite dielectric materials with various weight fraction of nanoparticles are fabricated by melt-blending and hot-pressing methods. Thermally stimulated current, surface potential decay, and dc electrical breakdown experiments show that deep trap properties and associated molecular chain motion are changed by incorporating nanofillers into polymer matrix, resulting in the variations in conductivity and dc electrical breakdown field of nanocomposite dielectrics. Then, a charge transport and molecular displacement modulated electrical breakdown model is utilized to simulate the dc electrical breakdown behavior. It is found that isolated interfacial regions formed in nanocomposite dielectrics at relatively low loadings reduce the effective carrier mobility and strengthen the interaction between molecular chains, hindering the transport of charges and the displacement of molecular chains with occupied deep traps. Accordingly, the electrical breakdown strength is enhanced at relatively low loadings. Interfacial regions may overlap in nanocomposite dielectrics at relatively high loadings so that the effective carrier mobility decreases and the interaction between molecular chains may be weakened. Consequently, the molecular motion is accelerated by electric force, leading to the decrease in electrical breakdown strength. The experiments and simulations reveals that the influence of nanodoping on dc electrical breakdown properties may origin from the changes in the charge transport and molecular displacement characteristics caused by interfacial regions in nanocomposite dielectrics.
介电储能电容器具有超高功率密度、极快的充放电速度、长使用寿命等优点,对脉冲功率系统、智能电网和电力电子学具有重要意义。聚丙烯(PP)是介电储能电容器中使用最广泛的介电材料之一。研究如何通过纳米掺杂提高其电击穿强度以及纳米掺杂对聚合物纳米复合材料电击穿性能的影响机制具有重要意义。采用熔融共混和热压法制备了具有不同纳米颗粒重量分数的PP/Al₂O₃纳米复合介电材料。热激发电流、表面电位衰减和直流电击穿实验表明,将纳米填料引入聚合物基体中会改变深陷阱特性和相关的分子链运动,从而导致纳米复合电介质的电导率和直流电击穿场发生变化。然后,利用电荷传输和分子位移调制电击穿模型模拟直流电击穿行为。研究发现,在较低负载下纳米复合电介质中形成的孤立界面区域会降低有效载流子迁移率,增强分子链之间的相互作用,阻碍电荷传输和占据深陷阱的分子链位移。因此,在较低负载下电击穿强度得到提高。在较高负载下,纳米复合电介质中的界面区域可能会重叠,从而导致有效载流子迁移率降低,分子链之间的相互作用可能会减弱。因此,分子运动会因电场力而加速,导致电击穿强度降低。实验和模拟结果表明,纳米掺杂对直流电击穿性能的影响可能源于纳米复合电介质中界面区域引起的电荷传输和分子位移特性的变化。
