基于全卷积网络的稻田秧苗期水稻苗和杂草图像分割。

Fully convolutional network for rice seedling and weed image segmentation at the seedling stage in paddy fields.

机构信息

College of Engineering, South China Agricultural University, Guangzhou, China.

出版信息

PLoS One. 2019 Apr 18;14(4):e0215676. doi: 10.1371/journal.pone.0215676. eCollection 2019.


DOI:10.1371/journal.pone.0215676
PMID:30998770
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC6472823/
Abstract

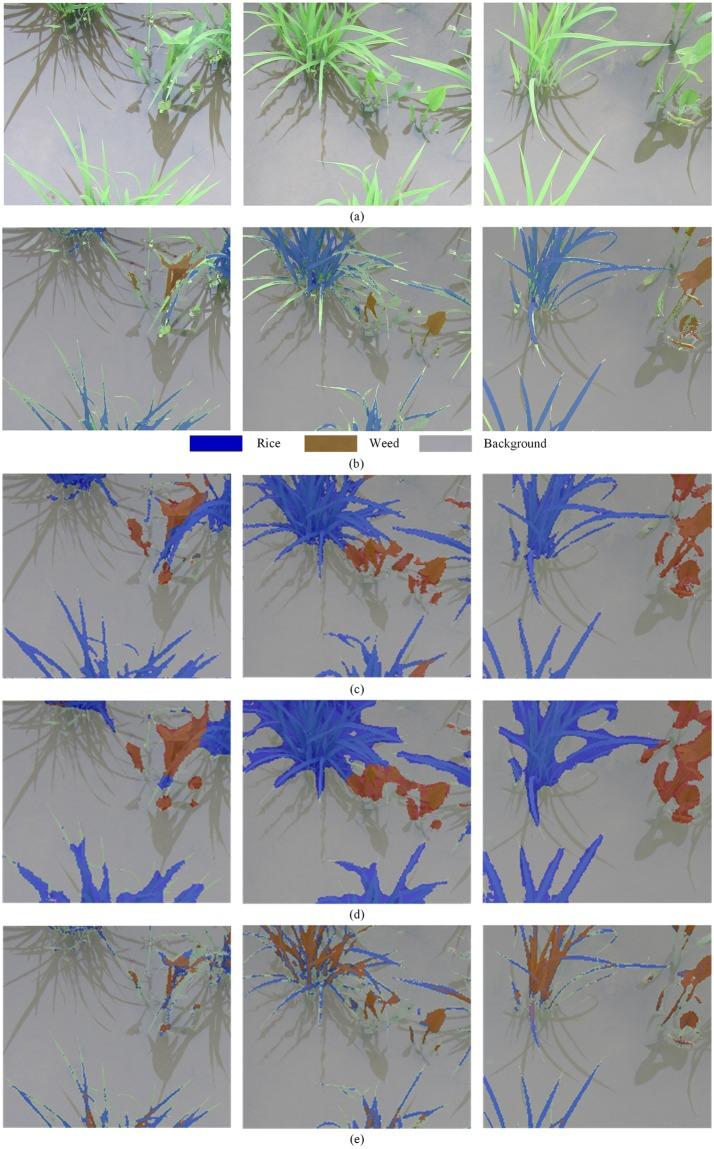

To reduce the cost of production and the pollution of the environment that is due to the overapplication of herbicide in paddy fields, the location information of rice seedlings and weeds must be detected in site-specific weed management (SSWM). With the development of deep learning, a semantic segmentation method with the SegNet that is based on fully convolutional network (FCN) was proposed. In this paper, RGB color images of seedling rice were captured in paddy field, and ground truth (GT) images were obtained by manually labeled the pixels in the RGB images with three separate categories, namely, rice seedlings, background, and weeds. The class weight coefficients were calculated to solve the problem of the unbalance of the number of the classification category. GT images and RGB images were used for data training and data testing. Eighty percent of the samples were randomly selected as the training dataset and 20% of samples were used as the test dataset. The proposed method was compared with a classical semantic segmentation model, namely, FCN, and U-Net models. The average accuracy rate of the SegNet method was 92.7%, whereas the average accuracy rates of the FCN and U-Net methods were 89.5% and 70.8%, respectively. The proposed SegNet method realized higher classification accuracy and could effectively classify the pixels of rice seedlings, background, and weeds in the paddy field images and acquire the positions of their regions.

摘要

为了降低由于稻田过度使用除草剂而导致的生产成本和环境污染,在精准杂草管理(SSWM)中必须检测稻田中秧苗和杂草的位置信息。随着深度学习的发展,提出了一种基于全卷积网络(FCN)的语义分割方法 SegNet。本文在稻田中拍摄了秧苗的 RGB 彩色图像,并通过手动标记 RGB 图像中的像素,得到了具有三个单独类别的地面真实(GT)图像,即秧苗、背景和杂草。计算了类别权重系数以解决分类类别的数量不平衡问题。GT 图像和 RGB 图像用于数据训练和数据测试。随机选择 80%的样本作为训练数据集,20%的样本作为测试数据集。将所提出的方法与经典语义分割模型 FCN 和 U-Net 模型进行了比较。SegNet 方法的平均准确率为 92.7%,而 FCN 和 U-Net 方法的平均准确率分别为 89.5%和 70.8%。所提出的 SegNet 方法实现了更高的分类准确率,可以有效地对稻田图像中的秧苗、背景和杂草像素进行分类,并获取它们的区域位置。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/d0de/6472823/de8854c00b4a/pone.0215676.g006.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/d0de/6472823/d3fbdd2eff3c/pone.0215676.g001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/d0de/6472823/0480d2f23161/pone.0215676.g002.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/d0de/6472823/d11f77da1416/pone.0215676.g003.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/d0de/6472823/48bc56310e39/pone.0215676.g004.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/d0de/6472823/93dd643d353c/pone.0215676.g005.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/d0de/6472823/de8854c00b4a/pone.0215676.g006.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/d0de/6472823/d3fbdd2eff3c/pone.0215676.g001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/d0de/6472823/0480d2f23161/pone.0215676.g002.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/d0de/6472823/d11f77da1416/pone.0215676.g003.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/d0de/6472823/48bc56310e39/pone.0215676.g004.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/d0de/6472823/93dd643d353c/pone.0215676.g005.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/d0de/6472823/de8854c00b4a/pone.0215676.g006.jpg
