MR Imaging-based Evaluation of Mesenteric Ischemia Caused by Strangulated Small Bowel Obstruction and Mesenteric Venous Occlusion: An Experimental Study Using Rabbits.

PURPOSE

This study assessed the MRI findings of strangulated small bowel obstruction (SBO) and mesenteric venous occlusion (MVO) in a rabbit model using 3T MRI.

MATERIALS AND METHODS

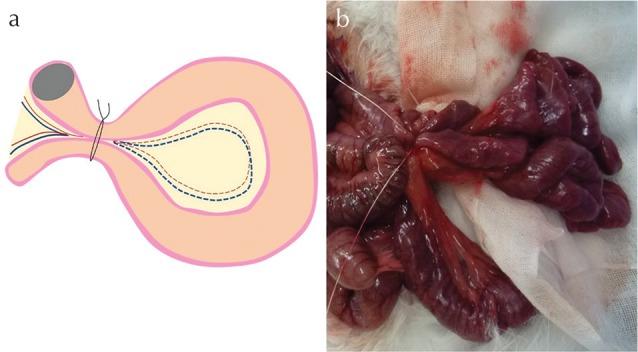

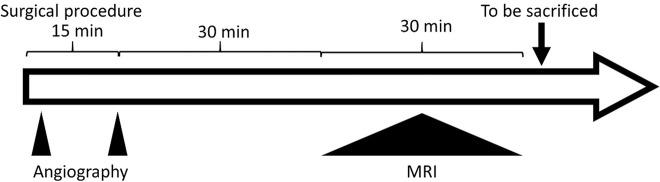

Twenty rabbits were included in this study. The strangulated SBO and MVO models were generated via surgical procedures in nine rabbits, and sham surgery was performed in two rabbits. The success of generating the models was confirmed via angiographic, macroscopic, and microscopic findings after the surgical procedure. MRI was performed before and 30 min after inducing mesenteric ischemia. T-weighted images (TWIs), T-weighted images (TWIs), and fat-suppressed TWIs (FS-TWIs) were obtained using the BLADE technique, and fat-suppressed TWIs (FS-TWIs) were obtained. The signal intensities of the affected bowel before and after the surgical procedures were visually categorized as high, iso, and low intense compared with the findings for the normal bowel wall on all sequences. Bowel wall thickness was measured, and the signal intensity ratio (SI ratio) was calculated using the signal intensities of the bowel wall and psoas muscle.

RESULTS

Angiographic, macroscopic, and microscopic findings confirmed that all surgical procedures were successful. The ischemic bowel wall was thicker than the normal bowel. The bowel wall was thicker in the MVO model (3.17 ± 0.55 mm) than in the strangulated SBO model (2.26 ± 0.46 mm). The signal intensity and SI ratio of the bowel wall were significantly higher after the procedure than before the procedure on all sequences in both models. The mesentery adjacent to the ischemic bowel loop exhibited a high signal intensity in all animals on FS-TWIs.

CONCLUSION

Non-contrast MRI can be used to evaluate mesenteric ischemia caused by strangulated SBO and MVO. FS-TWIs represented the best modality for depicting the high signal intensity in the bowel wall and mesentery caused by ischemia.
