Department of Nuclear Medicine, The First Hospital of China Medical University, No.155 North Nanjing Street, Heping District, Shenyang City, Liaoning Province, 110001, People's Republic of China.
Department of Medical Physics, School of Medicine and Public Health, University of Wisconsin-Madison, Madison, USA.
Cancer Imaging. 2019 Aug 16;19(1):56. doi: 10.1186/s40644-019-0243-3.
OBJECTIVE: Lung cancer usually presents as a solitary pulmonary nodule (SPN) on diagnostic imaging during the early stages of the disease. Since the early diagnosis of lung cancer is very important for treatment, the accurate diagnosis of SPNs has much importance. The aim of this study was to evaluate the discriminant power of dual time point imaging (DTPI) PET/CT in the differentiation of malignant and benign FDG-avid solitary pulmonary nodules by using neighborhood gray-tone difference matrix (NGTDM) texture features. METHODS: Retrospective analysis was carried out on 116 patients with SPNs (35 benign and 81 malignant) who had DTPI F-FDG PET/CT between January 2005 and May 2015. Both PET and CT images were acquired at 1 h and 3 h after injection. The SUV and NGTDM texture features (coarseness, contrast, and busyness) of each nodule were calculated on dual time point images. Patients were randomly divided into training and validation datasets. Receiver operating characteristic (ROC) curve analysis was performed on all texture features in the training dataset to calculate the optimal threshold for differentiating malignant SPNs from benign SPNs. For all the lesions in the testing dataset, two visual interpretation scores were determined by two nuclear medicine physicians based on the PET/CT images with and without reference to the texture features. RESULTS: In the training dataset, the AUCs of delayed busyness, delayed coarseness, early busyness, and early SUV were 0.87, 0.85, 0.75 and 0.75, respectively. In the validation dataset, the AUCs of visual interpretations with and without texture features were 0.89 and 0.80, respectively. CONCLUSION: Compared to SUV or visual interpretation, NGTDM texture features derived from DTPI PET/CT images can be used as good predictors of SPN malignancy. Improvement in discriminating benign from malignant nodules using SUVmax and visual interpretation can be achieved by adding busyness extracted from delayed PET/CT images.
目的:在疾病早期的诊断影像学中,肺癌通常表现为单个肺部结节(SPN)。由于早期诊断肺癌对治疗非常重要,因此准确诊断 SPN 非常重要。本研究旨在通过使用邻域灰度差矩阵(NGTDM)纹理特征评估双时相成像(DTPI) PET/CT 在鉴别 FDG 摄取的恶性和良性 SPN 中的判别能力。
方法:回顾性分析了 2005 年 1 月至 2015 年 5 月间进行 DTPI F-FDG PET/CT 的 116 名 SPN 患者(35 例良性和 81 例恶性)。注射后 1 小时和 3 小时采集 PET 和 CT 图像。计算每个结节的 SUV 和 NGTDM 纹理特征(粗糙度、对比度和繁忙度)。患者被随机分为训练和验证数据集。在训练数据集中对所有纹理特征进行接收者操作特征(ROC)曲线分析,以计算区分恶性 SPN 和良性 SPN 的最佳阈值。对于测试数据集中的所有病变,两位核医学医师根据带有和不带有纹理特征的 PET/CT 图像确定两个视觉解释评分。

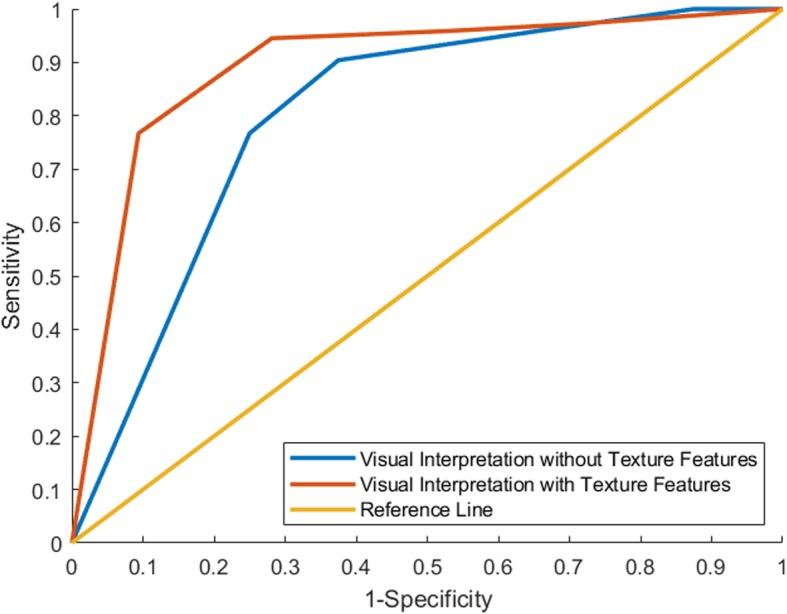

结果:在训练数据集中,延迟忙碌度、延迟粗糙度、早期忙碌度和早期 SUV 的 AUC 分别为 0.87、0.85、0.75 和 0.75。在验证数据集中,带有和不带有纹理特征的视觉解释的 AUC 分别为 0.89 和 0.80。
结论:与 SUV 或视觉解释相比,源自 DTPI PET/CT 图像的 NGTDM 纹理特征可作为 SPN 恶性程度的良好预测指标。通过添加延迟 PET/CT 图像中提取的忙碌度,可以提高 SUVmax 和视觉解释对良恶性结节的鉴别能力。
