Lv Yun, Sun Qichao, Wang Xiaodan, Lu Yi, Li Yaoyao, Yuan Huiqing, Zhu Jing, Zhu Deyu
Department of Biochemistry and Molecular Biology, School of Basic Medical Sciences, Shandong University, Jinan, China.
Key Laboratory of Chemical Biology (Ministry of Education), School of Pharmaceutical Sciences, Shandong University, Jinan, China.
Front Microbiol. 2019 Sep 13;10:2111. doi: 10.3389/fmicb.2019.02111. eCollection 2019.

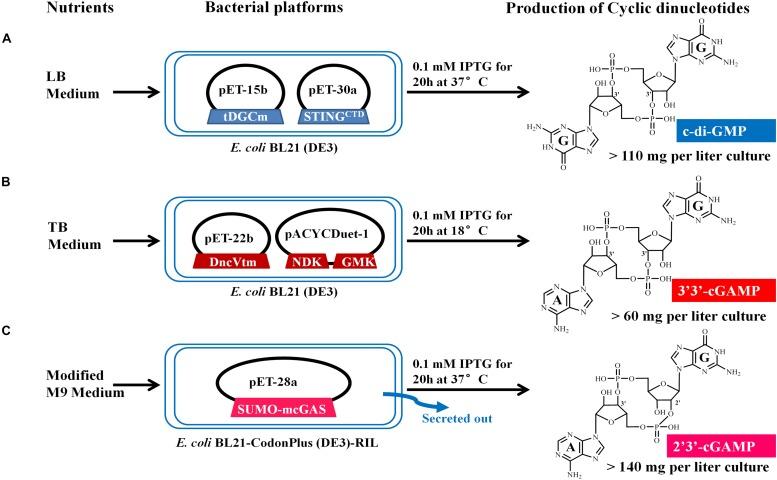

Cyclic dinucleotides (CDNs) are widely used secondary signaling molecules in bacterial and mammalian cells. The family of CDNs includes c-di-GMP, c-di-AMP and two distinct versions of hybrid cGAMPs. Studies related to these CDNs require large doses that are relatively expensive to generate by current methods. Here we report what to our knowledge is the first feasible microbial-based method to prepare these CDNs including c-di-GMP, 3'3'-cGAMP and 2'3'-cGAMP. The method mainly includes two parts: producing high yield of CDNs by engineering the overexpression of the proper dinucleotide cyclases (DNCs) and other related proteins in , and purifying the bacteria-produced CDNs by a unified and simple process involving a STING affinity column, macroporous adsorption resin and C18 reverse-phase liquid chromatography. After purification, we obtained the diammonium salts of c-di-GMP, 3'3'-cGAMP and 2'3'-cGAMP with weight purity of >99, >96, >99% and in yields of >68, >26, and >82 milligrams per liter of culture, respectively. This technological platform enables the production of CDNs from cheaper material, provides a sustainable source of CDNs for scientific investigation, and can easily be further developed to prepare CDNs on a large scale for industry.
环二核苷酸(CDNs)是细菌和哺乳动物细胞中广泛使用的二级信号分子。CDNs家族包括环二鸟苷酸(c-di-GMP)、环二腺苷酸(c-di-AMP)以及两种不同形式的杂合环鸟苷单磷酸腺苷(cGAMPs)。与这些CDNs相关的研究需要大剂量的CDNs,而通过目前的方法来制备这些CDNs成本相对较高。在此,我们报告了据我们所知的第一种可行的基于微生物的方法来制备这些CDNs,包括c-di-GMP、3'3'-cGAMP和2'3'-cGAMP。该方法主要包括两个部分:通过工程改造使合适的二核苷酸环化酶(DNCs)和其他相关蛋白在细菌中过表达以高产率生产CDNs,以及通过一个统一且简单的过程纯化细菌产生的CDNs,该过程涉及一个干扰素基因刺激蛋白(STING)亲和柱、大孔吸附树脂和C18反相液相色谱。纯化后,我们分别获得了c-di-GMP、3'3'-cGAMP和2'3'-cGAMP的二铵盐,重量纯度分别>99%、>96%、>99%,产量分别为每升培养物>68毫克、>26毫克和>82毫克。这个技术平台能够从更廉价的材料生产CDNs,为科学研究提供可持续的CDNs来源,并且可以很容易地进一步开发以大规模制备用于工业的CDNs
