Olubajo Farouk, Achawal Shailendra, Greenman John
Department of Neurosurgery, Hull and East Yorkshire Hospitals, Hull Royal Infirmary, Anlaby Road, Hull, HU3 2JZ, UK.
Department of Neurosurgery, Hull and East Yorkshire Hospitals, Hull Royal Infirmary, Anlaby Road, Hull, HU3 2JZ, UK.
Transl Oncol. 2020 Jan;13(1):1-10. doi: 10.1016/j.tranon.2019.09.002. Epub 2019 Nov 11.
One way to overcome the genetic and molecular variations within glioblastoma is to treat each tumour on an individual basis. To facilitate this, we have developed a microfluidic culture paradigm that maintains human glioblastoma tissue ex vivo.

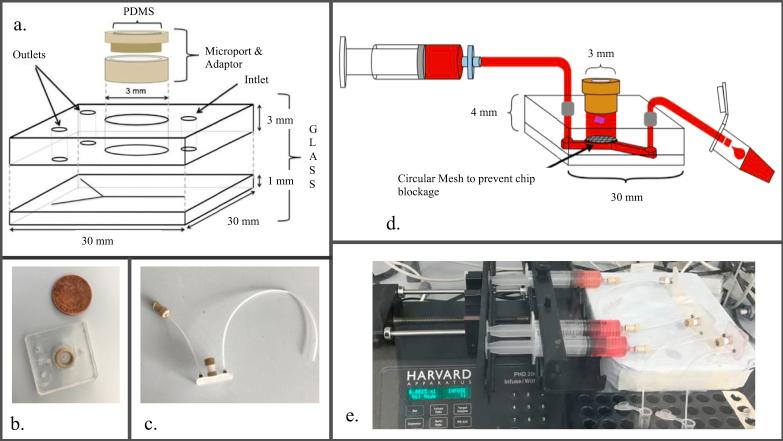

The assembled device, fabricated using a photolithographic process, is composed of two layers of glass bonded together to contain a tissue chamber and a network of microchannels that allow continued tissue perfusion.

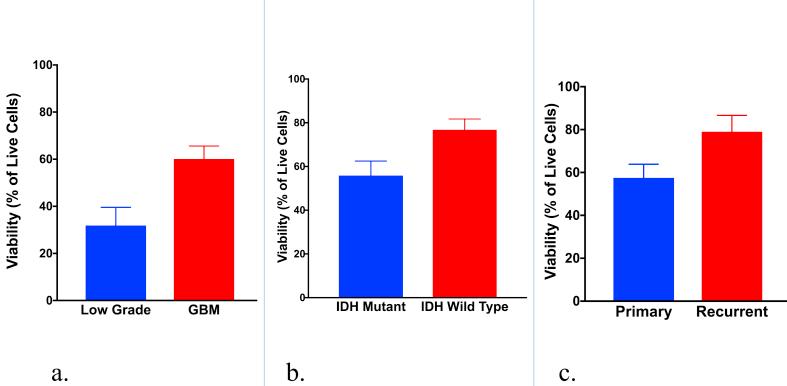

A total of 128 tissue biopsies (from 33 patients) were maintained in microfluidic devices for an average of 72 hours. Tissue viability (measured with Annexin V and propidium iodide) was 61.1% in tissue maintained on chip compared with 68.9% for fresh tissue analysed at commencement of the experiments. Other biomarkers, including lactate dehydrogenase absorbance and trypan blue exclusion, supported the viability of the tissue maintained on chip. Histological appearances remained unchanged during the tissue maintenance period, and immunohistochemical analysis of Ki67 and caspase 3 showed no significant differences when compared with fresh tissues. A trend showed that tumours associated with poorer outcomes (recurrent tumours and Isocitrate Dehydrogenase - IDH wildtype) displayed higher viability on chip than tumours linked with improved outcomes (low-grade gliomas, IDH mutants and primary tumours).
This work has demonstrated for the first time that human glioblastoma tissue can be successfully maintained within a microfluidic device and has the potential to be developed as a new platform for studying the biology of brain tumours, with the long-term aim of replacing current preclinical GBM models and facilitating personalised treatments.
克服胶质母细胞瘤内基因和分子变异的一种方法是对每个肿瘤进行个体化治疗。为便于实现这一点,我们开发了一种微流控培养模式,可在体外维持人胶质母细胞瘤组织。
使用光刻工艺制造的组装装置由两层粘合在一起的玻璃组成,包含一个组织腔室和一个允许组织持续灌注的微通道网络。
总共128份组织活检样本(来自33名患者)在微流控装置中维持了平均72小时。与实验开始时分析的新鲜组织的68.9%相比,芯片上维持的组织的活力(用膜联蛋白V和碘化丙啶测量)为61.1%。其他生物标志物,包括乳酸脱氢酶吸光度和台盼蓝排斥试验,支持芯片上维持的组织的活力。在组织维持期间,组织学外观保持不变,与新鲜组织相比,Ki67和半胱天冬酶3的免疫组织化学分析显示无显著差异。一种趋势表明,与预后较差相关的肿瘤(复发性肿瘤和异柠檬酸脱氢酶-IDH野生型)在芯片上的活力高于与预后改善相关的肿瘤(低级别胶质瘤、IDH突变体和原发性肿瘤)。
这项工作首次证明人胶质母细胞瘤组织可以在微流控装置中成功维持,并且有潜力被开发为研究脑肿瘤生物学的新平台,其长期目标是取代当前的临床前GBM模型并促进个性化治疗。
