Cryo-EM 结构解析 3.7Å 分辨率下的 40kDa SAM-IV 核糖开关 RNA。

Cryo-EM structure of a 40 kDa SAM-IV riboswitch RNA at 3.7 Å resolution.

机构信息

Department of Bioengineering, and James H. Clark Center, Stanford University, Stanford, CA, 94305, USA.

Biophysics Program, Stanford University, Stanford, CA, 94305, USA.

出版信息

Nat Commun. 2019 Dec 3;10(1):5511. doi: 10.1038/s41467-019-13494-7.

Abstract

Specimens below 50 kDa have generally been considered too small to be analyzed by single-particle cryo-electron microscopy (cryo-EM). The high flexibility of pure RNAs makes it difficult to obtain high-resolution structures by cryo-EM. In bacteria, riboswitches regulate sulfur metabolism through binding to the S-adenosylmethionine (SAM) ligand and offer compelling targets for new antibiotics. SAM-I, SAM-I/IV, and SAM-IV are the three most commonly found SAM riboswitches, but the structure of SAM-IV is still unknown. Here, we report the structures of apo and SAM-bound SAM-IV riboswitches (119-nt, ~40 kDa) to 3.7 Å and 4.1 Å resolution, respectively, using cryo-EM. The structures illustrate homologies in the ligand-binding core but distinct peripheral tertiary contacts in SAM-IV compared to SAM-I and SAM-I/IV. Our results demonstrate the feasibility of resolving small RNAs with enough detail to enable detection of their ligand-binding pockets and suggest that cryo-EM could play a role in structure-assisted drug design for RNA.

摘要

以下 50 kDa 的标本通常被认为太小,无法通过单颗粒冷冻电子显微镜(cryo-EM)进行分析。纯 RNA 的高度灵活性使得通过 cryo-EM 获得高分辨率结构变得困难。在细菌中,核酶通过与 S-腺苷甲硫氨酸(SAM)配体结合来调节硫代谢,为新型抗生素提供了有吸引力的靶标。SAM-I、SAM-I/IV 和 SAM-IV 是三种最常见的 SAM 核酶,但 SAM-IV 的结构仍不清楚。在这里,我们使用 cryo-EM 分别报告了 apo 和 SAM 结合的 SAM-IV 核酶(119-nt,~40 kDa)的结构,分辨率分别为 3.7 Å 和 4.1 Å。这些结构说明了配体结合核心的同源性,但与 SAM-I 和 SAM-I/IV 相比,SAM-IV 的外围三级接触明显不同。我们的结果证明了使用足够的细节解析小分子 RNA 的可行性,从而能够检测其配体结合口袋,并表明 cryo-EM 可能在基于结构的 RNA 药物设计中发挥作用。

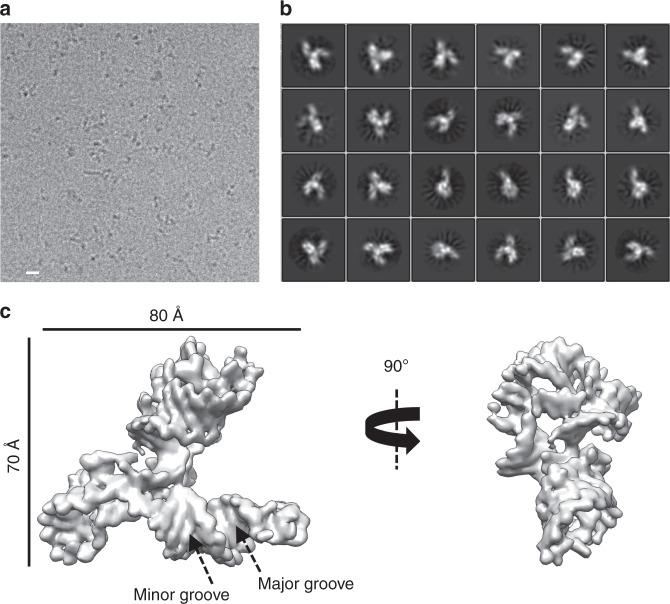

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/b3d6/6890682/6562d5d1b275/41467_2019_13494_Fig1_HTML.jpg
