Department of Radiology, Tianjin Medical University Cancer Institute and Hospital, National Clinical Research Center for Cancer, Tianjin's Clinical Research Center for Cancer, Key Laboratory of Cancer Prevention and Therapy, Tianjin 300060, People's Republic of China.
Department of Radiology, Second Hospital of Tianjin Medical University, Tianjin 300211, People's Republic of China.
Int J Nanomedicine. 2020 Jan 14;15:227-238. doi: 10.2147/IJN.S227169. eCollection 2020.

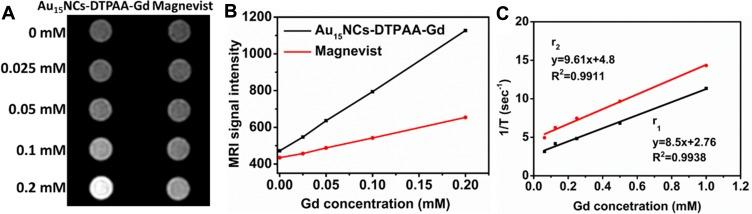

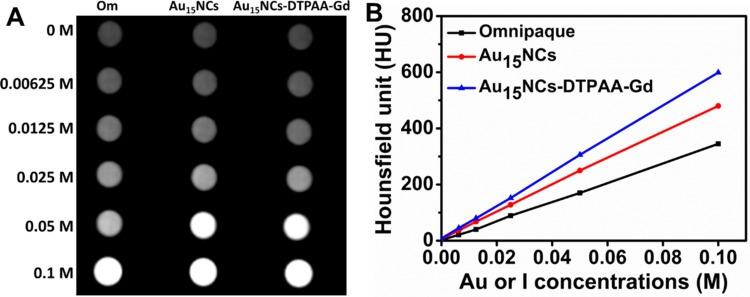

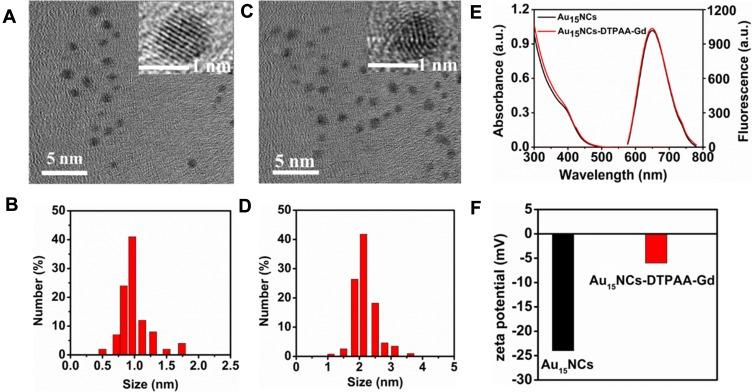

INTRODUCTION: Multimodal imaging agent has the potential to overcome the shortage and incorporate the advantages of different imaging tools for extremely sensitive diagnosis. To achieve multimodal imaging, combining multiple contrast agents into a special nanostructure has become a main strategy; However, the combination of all of these functions into one nanoplatform usually requires a complicated synthetic procedure that results in heterogeneous nanostructure. METHODS: In this study, we develop ultrasmall gold nanoclusters with 15 gold atoms (AuNCs) functionalized with diethylenetriamine-pentaacetic acid dianhydride (DTPAA-Gd) as an optimized multimodal imaging agent to enhance imaging ability. RESULTS: The AuNCs-DTPAA-Gd nanohybrids possess the ultra-small size and are capable of enhancing the contrast in near-infrared fluorescence (NIRF), magnetic resonance (MR) and X-ray computed tomography (CT) imaging. Meanwhile, the integrated DTPAA-Gd component not only endow the nanohybrids to produce higher T relaxivity (r = 21.4 mM s) than Omnipaque (r = 3.973 mMs) but also further enhance X-ray attenuation property of AuNCs. Importantly, the fluorescence intensity of AuNCs-DTPAA-Gd did not decrease compared with AuNCs. Ultimately, in vivo imaging experiments have demonstrated that AuNCs-DTPAA-Gd nanohybrids can be quickly eliminated from the body through the urinary system and has great potential for anatomical imaging. CONCLUSION: These data manifest AuNCs-DTPAA-Gd present great potential as a multimodal contrast agent for disease diagnosis, especially for early accurate detection of tumors.
简介:多模态成像剂有可能克服不足并整合不同成像工具的优势,实现极其敏感的诊断。为了实现多模态成像,将多种造影剂结合到特殊的纳米结构中已成为主要策略;然而,将所有这些功能结合到一个纳米平台通常需要复杂的合成过程,导致纳米结构不均匀。

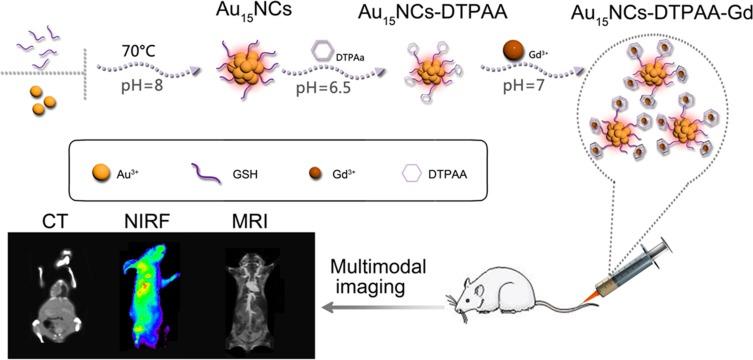

方法:在这项研究中,我们开发了具有二乙烯三胺五乙酸二酐(DTPAA-Gd)功能化的 15 个金原子的超小金纳米簇(AuNCs)作为优化的多模态成像剂,以增强成像能力。
结果:AuNCs-DTPAA-Gd 纳米杂化物具有超小尺寸,能够增强近红外荧光(NIRF)、磁共振(MR)和 X 射线计算机断层扫描(CT)成像的对比度。同时,集成的 DTPAA-Gd 组件不仅使纳米杂化物具有更高的 T 弛豫率(r = 21.4 mM s),超过了欧乃派克(r = 3.973 mMs),而且进一步增强了 AuNCs 的 X 射线衰减特性。重要的是,AuNCs-DTPAA-Gd 的荧光强度与 AuNCs 相比并没有降低。最终,体内成像实验表明,AuNCs-DTPAA-Gd 纳米杂化物可以通过泌尿系统迅速从体内排出,具有用于解剖成像的巨大潜力。
结论:这些数据表明,AuNCs-DTPAA-Gd 作为一种多模态造影剂具有很大的潜力,可用于疾病诊断,特别是用于肿瘤的早期准确检测。
