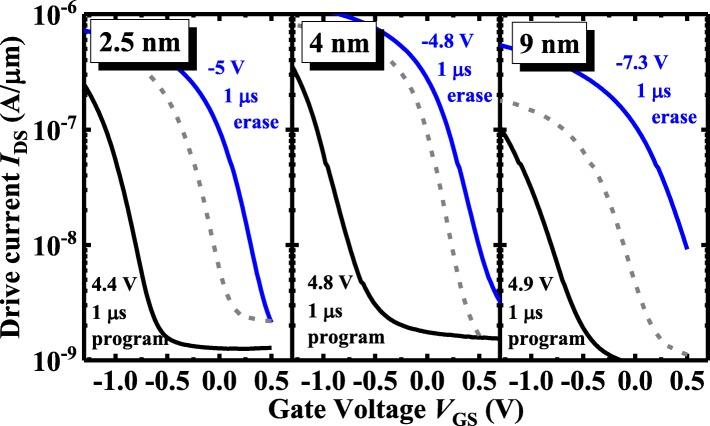

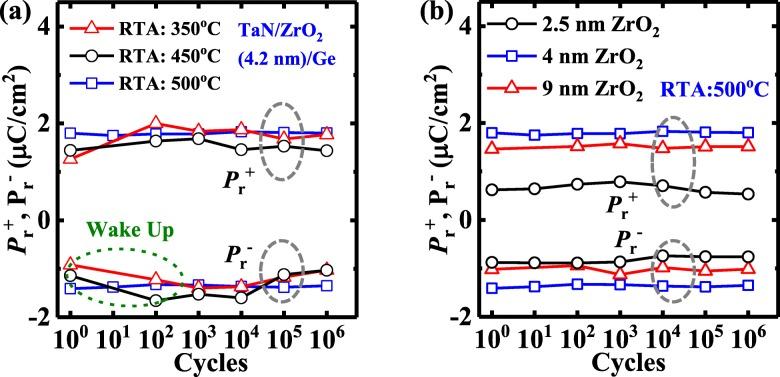

This paper investigates the impacts of post-rapid thermal anneal (RTA) and thickness of ZrO on the polarization P and electrical characteristics of TaN/ZrO/Ge capacitors and FeFETs, respectively. After the RTA ranging from 350 to 500 °C, TaN/ZrO/Ge capacitors with 2.5 and 4 nm-thick amorphous ZrO film exhibit the stable P. It is proposed that the ferroelectric behavior originates from the migration of the voltage-driven dipoles formed by the oxygen vacancies and negative charges. FeFETs with 2.5 nm, 4 nm, and 9 nm ZrO demonstrate the decent memory window (MW) with 100 ns program/erase pulses. A 4-nm-thick ZrO FeFET has significantly improved fatigue and retention characteristics compared to devices with 2.5 nm and 9 nm ZrO. The retention performance of the ZrO FeFET can be improved with the increase of the RTA temperature. An MW of ~ 0.46 V is extrapolated to be maintained over 10 years for the device with 4 nm ZrO.
本文分别研究了快速热退火（RTA）后处理以及ZrO厚度对TaN/ZrO/Ge电容器和铁电场效应晶体管（FeFET）的极化P和电学特性的影响。在350至500°C的RTA处理后，具有2.5纳米和4纳米厚非晶ZrO薄膜的TaN/ZrO/Ge电容器表现出稳定的P。研究表明，铁电行为源于由氧空位和负电荷形成的电压驱动偶极子的迁移。具有2.5纳米、4纳米和9纳米ZrO的FeFET在100纳秒编程/擦除脉冲下表现出良好的记忆窗口（MW）。与具有2.5纳米和9纳米ZrO的器件相比，具有4纳米厚ZrO的FeFET的疲劳和保持特性得到了显著改善。ZrO FeFET的保持性能可随着RTA温度的升高而提高。对于具有4纳米ZrO的器件，预计约0.46伏的MW可在10年内保持。
