Huang Sheng-Yao, Hsu Jung-Lung, Lin Kun-Ju, Hsiao Ing-Tsung
Department of Medical Imaging and Radiological Sciences, Healthy Aging Research Center, Taoyuan, Taiwan.
Molecular Medicine Research Center, Chang Gung University, Taoyuan, Taiwan.
Front Neurosci. 2020 May 12;14:344. doi: 10.3389/fnins.2020.00344. eCollection 2020.
Metabolic brain network analysis based on graph theory using FDG PET imaging is potentially useful for investigating brain activity alternation due to metabolism changes in different stages of Alzheimer's disease (AD). Most studies on metabolic network construction have been based on group data. Here a novel approach in building an individual metabolic network was proposed to investigate individual metabolic network abnormalities.

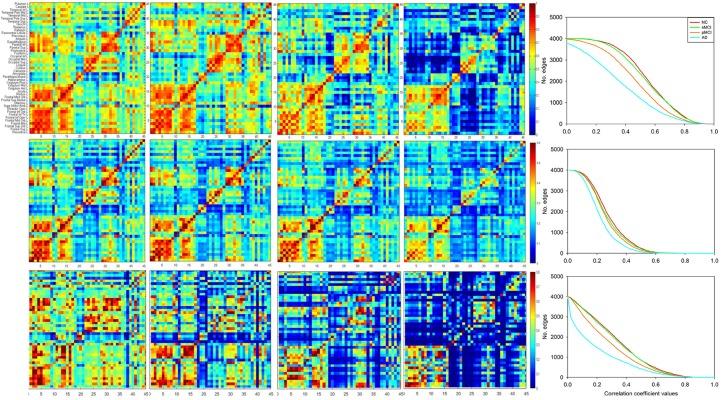

First, a weighting matrix was calculated based on the interregional effect size difference of mean uptake between a single subject and average normal controls (NCs). Then the weighting matrix for a single subject was multiplied by a group-based connectivity matrix from an NC cohort. To study the performance of the proposed individual metabolic network, inter- and intra-hemispheric connectivity patterns in the groups of NC, sMCI (stable mild cognitive impairment), pMCI (progressive mild cognitive impairment), and AD using the proposed individual metabolic network were constructed and compared with those from the group-based results. The network parameters of global efficiency and clustering coefficient and the network density score (NDS) in the default-mode network (DMN) of generated individual metabolic networks were estimated and compared among the disease groups in AD.

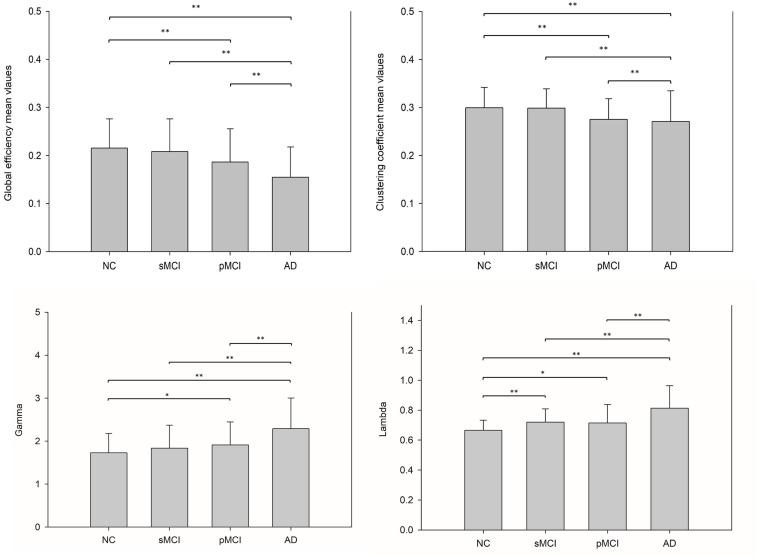

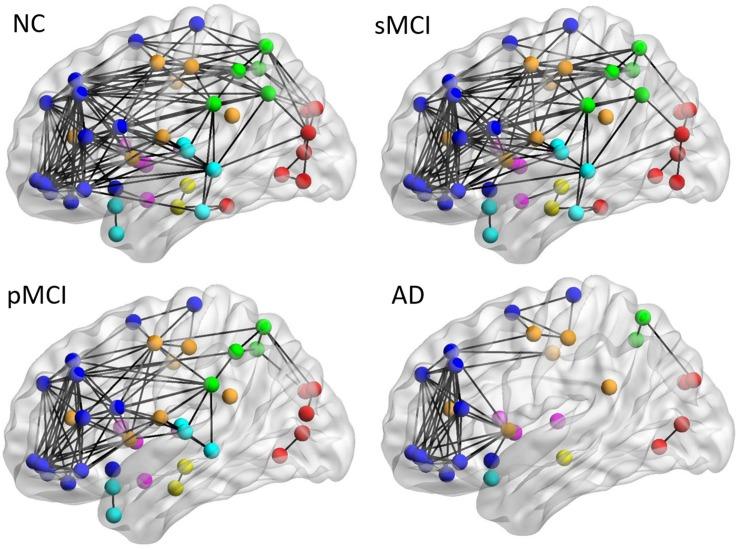

Our results show that the intra- and inter-hemispheric connectivity patterns estimated from our individual metabolic network are similar to those from the group-based method. In particular, the key patterns of occipital-parietal and occipital-temporal inter-regional connectivity deficits detected in the groupwise network study for differentiating different disease groups in AD were also found in the individual network. A reduction trend was observed for network parameters of global efficiency and clustering coefficient, and also for the NDS from NC, sMCI, pMCI, and AD. There was no significant difference between NC and sMCI for all network parameters.
We proposed a novel method in constructing the individual metabolic network using a single-subject FDG PET image and a group-based NC connectivity matrix. The result has shown the effectiveness and feasibility of the proposed individual metabolic network in differentiating disease groups in AD. Future studies should include investigation of inter-individual variability and the correlation of individual network features to disease severities and clinical performance.
基于图论利用氟代脱氧葡萄糖正电子发射断层扫描(FDG PET)成像进行代谢脑网络分析,对于研究阿尔茨海默病(AD)不同阶段代谢变化所导致的脑活动改变可能具有重要意义。大多数关于代谢网络构建的研究都基于群体数据。在此,我们提出了一种构建个体代谢网络的新方法,以研究个体代谢网络异常情况。
首先,基于单个受试者与平均正常对照(NC)之间平均摄取的区域间效应大小差异计算权重矩阵。然后,将单个受试者的权重矩阵与来自NC队列的基于群体的连接矩阵相乘。为了研究所提出的个体代谢网络的性能,利用所提出的个体代谢网络构建了NC、稳定轻度认知障碍(sMCI)、进展性轻度认知障碍(pMCI)和AD组的半球间和半球内连接模式,并与基于群体的结果进行比较。估计并比较了生成的个体代谢网络在默认模式网络(DMN)中的全局效率、聚类系数等网络参数以及网络密度评分(NDS)在AD疾病组之间的差异。
我们的结果表明,从我们的个体代谢网络估计的半球内和半球间连接模式与基于群体的方法相似。特别是,在用于区分AD不同疾病组的组水平网络研究中检测到的枕叶 - 顶叶和枕叶 - 颞叶区域间连接缺陷的关键模式,在个体网络中也被发现。全局效率、聚类系数以及NC、sMCI、pMCI和AD的NDS的网络参数均呈现出下降趋势。所有网络参数在NC和sMCI之间没有显著差异。
我们提出了一种利用单受试者FDG PET图像和基于群体的NC连接矩阵构建个体代谢网络的新方法。结果表明所提出的个体代谢网络在区分AD疾病组方面具有有效性和可行性。未来的研究应包括个体间变异性的研究以及个体网络特征与疾病严重程度和临床表型的相关性研究。
